    Continental Industrial Air Springs FS 530-14 CI G 3/4 OS Cross Goodyear 1B14-372 Load More Than 5 Tons

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1B14-372
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Continental Industrial Air Springs FS 530-14 CI G 3/4 OS Cross Goodyear 1B14-372 Load More Than 5 Tons

    Continental Industrial Air Springs FS 530-14 CI G 3/4 OS Cross Goodyear 1B14-372 Load More Than 5 Tons


    OEM cross Air Springs FS 530-14


    Contitech NO.:FS 530-14;
    Contitech NO.:FS53014;
    Contitech NO.:FS530-14

    Contitech NO.:FS 530-14 CI G 3/4
    Contitech NO.:FS 53014 CI G 3/4
    Contitech NO.:FS 530 14 CI G 3/4

    Continental Part Number:FS 530-14;

    Continental Part Number:FS53014;

    Continental Part Number:FS530-14

    Continental Part Number:FS 530-14 CI G 3/4

    Continental Part Number:FS 53014 CI G 3/4

    Continental Part Number:FS 530 14 CI G 3/4


    Goodyear part number:1B14-372 ;
    Goodyear part number:1B14 372;
    Goodyear part number:1B14372

    Goodyear Bellows 578 912 372;
    Goodyear Bellows 578912372;
    Goodyear Bellows 578-91-2-372
    Firestone Part Number:W01-M58-6369
    Firestone Part Number:W01M586369
    Firestone Part Number:W01 M58 6369
    Contitech:FS 530-14 CI G 3/4
    Contitech:FS530-14 CI G 3/4


    Air Springs FS 530-14 Specifications and Technical Data


    Compression heightAir inlet
    2.01 inchG 3/4
    Maximum unfolded heightseries
    7.28 inchC
    The maximum diameterlowest temperature
    15.9 inch-76°F
    Maximum inflation pressuremaximum temperature
    120 psi158°F
    Maximum strokeAir Bellows type
    5.27 inchsingle convolution
    Air intake typeweight
    empire13.4 lbs.

    nuts/blind nuts

    Upper cover screw (nut) teeth: 4 X M8

    Top plate screw center distance: 158.8 mm

    Screw (nut) teeth of the bottom cover plate: 4 x M8

    The screw center distance of the bottom cover plate: 158.8 mm

    The air hole distance between the nuts is 79.4 mm


    Ga air hole/air inlet/air fitting

    Air hole/air inlet: 3/4 N P.T.F.


    over cover

    Top plate diameter (width): 289mm

    Diameter (width) of the bottom cover plate: 289 mm


    Bell rubber bellows

    Rubber bellows natural diameter 380 mm

    Maximum diameter of rubber bellows: 406 mm

    Natural height of rubber bellows: 120 mm

    Working stroke: maximum 160 mm to minimum 81 mm


    B bumper block/buffer block

    No bumper block

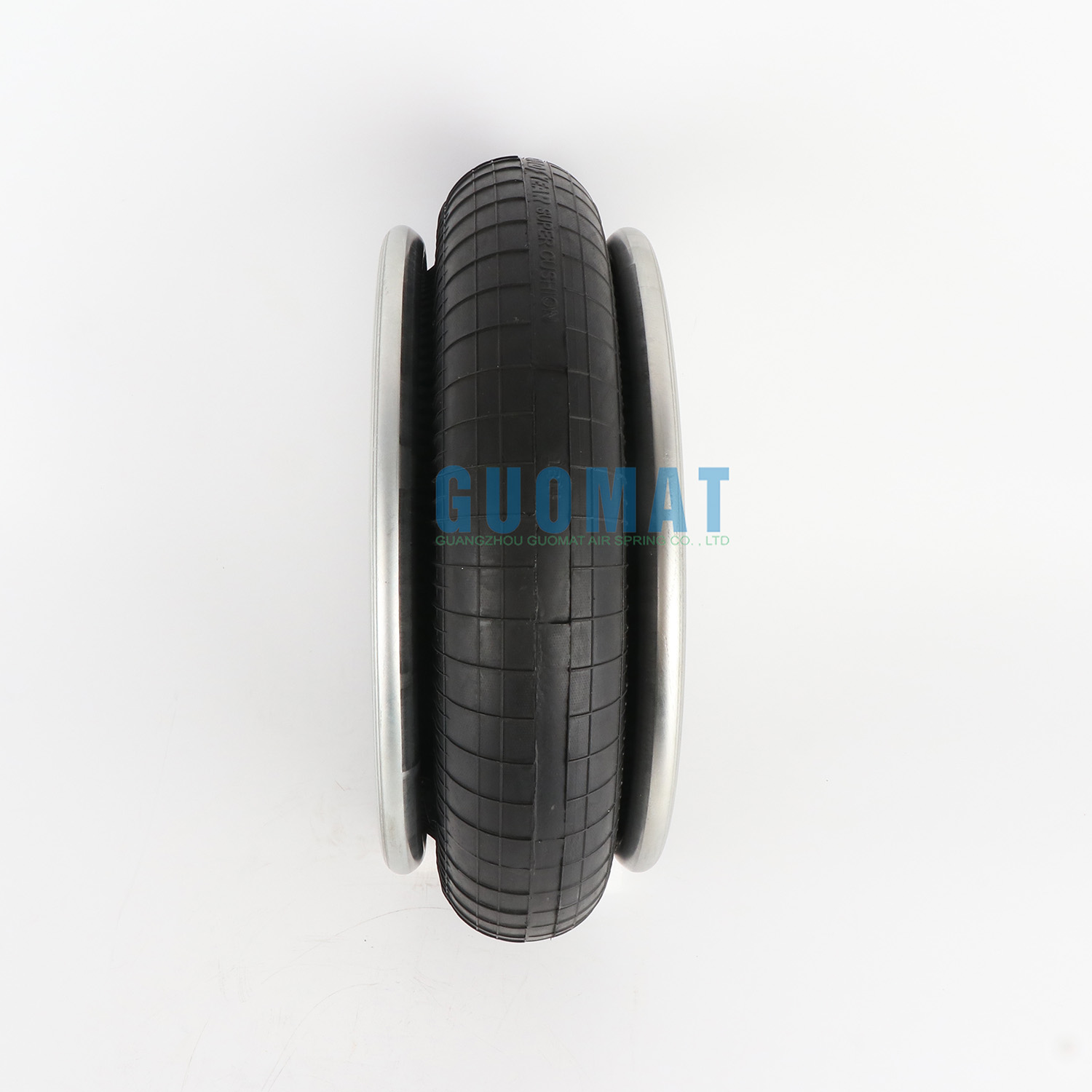

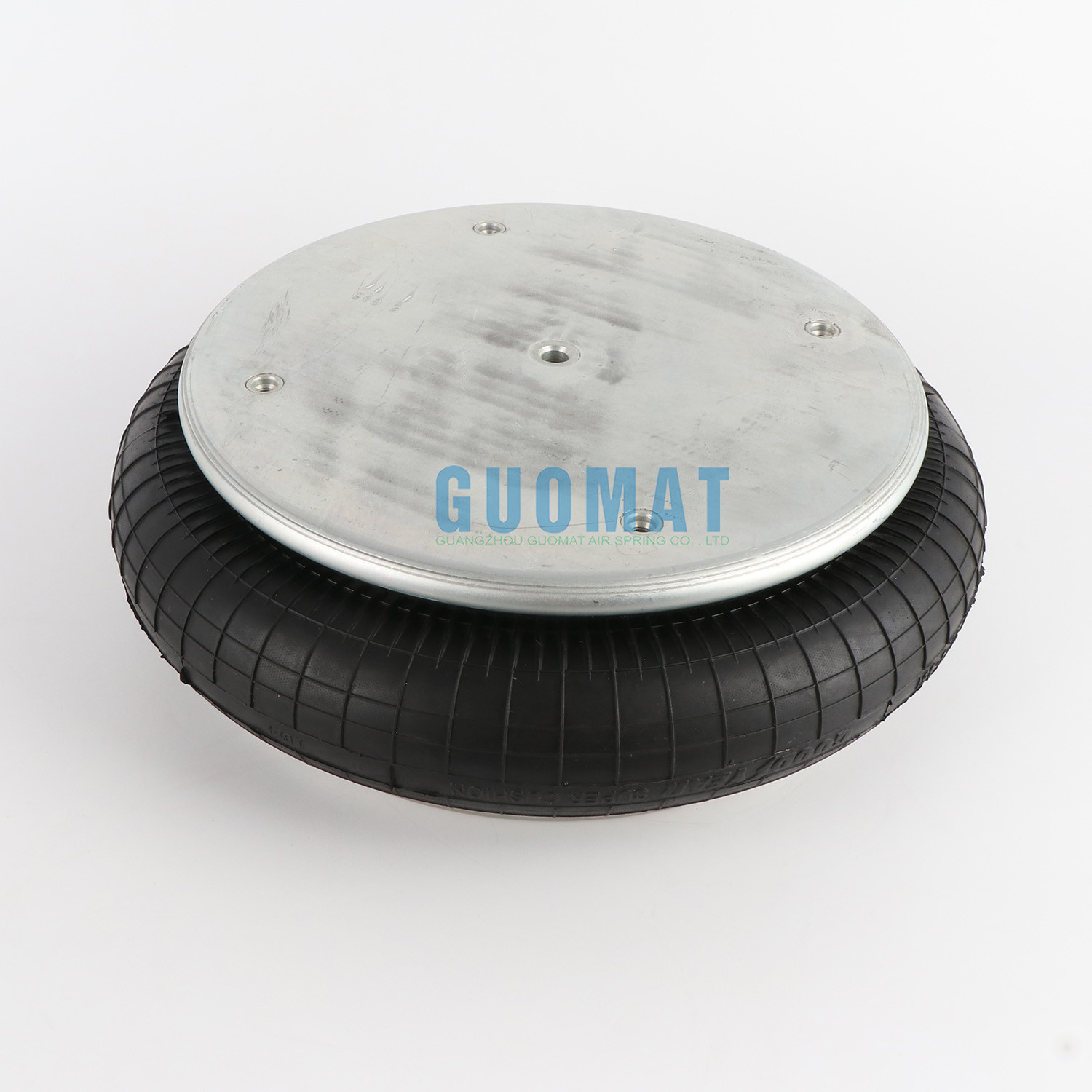

    The detail photos of Goodyear 1B14-372


    Continental Industrial Air Springs FS 530-14 CI G 3/4 OS Cross Goodyear 1B14-372 Load More Than 5 Tons
    Continental Industrial Air Springs FS 530-14 CI G 3/4 OS Cross Goodyear 1B14-372 Load More Than 5 Tons


    Other kinds of goodyear air springs:

    1B14-364 EXT
    578912364000041B14-36420094326N1B14-3641B14-364
    578912364000195789123640001920094327YENIDINE YI-1B14-364ENIDINE YI-1B14-364
    578912368000945789123680009420811431YC 1B14-352C 1B14-352
    578912371000005789123710000020094334Y1B14-3711B14-371
    578912371000195789123710001920094335YENIDINE YI-1B14-371ENIDINE YI-1B14-371
    578912372000191B14-37220106777Y1B14-3721B14-372
    578912373000005789123730000020140234Y1B14-3731B14-373
    578912373000041B14-37320140235N1B14-373 Bellows Air Spring1B14-373 Bellows Air Spring
