OEM Original Equipment Manufacturer:

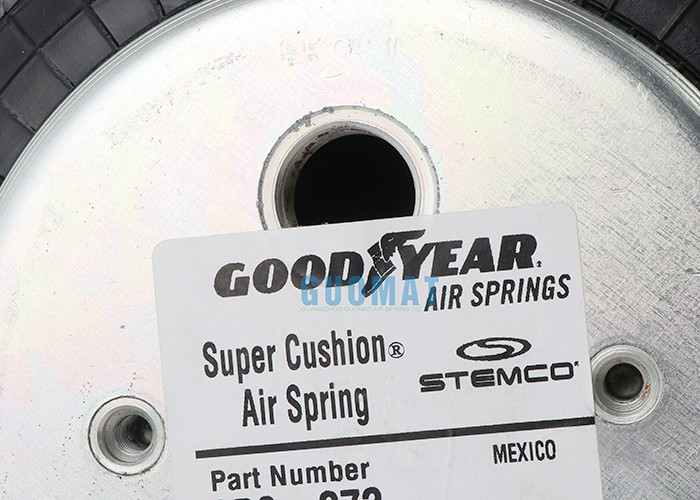

2B9-273 Goodyear Specifications and Technical Data
Goodyear Part Number: 2B9-273;
Goodyear Part Number:2B9 273;
Goodyear Part Number:12B9273
Goodyear Bellows Number:1578-92-3-202;
Goodyear Bellows Number:57892 3;
Goodyear Bellows Number:578923202
Goodyear Flexmember: 578-92-3-202;
Goodyear Flexmember:57892 3;
Goodyear Flexmember:578923202
Firestone Part Number:W01-M58-6183
Firestone Part Number:W01 M58 6183
Firestone Part Number:W01M586183
ContiTech Part Number:FD 200-25 CI G 1/4
ContiTech Part Number:FD 200 25 CI G 1/4
ContiTech Part Number:FD 20025 CI G 1/4
ContiTech Part Number:FD 200-25
ContiTech Part Number:FD 200 25
ContiTech Part Number:FD 20025
Manufacturer Part Number: 2B9-273
About Goodyear air springs:
Goodyear air springs are highly durable, sophisticated and
cost-effective for a variety of drive and vibration isolation
applications. Goodyear air springs feature a time-tested design
that combines fabric-reinforced cord or natural rubber flexible
member construction with corrosion-resistant end iron plate cover
retainers to provide superior quality and performance. As
corrective actuators, Goodyear air springs can provide linear or
angular motion.
Goodyear offers a variety of air spring and air shock absorber
types to suit your actuation or isolation needs. Single, double and
triple convolution bellows, rolling cam and sleeve types are
available in a variety of sizes, and end retainer styles need to
fit your specific installation.
These air springs (air shock absorbers) offer a favorable
stroke-to-compression height ratio compared to cylinder or steel
springs, and they can accept various drive media such as air,
water, nitrogen or other liquids. As isolators, Goodyear air
springs can effectively reduce the adverse effects of vibration.
They can both isolate vibrations and adjust the load height. Allows
for consistent vibration isolation under different loads as the air
pressure varies.
Technical Data:
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX M8
Bottom cover screw (nut) teeth: 2pcsX M8
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 1/4 NPT
bellows type industrial air spring,
double scroll,
effective area 200cm square,
maximum stroke 25cm,
crimping pressure plate,
internal thread, G1/4 BSPP, offset
Manufacturer: Goodyear
Maximum inflation pressure
120 psi
Air inlet type
Metric
Air inlet
1/4"
series
C
Bellows type
Double convolution
weight
7.76 lbs
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
Vibration isolation - dynamic characteristic values
Design height H: recommended 210mm, minimum 195mm |
Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
Force (Load) [kN] | 5.2 | 7.1 | 9 | 10.7 | 12.4 | 14.5 | |
Spring rate [N/mm] | 79.5 | 103 | 126.5 | 150 | 173.5 | 197 | 5.9 |
Natural frequency [Hz] | 2.0 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | |
Pneumatic application - static characteristic values
Force F [kN] |
Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
Height H [mm] | 230 | 4.21 | 5.7 | 7.2 | 8.73 | 10.3 | 12 | 6.4 |
200 | 5.8 | 7.78 | 9.74 | 11.7 | 13.8 | 15.9 | 5.7 |
170 | 6.96 | 9.3 | 11.7 | 14.1 | 16.5 | 19 | 5 |
140 | 7.86 | 10.5 | 13.2 | 15.8 | 18.5 | 21.3 | 4.1 |
110 | 8.52 | 11.4 | 14.2 | 17.1 | 19.9 | 22.9 | 3.4 |
80 | 9.07 | 12 | 15 | 18 | 21 | 24.1 | 2.5 |
