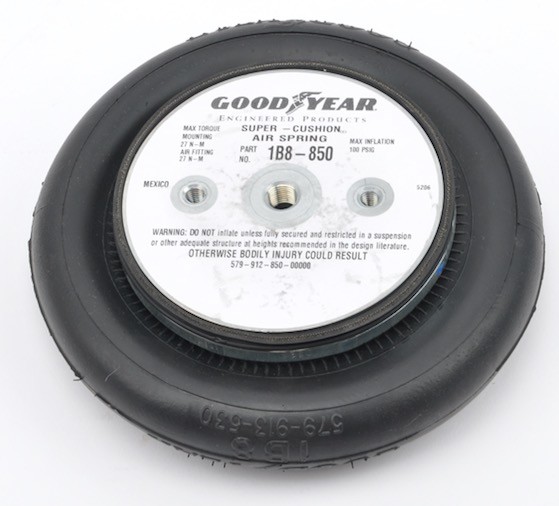

    Continental Single Convoluted Air Spring FS 120-10 CI G 1/4 Goodyear Bellows 579913530 Air Actuator

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1B8-850
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Continental Single Convoluted Air Spring FS 120-10 CI G 1/4 Goodyear Bellows 579913530 Air Actuator

    Continental Single Convoluted Air Spring FS 120-10 CI G 1/4 Goodyear Bellows 579913530 Air Actuator


    Goodyear 1B8-850 Cross other OEM:


    Contitech Part number:FS 120-10 CI G 1/4;

    Contitech Part number:FS 120 10 CI G 1/4;

    Contitech Part number:FS120 10 CI G 1/4


    Contitech Part number:FS 120-10

    Contitech Part number:FS 120 10

    Contitech Part number:FS120 10


    Continental Part number:FS 120-10 CI G 1/4;


    Continental Part number:FS 120 10 CI G 1/4;


    Continental Part number:FS120 10 CI G 1/4


    Continental Part number:FS 120-10


    Continental Part number:FS 120 10


    Continental Part number:FS120 10


    Goodyear Part number:1B8-850,

    Goodyear Part number:1B8 850,

    Goodyear Part number:1B8850,

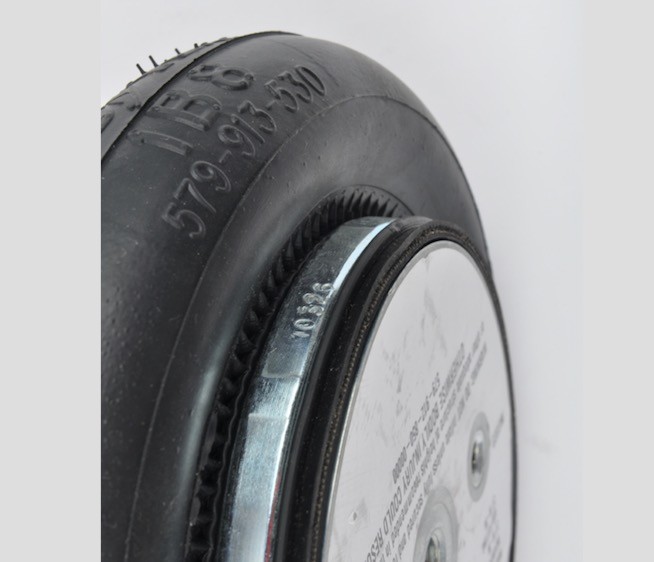

    Goodyear Bellows number:579-91-3-530

    Goodyear Bellows number:579 91 3 530

    Goodyear Bellows number:579913530


    Firestone Part number:W01-M58-6166

    Firestone Part number: W01M586166,

    Firestone Part number:W01-M58-6166

    Firestone Part number:W01-M58-6166,W01M586166,WO1-M58-6166,WO1M586166


    Goodyear 1B8-850 Specifications and Technical Data


    Industrial bellows actuator
    116B 1/4 BSP
    2BN M8
    79 Stroke
    2-layer standard line

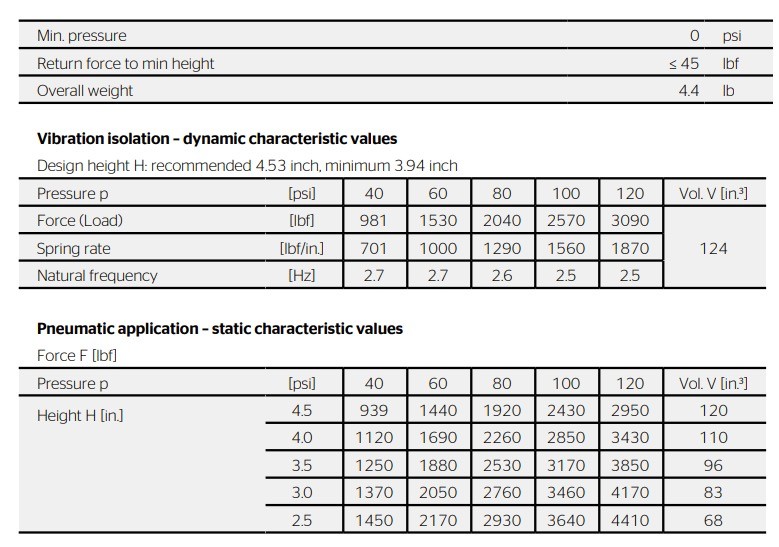

    Min. pressure 0 psi
    Return force to min height ≤ 45 lbf
    Overall weight 4.4 lb
    Vibration isolation – dynamic characteristic values
    Design height H: recommended 4.53 inch, minimum 3.94 inch
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    Force (Load) [lbf] 981 1530 2040 2570 3090
    Spring rate [lbf/in.] 701 1000 1290 1560 1870 124
    Natural frequency [Hz] 2.7 2.7 2.6 2.5 2.5
    Pneumatic application – static characteristic values
    Force F [lbf]
    Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
    Height H [in.] 4.5 939 1440 1920 2430 2950 120
    4.0 1120 1690 2260 2850 3430 110
    3.5 1250 1880 2530 3170 3850 96
    3.0 1370 2050 2760 3460 4170 83
    2.5 1450 2170 2930 3640 4410 68

    Continental Single Convoluted Air Spring FS 120-10 CI G 1/4 Goodyear Bellows 579913530 Air Actuator

    Continental Single Convoluted Air Spring FS 120-10 CI G 1/4 Goodyear Bellows 579913530 Air ActuatorContinental Single Convoluted Air Spring FS 120-10 CI G 1/4 Goodyear Bellows 579913530 Air Actuator


    Other kinds of goodyear air springs:


    Goodyear Air Spring OE NO.

    Goodyear Air Spring

    OE Bellows NO.

    Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
    1B8-564 Bellows Air Spring1B8-56420449825N1B8-564 Bellows Air Spring
    ENIDINE YI-1B8-5645799125640001920095534YENIDINE YI-1B8-564
    1B8-564 INTERNATIONAL 3547005C15799125640004220141113Y1B8-564 INTERNATIONAL 3547005C1
    1B8-5651B8-56520248442N1B8-565
    C 1B8-5605799125670009020810735YC 1B8-560
    P 1B8-5605799125680009120810607YP 1B8-560
    P 1B8-5505799125690009120811403YP 1B8-550
    C 1B8-5625799125700009020811604YC 1B8-562
    C 1B8-5645799125710009020811605YC 1B8-564
    C 1B8-8505799125720009020811606YC 1B8-850
    C 1B8-5505799126270009020806174YC 1B8-550
    1B5-8001B5-80020469101N1B5-800
    ENIDINE YI-1B5-8005799128000001920095537YENIDINE YI-1B5-800
    GOODYEAR 1B5-8015799128010000020607917YGOODYEAR 1B5-801
    ENIDINE YI-1B5-8015799128010001920095538YENIDINE YI-1B5-801
    1B5-8101B5-81020254245N1B5-810
    ENIDINE YI-1B5-8105799128100001920095539YENIDINE YI-1B5-810
    ENIDINE YI-1B5-8205799128200001920095540YENIDINE YI-1B5-820
    ENIDINE YI-1B5-8215799128210001920224307YENIDINE YI-1B5-821
    ENIDINE YI-1B6-8315799128310001920095541YENIDINE YI-1B6-831
