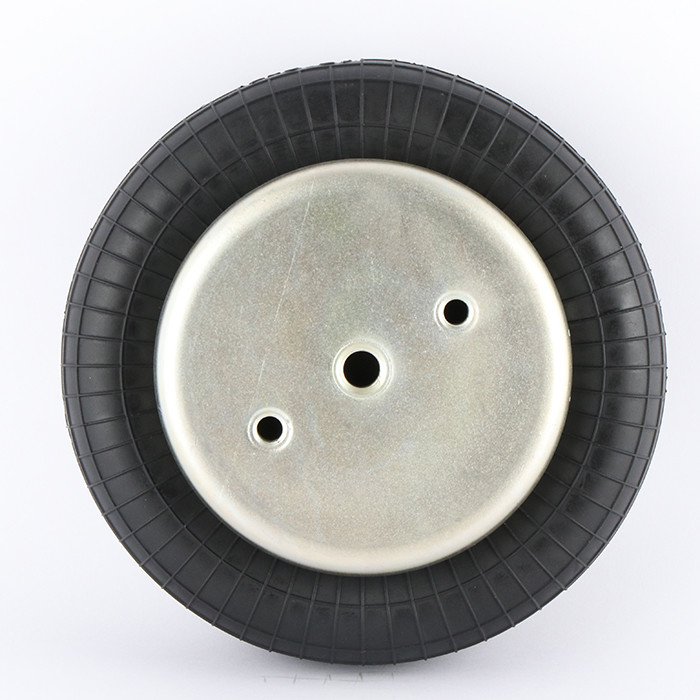

    Goodyear 1B8-550 Air Spring Actuator Airsustech 1B8X4 Bellow No. 1B 550

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8X4
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Goodyear 1B8-550 Air Spring Actuator Airsustech 1B8X4 Bellow No. 1B 550

    Goodyear 1B8-550 Air Spring Actuators AIRSUSTECH 1B8X4 Bellow No. 1B 550


    AIRSUSTECH1B8X4 Cross other OEM:


    AIRSUSTECH1B8X4Firestone Style 116
    Goodyear Part Number:1B8-550Contitech:FS120-10
    Goodyear Part Number:1B8 550Contitech:FS120 10
    Goodyear Part Number:1B8 550Contitech:FS12010
    Contitech Part Number:FS 120-10 CIFirestone Part Number:W01-358-7564
    Contitech Part Number:FS120-10 CIFirestone Part Number:W01 358 7564
    Contitech Part Number:FS 120 10 CIFirestone Part Number:W013587564
    Continental Part Number:FS 120-10 CIFirestone Rubber bellows only:W01-358-0133
    Continental Part Number:FS120-10 CIFirestone Rubber bellows only:W01 358 0133
    Continental Part Number:FS 120 10 CIFirestone Rubber bellows only:W013580133

    Enidine Part Number:YI1-B8-550

    Enidine Part Number:YI1 B8-550

    Enidine Part Number:YI1B8550


    Product Description


    Technical Data

    • Min. pressure - 0 psi
    • Return force to min. height - <45LBF/200N
    • Overall Weight - 2.4KG
    • Min. Design Height - 50MM
    • Inst.Space Required - 140MM
    • Max. Stroke - 90MM

    Description
    Assembly Order No.
    Style 116 Two Ply Bellows
    Blind nuts, 1/4 NPT:W01-358-7564;W01 358 7564;W013587564
    Blind nuts, 3/4 NPT:W01-358-7561;W01 358 7561;W013587561
    Countersunk steel bead rings,19/4 bolts, nuts, washers:W01-358-7568;W01 358 7568;W013587568
    Blind nuts with installed 1/4 tank valve W01-A72-7518;W01 A72 7518;W01A727518
    Rubber bellows only:W01-358-0133;W01 358 0133;W013580133

    Style 117 High Bellows
    Blind nuts, 1/4 NPT:W01-358-7600;W01 358 7600;W013587600
    Blind nuts, 3/4 NPT:W01-358-7602;W01 358 7602;W013587602
    Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:W01-358-7606;W01 358 7606;W013587606


    Technical performance parameter list of AIRSUSTECH 1B8X4 air spring:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    55(mm)43366489711311354158518221.11
    78(mm)39659880310151236144116471.34
    101(mm)314471646820996117513211.47
    124(mm)2083184345556757989201.79
    130(mm)1672583484385356367331.86
    147(mm)56961331792262743312.04
    149(mm)194164931261642082.08
    155(mm)210204151801002.15
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)132170182203230268285
    Stiffness and frequency at design heightNatural frequency Hz4.454.063.623.43.283.253.12
    Stiffness and frequency at design heightNatural frequency cpm267244217204197195187

    PURCHASE ORDER DATA


    TypeAir InletOrder No.
    with crimped plates

    1/4 NPT

    0 in. excentrical


    Goodyear 1B8-550 Air Spring Actuator Airsustech 1B8X4 Bellow No. 1B 550Goodyear 1B8-550 Air Spring Actuator Airsustech 1B8X4 Bellow No. 1B 550Goodyear 1B8-550 Air Spring Actuator Airsustech 1B8X4 Bellow No. 1B 550
