    Goodyear 578913201 Airsustech 1B202 Bellow Air Bags Front And Rear

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B9X5
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Goodyear 578913201 Airsustech 1B202 Bellow Air Bags Front And Rear

    Air Spring Actuator Goodyear 578913201 AIRSUSTECH 1B202 Bellow Air Bags


    OEM Original Equipment Manufacturer:


    AIRSUSTECH part number:1B9X5ENIDINE part number:YI-1B9-202
    AIRSUSTECH Bellows number:1B202ENIDINE part number:YI 1B9 202
    AIRSUSTECH Bellows number:11B 202Enidine part number:YI1B9-202
    Goodyear part number:1B9-202Other part number:1B5060
    Goodyear part number:1B9 202Other part number:1B202
    Goodyear part number:1B9202Other part number:1B 202
    Goodyear Bellows number:578913201Other part number:1B 5060
    Goodyear Bellows number:578-91-3-201Other part number:1E9x5
    Goodyear Bellows number:578 91 3 201Other part number:1E 9x5

    SIZE OF AIRSUSTECH part number:1B9X5


    Nuts/Blind Nuts

    Top Cover Plate Screw (Nut) Teeth: 2 pcs X 3/8-16UNC

    Top cover screw center distance : 89 mm

    Bottom Cover Plate Screw (Nut) Teeth: 2 pcs X 3/8-16UNC

    Bottom cover screw center distance : 89 mm


    Air holes/air inlets/air fittings

    Air hole/air inlet: 1/4NPT

    Center distance between nut and air inlet: 44.5 mm


    cover plate

    Top cover plate diameter (width): 160 mm

    Bottom cover diameter (width): 160 mm


    Rubber bellows

    Diameter of rubber bellows: 222 mm

    Compressed Height: 100mm/4.1"

    Maximum height: 160mm

    Working stroke : 60 mm


    Buffer block/buffer block

    without bumper


    Waist Ring / Waist Ring

    Belt Belt: No Belt


    Stroke2.90 inches
    Height range4-1 / 2 to 5 inches
    Spring styleSingle spin
    Forced at a maximum stroke of 100 psi2850 lb
    Load range is 100 psi3200 to 3900 pounds
    Bumper typenot any
    Port thread type1/4 UNC
    System natural frequency2.50 Hz
    100 psi diameter11 inches
    End plate diameter6.4 inches
    Tap pitch3-1 / 2 inches
    Port thread standardUNC

    SPRING FEATURES

    LOAD RANGE(ISOLATOR)........

    .640-3900|b

    DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

    USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

    USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

    ASSEMBLY WE I GHT

    FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

    NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in


    ASSEMBLY NUMBERELASTOMERAIR FITTINGBUMPER INCLUDED
    1B9-202NAT. RUBBER1/4"-18 NPTF OFFSET 1.75"NO
    1B9-201NAT. RUBBER1/4"-18 NPTF OFFSET 1.75"YES
    1B9-204NAT. RUBBER1/2"-14 NPTF OFFSET 1.75"NO
    1B9-205NAT. RUBBER1/2"-14 NPTF OFFSET 1.75"YES
    1B9-207NAT. RUBBER3/4"-14 NPTF OFFSET 1.5"NO
    1B9-208NAT. RUBBER3/4"-14 NPTF OFFSET 1.5"YES
    578913201 FLEXMEMBER NAT. RUBBER ONLYNAT. RUBBER

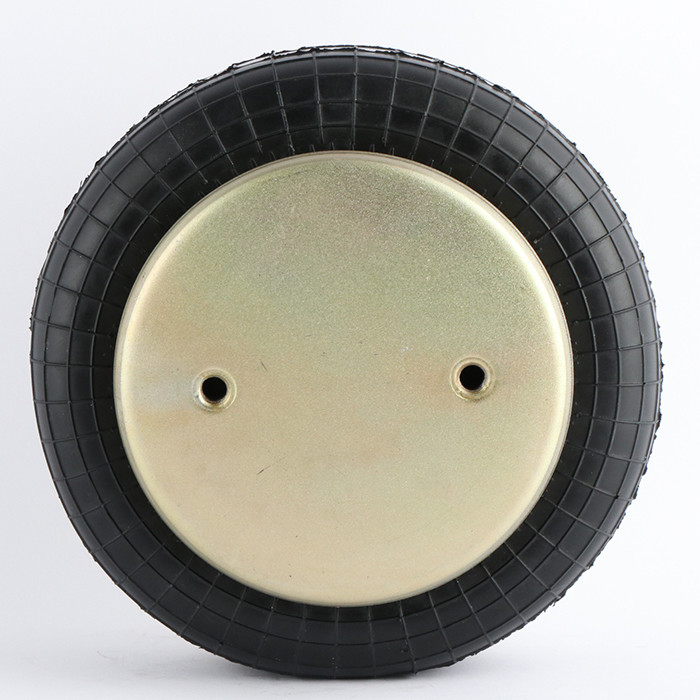

    The real photots of 1B9X5 air spring:


    Goodyear 578913201 Airsustech 1B202 Bellow Air Bags Front And RearGoodyear 578913201 Airsustech 1B202 Bellow Air Bags Front And RearGoodyear 578913201 Airsustech 1B202 Bellow Air Bags Front And Rear


    Other kinds of goodyear air springs:


    Goodyear Air Spring OE NO.

    Goodyear Air Spring

    OE Bellows NO.

    Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
    1B9-2015789122010000020054257Y1B9-201
    1B9-2011B9-20120116161N1B9-201
    ENIDINE YI-1B9-2015789122010001920094261YENIDINE YI-1B9-201
    1B9-2025789122020000020094262Y1B9-202
    1B9-2021B9-20220116162Y1B9-202
    ENIDINE YI-1B9-2025789122020001920094263YENIDINE YI-1B9-202
    1B9-2045789122040000020094264Y1B9-204
    1B9-2041B9-20420116163N1B9-204
    ENIDINE YI-1B9-2045789122040001920094266YENIDINE YI-1B9-204
    1B9-2055789122050000020094267Y1B9-205
    1B9-2055789122050000420116164Y1B9-205
    ENIDINE YI-1B9-2055789122050001920094268YENIDINE YI-1B9-205
    1B9-2075789122070000020094269Y1B9-207
    1B9-2075789122070000420116165Y1B9-207
    ENIDINE YI-1B9-2075789122070001920094270YENIDINE YI-1B9-207
    1B9-2085789122080000020094271Y1B9-208
    1B9-2085789122080000420116166Y1B9-208
    ENIDINE YI-1B9-2085789122080001920094272YENIDINE YI-1B9-208
    1B9-2155789122150000020094277Y1B9-215
    ENIDINE YI-1B9-2155789122150001920094278YENIDINE YI-1B9-215
    1B9-2165789122160000020175039Y1B9-216
    1B9-2161B9-21620175183N1B9-216
    P 1B9-2025789122170009520805668YP 1B9-202
    C 1B9-2025789122180009420810946YC 1B9-202
    C 1B9-2075789122190009420811429YC 1B9-207
