OEM Original Equipment Manufacturer:
| Firestone | Goodyear |
| : W01-358-7008 | : 1B12-300/313 |
| Contitech | Triangle |
| : FS 330-11 474 | : 6374/4474 |
| Holland(Neway) : 90557226 |
| ContiTech Part Number: FS 330-11 474 | Firestone Part Number: W01-358-7008 / |
| ContiTech Part Number: FS330 -11474 | Firestone Part Number: W01 358 7008 / |
| ContiTech Part Number: FS33011474 | Firestone Part Number: W013587008 |
| ContiTech Part Number: FS 330-11CI | Firestone Styles: 19 |
| ContiTech Part Number: FS330-11CI | Goodyear Part Number: 1B12-313 |
| ContiTech Part Number: FS33011CI | Goodyear Part Number: 1B12 313 |
| ContiTech Part Number: FS 330-11 / | Goodyear Part Number: 1B12313 |
| ContiTech Part Number: FS330-11 / | Goodyear Flex No.: 578 91 3 301 |
| ContiTech Part Number: FS33011 | Goodyear Flex No.: 578913301 |
| FleetPride: AS 7008 / AS7008 | Goodyear Flex No.: 578-91-3-301 |
| Taurus: 6374 | Enidine: YI-FS 330-11 |
| Triangle: AS -4474 1 AS 4474 / AS4474 | Enidine: YI-FS 330-11 |
| TRP: AS 70080 1 AS70080 | Enidine: YI-FS 330-11 |
| Automann: SP1B22A-7008 1 SP1B22A 7008 / SP1B22A7008 | Numatics: ASNS51-3-1-2 / ASNS51 3 1 2 / ASNS51312 |

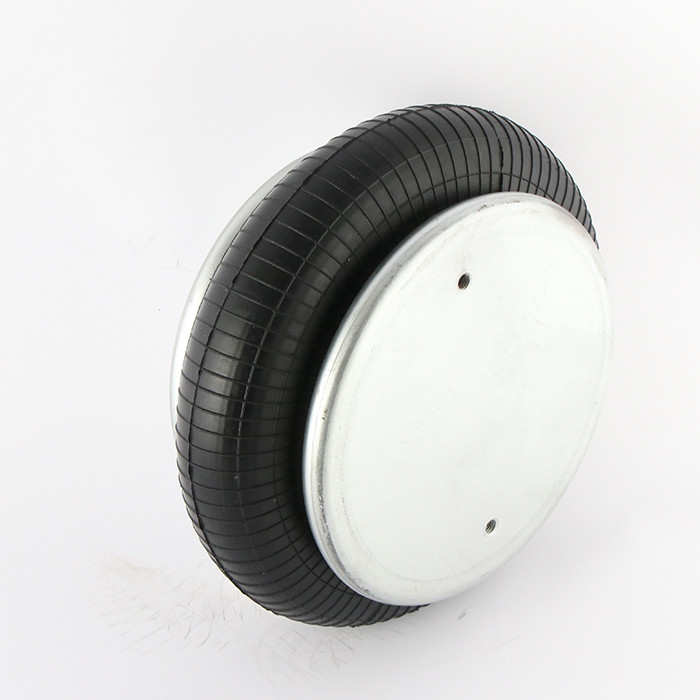

AIRSUSTECH 1B5530 Specifications and Technical Data
Compressed Height: 2.12
Top Cover Plate Diameter: 9.00 inches / 231mm
Bottom Piston Number: 3212 or 3183
Bottom Cover Plate Diameter: 9.00 inches / 231mm
Screw Center Distance : 157.5 mm
Distance Gas Hole Between Nut 73 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
Rubber Bellows Natural Diameter 300 mm
The Working Stroke : MAX 160 mm to MIN 55 mm
Compressed Height: 2.12 inches / 105 mm
Gas Hole / Air inlet : 1/4 N P.T.F.
| Type | Order No. | Type | Order No. |
| Rubber bellows only | 72539 | with crimped plates, G1 air inlet,A = 66 mm excentrical | 2681060000 |
| with crimped plates, G1/4 air inlet,A = 73 mm excentrical | 60424 | with stainless steel crimped plates, | G3/4 air inlet |
| with crimped plates, G3/4 air inlet,A = 73 mm excentrical | 62743 | A = 73 mm excentrical | 69583 |
1B5530 Vibration isolation - dynamic characteristic values Design height H: recommended 130mm, minimum 100mm |
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [kN] | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29 | 7 |
| Spring rate [N/mm] | 264.5 | 329 | 393.5 | 458 | 522.5 | 587 | 7 |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 | 7 |
1B5530 Pneumatic application - static characteristic values Force F [kN] |
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height H [mm] | 140 | 9.46 | 12.7 | 15.8 | 19.5 | 22.8 | 26 |
| 120 | 11.9 | 15.7 | 19.6 | 23.8 | 27.8 | 31.8 |
| 100 | 13.6 | 18.1 | 22.7 | 27.6 | 32.1 | 36.7 |
Air Spring Use on Industrial Applications
Air Spring provides solutions for vibration installation in a wide
range of machines. From technical design to coordination of various
system components. Air springs can be used in many applications to
effectively reduce the effects of vibration on the equipment.
Currently, more and more industrial equipment uses air springs.
GUOMAT air springs can achieve very low natural frequencies, from
0.5 to 3.5 Hz, depending on the type. With loads ranging from 0.5
kN to over 440 kN, air isolators provide efficient installation for
sensitive measuring instruments and heavy-duty foundations.
Industrial Equipments Such As
Papermaking equipment, large washing machine, water treatment
equipment, fitness equipment, punch press, leather draw machine,
automobile testing station, medical machinery, mining machinery,
etc.
