Air Spring Actuator W013587731 Bellow 131 Air Inlet 1/4NPT Max. 165 mm

AIRSUSTECH 1B7731 Cross OEM Original Equipment Manufacturer:

1B7731 Specifications and Detailed Technical Parameters

❶ Nut/Blind Nut

Top plate screw (nut) teeth: 2X 3/8-16UNC top cover
Screw center distance: 44.5mm Bottom cover
Screw (nut) teeth: 2X 3/8-16UNC
Screw center bottom cover distance: 44.5 mm

❷ Air hole/air inlet/air connector
Air hole/air inlet: 1/4NPTF
Screw center distance between air hole and nut: 22.25mm

❸Cover
Top plate diameter: 115 mm
Bottom cover diameter: 115 mm

❺Bell-shaped rubber bellows Rubber bellows
Maximum diameter: 165 mm rubber bellows
Natural diameter: 145 mm
Working stroke: min. 50 mm to max. 110 mm
Maximum height: 110 mm
Minimum height: 50 mm
Stroke height: 60 mm

Buffer block/buffer block
unbuffered block

❻ Belt loop / Belt loop
With hoop: without hoop

AIRSUSTECH 1B7731 can replace W013587731 Firestone Air Spring product description:

The air spring shock absorber AIRSUSTECH 1B7731 can replace W013587731 Firestone Air Spring can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B7731 can replace W013587731 Firestone Air Spring to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B7731 can replace W013587731 Firestone Air Spring must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B7731 can replace W013587731 Firestone Air Spring , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B7731 can replace W013587731 Firestone Air Spring shall not be in contact with other parts

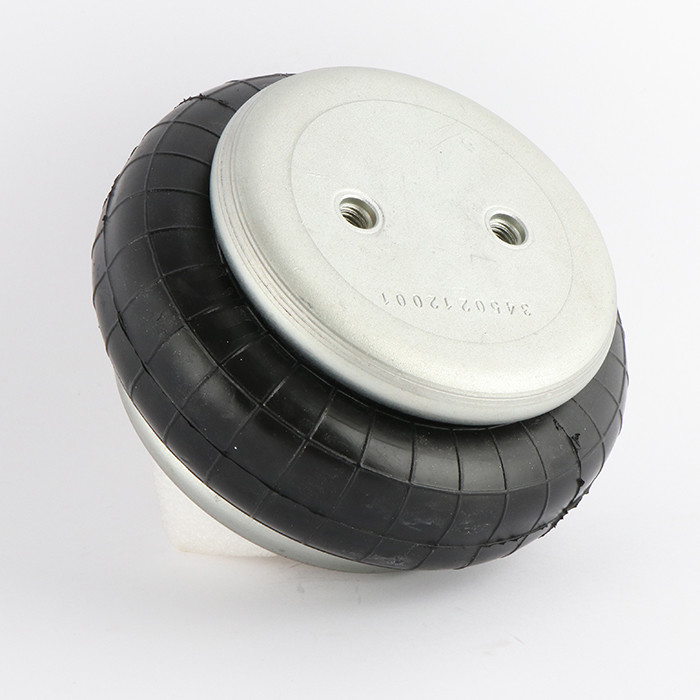

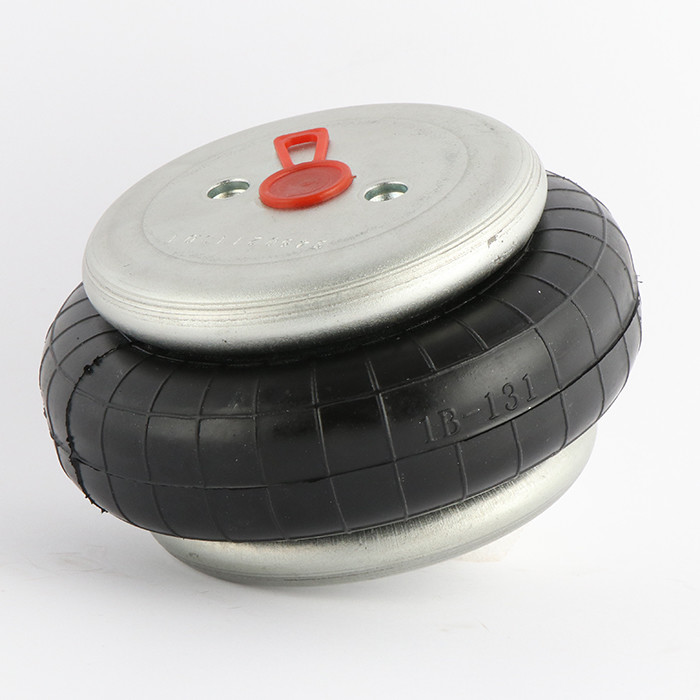

The real photos of AIRSUSTECH 1B7731 :

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.
