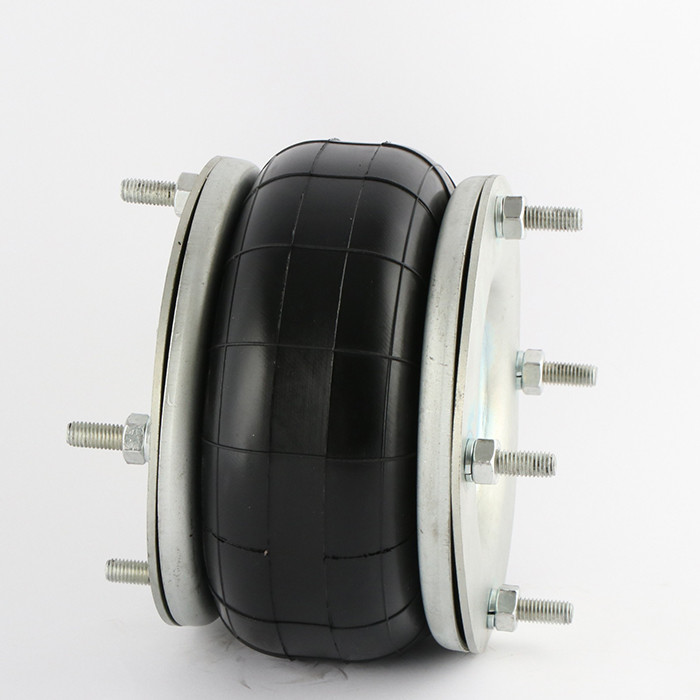

W01-R58-4054 Firestone Air Bags 8X1 Single Convoluted DUNLOP SP1637

AIRSUSTECH 1B8X1 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 1B8X1 Technical data

❶Nut/blind nut
Top plate screw (nut) teeth: 2XM8x1.25
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
The screw center distance of the bottom cover plate: 70 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: 1/2-18NPTF
The screw center distance between the air hole and the nut: 35 mm

❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 190 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50 mm
Stroke height: 90mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
With belt loop: not a belt loop

AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags product description:

The air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags shall not be in contact with other parts

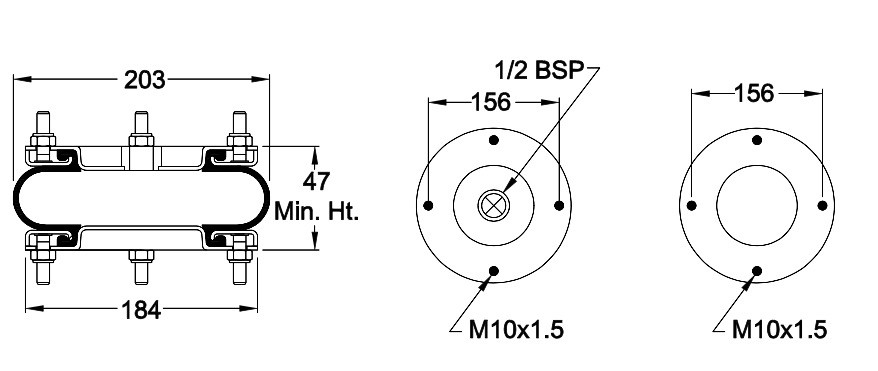

The drawing of AIRSUSTECH 1B8X1:
