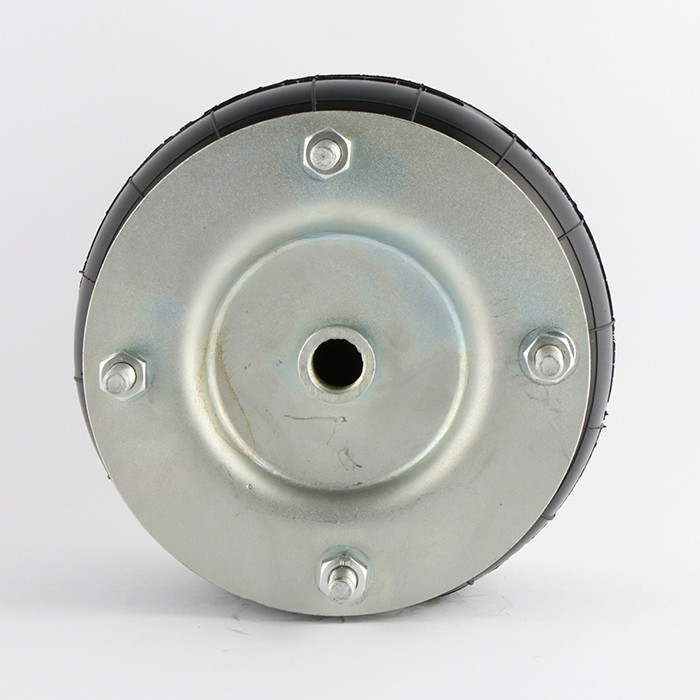

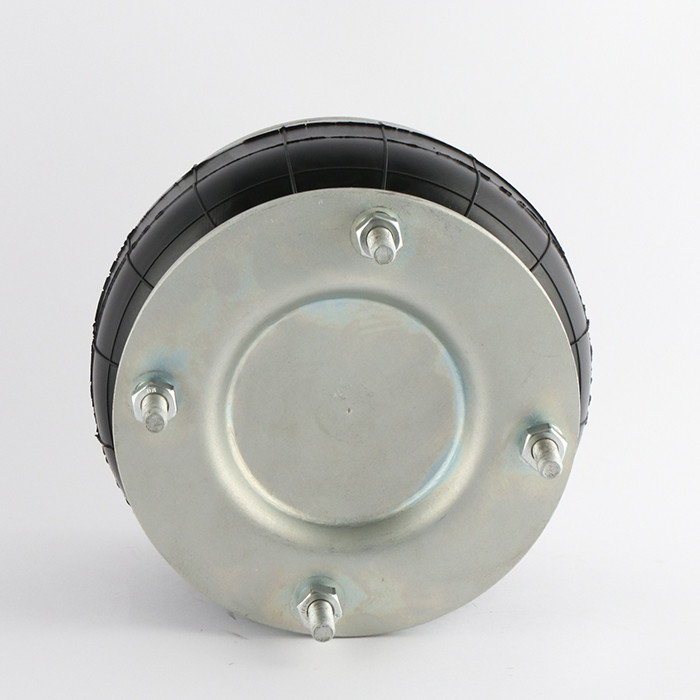

    203mm Dia. Dunlop Air Spring SP1637 Rubber Bellow 8"X1 One Convoluted

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B8X1
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    203mm Dia. Dunlop Air Spring SP1637 Rubber Bellow 8"X1 One Convoluted

    Dunlop Air Spring SP1637 Rubber Bellow 8"X1 Single Convoluted Natural Dia. 203mm


    Quick Details
    Model:Type:
    1B8X1Single convoluted air spring
    Year:Material:
    all year and 2002-2022Rubberl+steel
    OE NO.:Operation:
    1B8X1Gas-filled
    Machine Fitment:Function:
    All kindsReduce Shock /Reduce Vibration
    Warranty:Quality:
    12 months100% Tested and good Quality, no leaking
    Place of Origin:Payment:
    Guangdong, ChinaT/T,Trade Assurance,Paypal,Western Union
    Brand Name:Transportation:
    Airsustech/Phoenix/Firestone Part Number: /Contitech/Goodyear/sea transportation,TNT,DHL,UPS,FedEx,EMS,etc.
    Car Model:Certification:
    For/ Machine/passenger car, truck//trailer/bus etc.ISO/TS 16949:2009, ISO9001:2008, ISO14001:2004
    Product name:Position:
    rubber air spring, rubber air bellow, air bags,rubber shockRear/front
    Application:
    Machine shock system / auto suspension system

    AIRSUSTECH 1B8X1 Cross OEM Original Equipment Manufacturer:

    AIRSUSTECH Part Number:1B8X1Contitech Part Number: FS 120-9
    Dunlop(FR) Bellows Number: 8’’x1Contitech Part Number: FS120-9
    Dunlop(FR) Part Number:SP1637Firestone : W01R584085
    Dunlop(FR) Part Number: SP 1637Contitech Part Number: FS 1209
    Dunlop(FR) : 8’’x1Norgren Part Number:: PM/31081(8x1)
    Dunlop(FR) : 8x1Contitech Part Number: FS 120-9 CI 1/2
    Dunlop(FR) Bellows Number:8x1Norgren Bellows Number: (8x1)
    Contitech Part Number: FS120-9 CI 1/2Contitech Part Number: FS 1209 CI 1/2
    Firestone Part Number: W01-R58-4054Firestone : W01 M58 6165
    Firestone Part Number: W01R584054Firestone Bellows Number: W01-R58-4085
    Firestone Part Number: W01 R58 4054Firestone Bellows Number: W01R584085
    ContiTech: FS138-8DS66507Firestone Bellows Number: W01 R58 4085
    ContiTech: FS138-81/2M10Firestone No.: W01-R58-4054/W01R584054/W01R584054
    ContiTech: FS138-8G1/2M10Firestone Style: 8x1/8x1/8x1 Dunlop FR: 8x1SP1537
    ContiTech: FS138-8DSG1/2Dunlop UK (Pneuride): PNP305500110/PNP305500110 Norgren: M/31081/M31081/M31081
    ContiTech: FS138-8DSG1/2M10Nominal Diameter (Inches) x Convolution: 8x1/8x1/8x1 Pike: 8x19109014N
    ContiTech: FS138-8DS/FS138-8DS/FS1388DSYS-AIR: YS-210-1V/YS2101V/YS2101V Rubena: 8x1/8x1/8x1 Oria: 8”x1/8x1/8x1
    ContiTech Bellows: FS138-8/FS138-8/FS1388

    AIRSUSTECH 1B8X1 Technical data


    ❶Nut/blind nut
    Top plate screw (nut) teeth: 2XM8x1.25
    The screw center distance of the top cover plate: 70 mm
    Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
    The screw center distance of the bottom cover plate: 70 mm

    ❷Air hole/air inlet/air fittings
    Air hole/air inlet: 1/2-18NPTF
    The screw center distance between the air hole and the nut: 35 mm

    ❸Cover plate
    Top plate diameter: 135 mm
    Diameter of the bottom cover: 135 mm
    Bell rubber bellows
    Maximum diameter of rubber bellows: 215 mm
    Natural diameter of rubber bellows: 190 mm
    Working stroke: minimum 50 mm to maximum 115 mm
    Maximum height: 115 mm
    Minimum height: 50 mm
    Stroke height: 90mm

    ❺Bumper block/bumper block
    No bumper block

    ❻Belt loop/Belt loop
    With belt loop: not a belt loop


    AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags product description:


    The air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded


    • In order to press the air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load


    • The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags must be used to absorb the force


    • Before disassembling the air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags , the internal air must be released to prevent accidents and personal injury.


    • During operation, the rubber air spring shock absorber AIRSUSTECH 1B8X1 refer to W01-R58-4054 Firestone Air Bags shall not be in contact with other parts


    DUNLOP France PART NO.
    D14B42SP 2008SP 543
    D14B47SP 202297619 97619 14 1/2 X 16 X 1 D10B01 D10S02 D10S04 D10U01 D11B37 D11B42 D11S02 D11S02 D11S03 D11U44 D11U47 D11U48 D12B01 D12B01 D12B15 D12B16 D12B18 D12B18 D12B19 D12B22 D12B23 D12B24 D12B26 D12B29 D12B30 D12B33 D12S02 D12S02 D12S03 D12S05 D12T10 D12T11 D12U04 D13A02 D13B03 D13B03 D13B18 D13B19 D13B20 D13B22 D13B25 D13B26 D13B31 D13B32 D13B34 D13B36 D13B42 D13B45 D13S02 D13U40
    D14B49SP 2334
    D14B51SP 2441
    D14B51SP 253
    D14U37SP 253
    SP 1129SP 255
    SP 1218SP 256
    SP 1368SP 257
    SP 1457SP 258
    SP 1482SP 2623
    SP 1538SP 2782
    SP 1539SP 2861
    SP 1542SP 2863
    SP 1637SP 2895
    SP 1640SP 2910
    SP 1643SP 2913
    SP 1988SP 2917

    The drawing of AIRSUSTECH 1B8X1:

    203mm Dia. Dunlop Air Spring SP1637 Rubber Bellow 8"X1 One Convoluted203mm Dia. Dunlop Air Spring SP1637 Rubber Bellow 8"X1 One Convoluted203mm Dia. Dunlop Air Spring SP1637 Rubber Bellow 8"X1 One Convoluted
