    3B2400P01 Triple Bellow Air Spring With Air Inlet 3/8NPT For Vehicle Testing Equipment

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B2400P01
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    3B2400P01 Triple Bellow Air Spring With Air Inlet 3/8NPT For Vehicle Testing Equipment

    Air Spring Rubber Bellows 3B2400P01 Triple with Air Inlet 3/8NPT For Vehicle Testing Equipment


    Quick Details
    Model:Type:
    3B2400P01double convoluted air spring
    Year:Material:
    all year and 2002-2022Rubberl+steel
    OE NO.:Operation:
    3B2400P01Gas-filled
    Machine Fitment:Function:
    All kindsReduce Shock /Reduce Vibration
    Warranty:Quality:
    12 months100% Tested and good Quality, no leaking
    Place of Origin:Payment:
    Guangdong, ChinaT/T,Trade Assurance,Paypal,Western Union
    Brand Name:Transportation:
    Firestone Part Number: /Contitech/Goodyear/Airsustech/Phoenixsea transportation,TNT,DHL,UPS,FedEx,EMS,etc.
    Car Model:Certification:
    For/passenger car, truck//trailer/bus etc.ISO/TS 16949:2009, ISO9001:2008, ISO14001:2004
    Product name:Position:
    rubber air spring, rubber air bellow, air bags,rubber shockRear/front
    Application:
    Machine shock system / auto suspension system

    AIRSUSTECH NO. 3B2400P01 technical parameter


    Maximum Diameter @ 100 PSIG (mm)Bead plate type
    1651
    Maximum Height (mm)Blind Nut Center (mm)
    23044.5
    Maximum travel (mm)Install the isolator
    80Design height
    Minimum Usable Height (Mm)213
    150Load (at design height): 40 psig
    Force @ 80PSI at 1 inch (lb) stroke515
    1450Load (at design height): 60 psig
    Force @ 80PSI at 3" (lb) Stroke787
    880Load (at design height): 80 psig
    Force @ 80PSI (lbs) at max stroke1062
    820Natural Frequency (@80 psig) (cpm)
    Style145
    2400P01/ 3E2400P01Isolation Percentage at Forced Frequency 400 CPM
    Material84.9
    2-layer standard wireIsolation Percentage at Forced Frequency 800 CPM
    end close details96.6
    Isolation Percentage at Forced Frequency 1500 CPM
    99.1

    AIRSUSTECH NO. 3B2400P01 AIR SPRING SIZES:

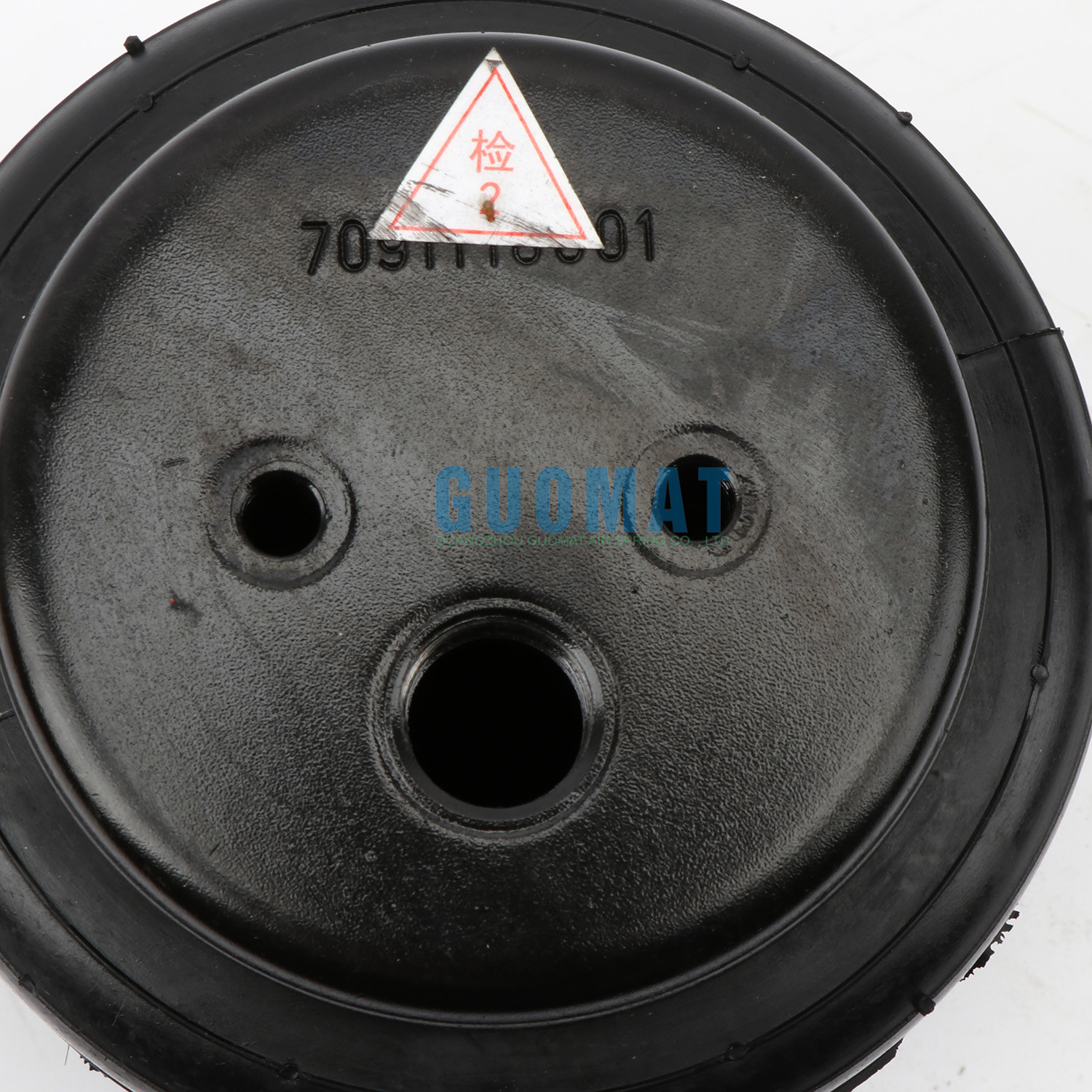

    ❶Nut/blind nut
    Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
    The screw center distance of the top cover plate: 44.5 mm
    Screw (nut) teeth of the bottom cover plate: 2 x 1 / 2-13UNC
    Screw center distance of bottom cover plate: MIDDLE

    ❷Air hole/air inlet/air fitting
    Air hole/air inlet: 3/8-14NPT
    Center distance between air inlet and nut: 22 mm

    ❸cover
    Top plate diameter (width): 113 mm
    Diameter of bottom cover (width): 113 mm

    Bell rubber bellows
    Natural diameter of rubber bellows: 144.5 mm
    Maximum diameter of rubber bellows: 165 mm
    Design height: 213mm
    Bellows Number: 2400

    ❺Bumper block/bumper block
    No bumper

    ❻Belt loop/Belt loop
    Belt loop: two pieces of loop belt


    Description of AIRSUSTECH 3B2400P01 air spring:


    AIRSUSTECH 3B2400P01 Air Spring Rubber Bellows with Air Inlet 3/8NPT: are characterized by extremely high durability, precise technical design and cost efficiency and can be used in a variety of actuation and vibration isolation applications. The AIRSUSTECH 3B2400P01 Air Spring Rubber Bellows with Air Inlet 3/8NPT: has a proven design combined with a fabric-reinforced flexible Wingprene ™ or natural rubber structure and corrosion-resistant end fixings to provide superior quality and performance. As an actuator, AIRSUSTECH 3B2400P01 Air Spring Rubber Bellows with Air Inlet 3/8NPT: can provide linear or angular movement.


    Compared to cylinders, they can isolate vibrations and adjust the load height at the same time, and achieve uniform vibration isolation effects with different loads. These air springs (air shock absorbers) have a good ratio of stroke to pressure height and can accommodate a large number of actuating media such as air, water, nitrogen or antifreeze. As an isolator, the AIRSUSTECH 3B2400P01 Air Spring Rubber Bellows with Air Inlet 3/8NPT can effectively reduce the harmful effects of vibrations.


    One pc of AIRSUSTECH 3B2400 Package size and weight:


    Net WeightGross WeightLength
    (cm)
    Width
    (cm)
    Height
    (cm)
    Measurememt
    (cbm)
    2.753.452424240.031

    The drawing of AIRSUSTECH 3B2400P01 AIR SPRING:


    3B2400P01 Triple Bellow Air Spring With Air Inlet 3/8NPT For Vehicle Testing Equipment3B2400P01 Triple Bellow Air Spring With Air Inlet 3/8NPT For Vehicle Testing Equipment
