Air Spring Actuator AIRSUSTECH 3B2200 Triple Convolutions For Packaging Lifting Platform

AIRSUSTECH NO. 3B2200 technical parameter

AIRSUSTECH NO. 3B2300 AIR SPRING SIZES:

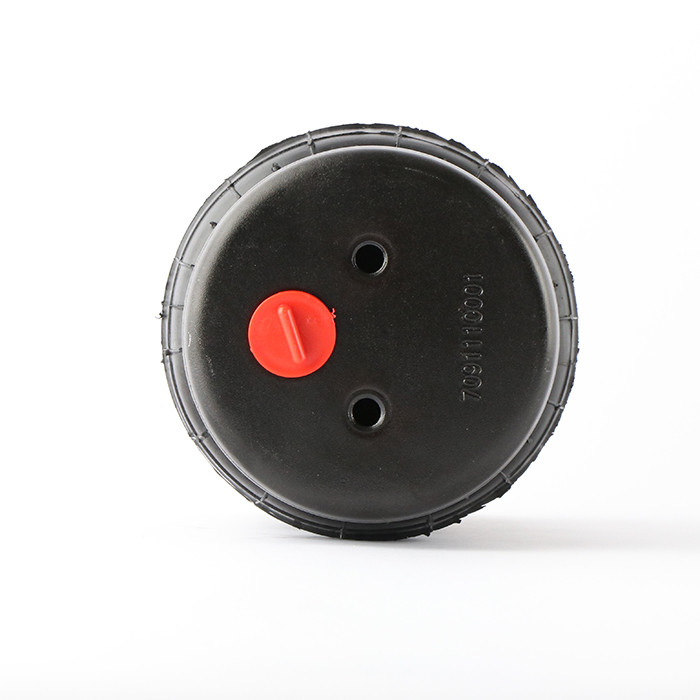

❶Nut/blind nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 44.5 mm
Screw (nut) teeth of the bottom cover plate: 2 x 1 / 2-13UNC
Screw center distance of bottom cover plate: MIDDLE

❷Air hole/air inlet/air fitting
Air hole/air inlet: 1/2-14NPT
Center distance between air inlet and nut: 22 mm

❸cover
Top plate diameter (width): 97 mm
Diameter of bottom cover (width): 97 mm

Bell rubber bellows
Natural diameter of rubber bellows: 100 mm
Maximum diameter of rubber bellows: 125 mm
Design height: 187mm
Bellows Number: 2200

❺Bumper block/bumper block
No bumper

❻Belt loop/Belt loop
Belt loop: two pieces of loop belt

Description of AIRSUSTECH 3B2200 air spring:

AIRSUSTECH 3B2200 air spring: are characterized by extremely high durability, precise technical design and cost efficiency and can be used in a variety of actuation and vibration isolation applications. The AIRSUSTECH 3B2200 air spring: has a proven design combined with a fabric-reinforced flexible Wingprene ™ or natural rubber structure and corrosion-resistant end fixings to provide superior quality and performance. As an actuator, AIRSUSTECH 3B2200 air spring: can provide linear or angular movement.

Compared to cylinders, they can isolate vibrations and adjust the load height at the same time, and achieve uniform vibration isolation effects with different loads. These air springs (air shock absorbers) have a good ratio of stroke to pressure height and can accommodate a large number of actuating media such as air, water, nitrogen or antifreeze. As an isolator, the AIRSUSTECH 3B2200 air spring: can effectively reduce the harmful effects of vibrations.

One pc of AIRSUSTECH 3B2300 Package size and weight:

The drawing of AIRSUSTECH 3B2300 AIR SPRING:
