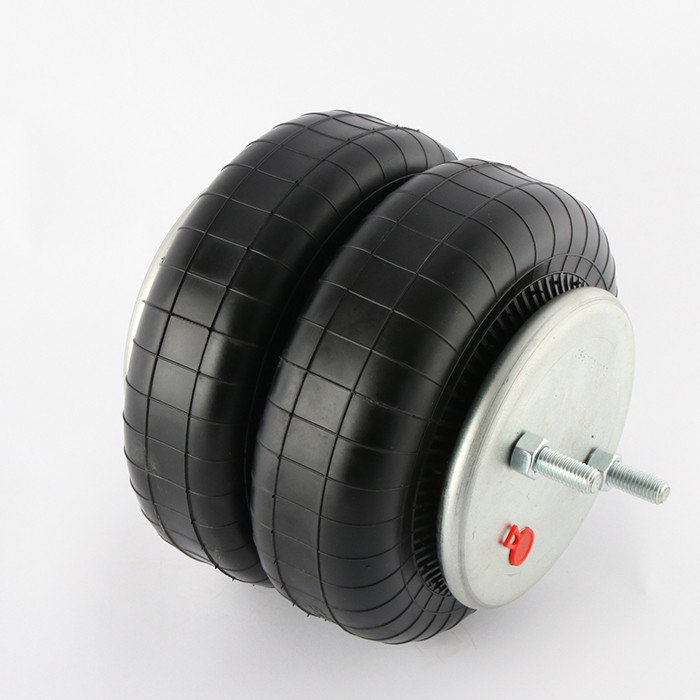

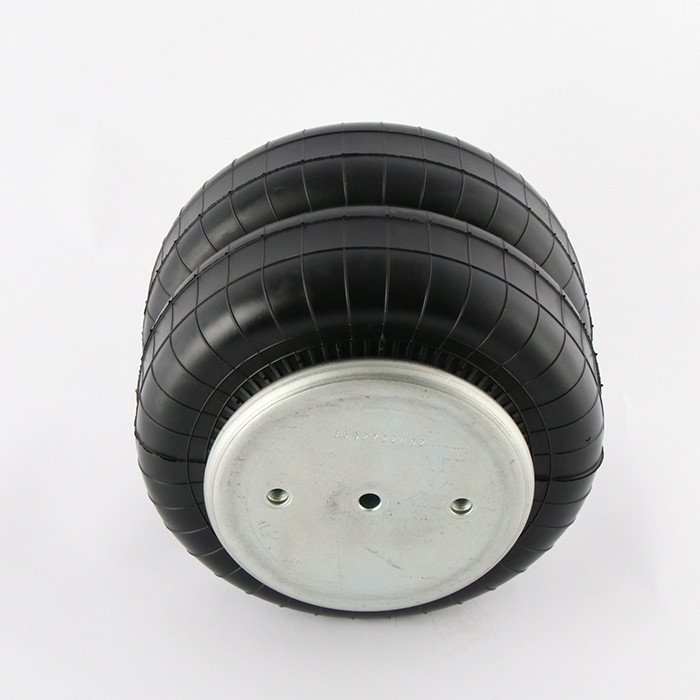

    FD 200-25 427 Contitech Air Spring Shock Absorber Triangle 6332 Bellows 4427

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6945
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    FD 200-25 427 Contitech Air Spring Shock Absorber Triangle 6332 Bellows 4427

    FD 200-25 427 Contitech Air Spring Shock Absorber Triangle 6332 Bellows 4427


    AIRSUSTECH 2B6945 Cross OEM Original Equipment Manufacturer:


    AIRSUSTECH Part Number:2B6945Goodyear Part Number:2B9 253
    AIRSUSTECH rubber bellows 2B20-2Goodyear Part Number:2B9253
    ContiTech Part Number:FD 200-25 427 1/4 NPTGoodyear Bellows NO.:578-92-3-206
    ContiTech Part Number:FD 200 25 427 1/4 NPTGoodyear Bellows NO.:578 92 3 206
    ContiTech Part Number:FD200 25 427 1/4 NPTGoodyear Bellows NO.:578923206
    Goodyear Part Number:2B9-253Triangle Part Number:6332/4427
    Firestone Part Number:6945Ridewell Part Number: 1003586945C
    Firestone Part Number:W01-358-6945Leland Part Number: Sc2125
    Firestone Part Number:W01 358 6945Watson&Chalin Part Number:AS0119F
    Firestone Part Number:W013586945Watson&Chalin Part Number:AS01451G

    Triangular spring: 4427
    Firestone: 6945
    Kandi Technology: 64550
    Leadwell: 1003586945C
    Batman: 10-96945
    UCF/Impex: AB-2B9-253
    Taiwan distributor: AB6945
    Dallas Spring: AS6945
    Midland/Haldex: CS209253
    Euclid/Meritor Aftermarket: E-FS6945
    Kandi Technology: FD200-25427
    Euclid/Meritor Aftermarket: FS6945
    Leyland: SC2125


    AIRSUSTECH 2B6945 Specifications and Detail Technical Parameters


    ❶Nut/blind nut
    Top plate screw (nut) teeth: 2X1/2-16UNC
    The screw center distance of the top cover plate: 89 mm
    Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
    The screw center distance of the bottom cover plate: 89 mm
    ❷Air hole/air inlet/air fittings
    Air hole/air inlet: 1/4 NPT
    Screw center distance between air hole and nut: 44 mm
    ❸Cover plate
    Top plate diameter: 160 mm
    Diameter of the bottom cover: 160 mm
    Bell rubber bellows
    Maximum diameter of rubber bellows: 262 mm
    Natural diameter of rubber bellows:240 mm
    Working stroke: minimum 95 mm to maximum 325 mm
    Maximum height: 325 mm
    Minimum height: 95 mm
    Stroke height: 230 mm
    ❺Bumper block/bumper block
    No bumper block
    ❻Belt loop/Belt loop
    There is a belt hoop: a belt hoop


    Top Plate Holes/Studs: 3
    Bottom Plate Holes/Studs: 2
    Top Plate Diameter: 6.4
    Bottom Plate Diameter: 6.4
    Folded Height: 3.8
    Flexible Members: 578-92-3-206
    Goodyear Trim: 2B9253


    AIRSUSTECH 2B6945 the same size as W01-358-6945 Industrial Air Springs product description:


    The air spring shock absorber AIRSUSTECH 2B6945 the same size as W01-358-6945 Industrial Air Springs can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

    • In order to press the air spring shock absorber AIRSUSTECH 2B6945 the same size as W01-358-6945 Industrial Air Springs to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

    • The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B6945 the same size as W01-358-6945 Industrial Air Springs must be used to absorb the force

    • Before disassembling the air spring shock absorber AIRSUSTECH 2B6945 the same size as W01-358-6945 Industrial Air Springs , the internal air must be released to prevent accidents and personal injury.

    • During operation, the rubber air spring shock absorber AIRSUSTECH 2B6945 the same size as W01-358-6945 Industrial Air Springs shall not be in contact with other parts


    FD 200-25 427 Contitech Air Spring Shock Absorber Triangle 6332 Bellows 4427FD 200-25 427 Contitech Air Spring Shock Absorber Triangle 6332 Bellows 4427FD 200-25 427 Contitech Air Spring Shock Absorber Triangle 6332 Bellows 4427
