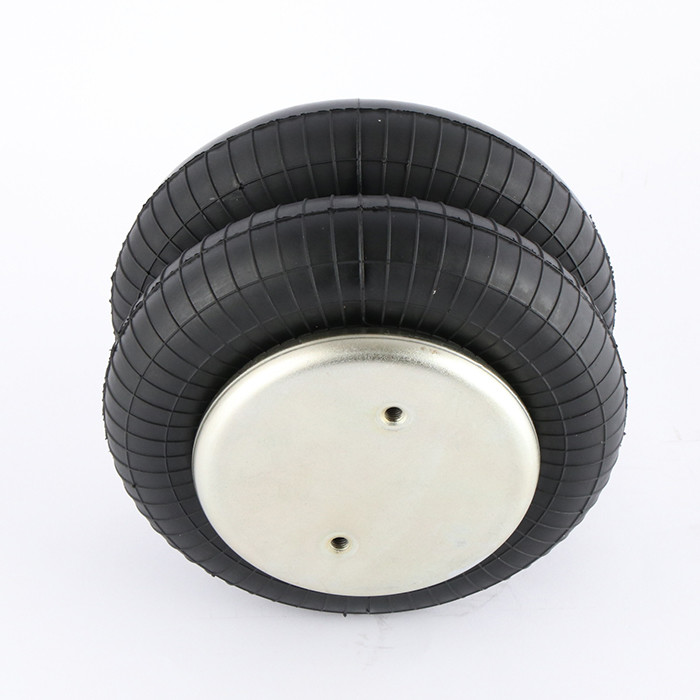

    FD 120-17 Contitech Air Spring Double Convoluted Rubber Bags For Conveyor End Stop

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B12017-3/4
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    FD 120-17 Contitech Air Spring Double Convoluted Rubber Bags For Conveyor End Stop

    Contitech Air Spring FD 120-17 Double Convoluted Rubber Bags For CONVEYOR END STOP


    AIRSUSTECH Air Spring NO.2B12017-3/4 OEM Original :


    Contitech Part NumberFD 120-17 Cl G3/4Contitech Part NumberFD 120-17 Cl G3/4 M8
    Contitech Part NumberFD120-17 Cl G3/4Contitech Part NumberFD120-17 Cl G3/4 M8
    Contitech Part NumberFD12017 Cl G3/4Contitech Part NumberFD12017 Cl G3/4 M8
    Contitech Part NumberFD120 17 Cl G3/4Contitech Part NumberFD120 17 Cl G3/4 M8
    Continental Part NumberFD 120-17 Cl G3/4Continental Part NumberFD 120-17 Cl G3/4 M8
    Continental Part NumberFD120-17 Cl G3/4Continental Part NumberFD120-17 Cl G3/4 M8
    Continental Part NumberFD12017 Cl G3/4Continental Part NumberFD12017 Cl G3/4 M8
    Continental Part NumberFD120 17 Cl G3/4Continental Part NumberFD120 17 Cl G3/4 M8

    BELLOW NO.COMPLETE NO.
    AIRSUSTECH NO.2B12017-3/4AIRSUSTECH NO.2B12017

    Contitech FD120-17 Cl G3/4

    BOSCH 822419042
    FIRESTONE FLEX 26CONTITECH FD120-17
    FIRESTONE W01 358 01422682 030000
    PIRELLI 26DUNLOP (FR) SO 8201
    PHOENIX 2B O7 RFESTO EB-215-155
    AIRKRAFT 114050GOODYEAR 2B 7-540
    CONTITECH 603 NNORGREN PM/31082 (8x2)

    Contitech FD120-17 Cl

    PIRELLI T26 84181

    Contitech FD 120-17 Cl

    TAURUS KF 218
    WEFORMA WBZ 300-E1
    AIRKRAFT 113053

    Parameter of AIRSUSTECH Air Spring NO.2B12017-3/4


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

    Screw Center Distance of Top Cover Plate : 70 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

    Screw Center Distance of Bottom Cover Plate : 70mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G3/4


    Cover Plate

    Top Cover Plate Diameter (Width): 135 mm / 5.31 inches

    Bottom Cover Plate Diameter (Width): 135 mm / 5.31 inches

    Top Cover Plate Number: 3450

    Bottom Cover Plate Number: 3436


    Rubber Bellows

    Rubber Bellows Natural Diameter : 189 mm

    Rubber Bellows Natural Height : 177 mm

    Compressed Height: 79 mm / 3.12 inches

    Design Height: 178mm-203mm / 7-8 inches

    Maximum Diameter: 218 mm / 8.6 inches

    Bellows # NO.: 26

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    AIRSUSTECH Air Spring NO.2B12017-3/4 Vibration isolation - dynamic characteristic values


    Design height H: recommended 7.48 inch, minimum 6.89 inch

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Force (Load) [lbf]

    778

    1210

    1640

    2060

    2460

    Spring rate [lbf/in.]

    311

    492

    673

    854

    1040

    232

    Natural frequency [Hz]

    2.1

    2.0

    2.0

    2.0

    2.0




    AIRSUSTECH Air Spring NO.2B12017-3/4 Pneumatic application - static characteristic values Force F [kN]


    Force F [lbf]

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Height H [in.]

    8.0

    681

    1070

    1440

    1820

    2180

    240

    7.0

    885

    1340

    1790

    2260

    2710

    220

    6.0

    1070

    1580

    2110

    2650

    3170

    200

    5.0

    1210

    1790

    2390

    3000

    3570

    170

    4.0

    1330

    1970

    2640

    3310

    3910

    140

    3.0

    1420

    2120

    2840

    3560

    4160

    120



    AIRSUSTECH Air Spring NO.2B12017-3/4 For CONVEYOR END STOP:
