    188102H-1A Industrial Air Springs 188102H With 0.7Mpa Rubber Max DIA. 210

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 188102H-1A
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

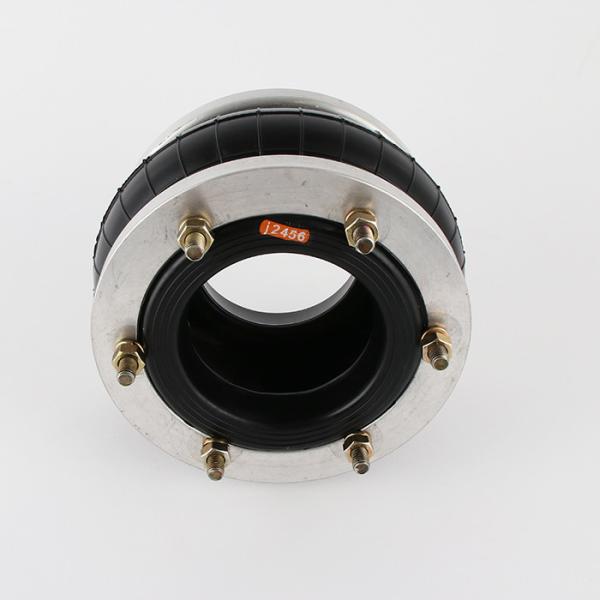

    188102H-1A Industrial Air Springs 188102H With 0.7Mpa Rubber Max DIA. 210

    188102H-1A Industrial Air Springs AIRSUSTECH 188102H With 0.7 M pa Rubber Max DIA. 210


    188102H-1A Technical parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth :M10*6pcs
    Top Cover Distance Plate Screw (Nut) :141MM
    Bottom Cover Plate Screw (Nut) Tooth :M10*6pcs
    Screw Center Distance of Bottom Cover Plate : 141MM

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : /

    Cover Plate
    Top Cover Plate Diameter:175 mm
    Bottom Cover Plate Diameter: 175 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter: 210 mm
    Rubber Bellows Natural Diameter :190 mm
    The Working Stroke : MAX 115 mm to MIN 52 mm
    Maximum Height : 115 mm
    Minimum Height :52 mm
    Stroke Height : 63 mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :NO Pieces of Girdle Hoop


    Technical performance parameter list of air spring:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    52(mm)540799107213311590187121370.64
    65(mm)46669093111761420168019261.04
    78(mm)3835707749991214145016641.36
    91(mm)290451609799979117513521.60
    102(mm)20832845658772686210081.73
    117(mm)1412333204345336477571.86
    130(mm)44961632292963704511.99
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)109156191239276320366
    Stiffness and frequency at design heightNatural frequency Hz3.623.453.243.193.093.053.01
    Stiffness and frequency at design heightNatural frequency cpm217207194191185183180
    188102H-1A Industrial Air Springs 188102H With 0.7Mpa Rubber Max DIA. 210188102H-1A Industrial Air Springs 188102H With 0.7Mpa Rubber Max DIA. 210188102H-1A Industrial Air Springs 188102H With 0.7Mpa Rubber Max DIA. 210
