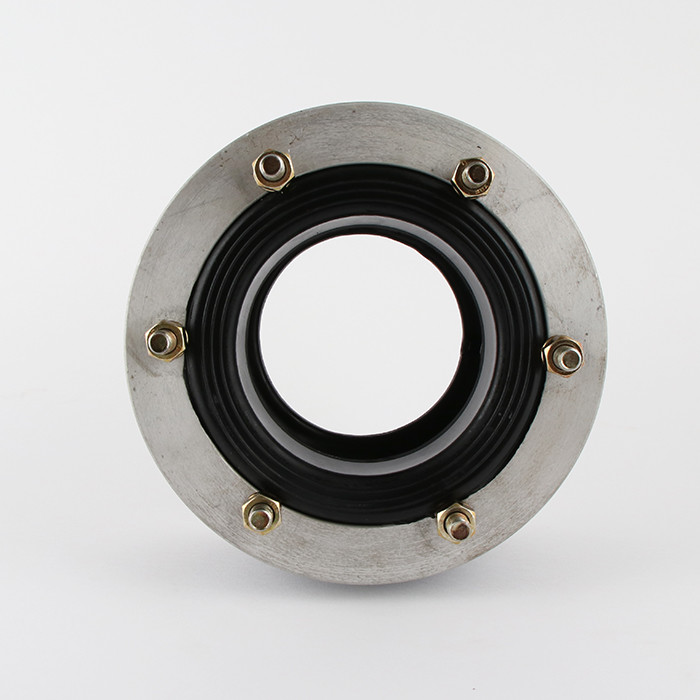

    OEM Industrial Air Springs 215120H-1 Path 125mm As Cam Follower

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 215120H-1
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    OEM Industrial Air Springs 215120H-1 Path 125mm As Cam Follower

    Industrial Air Springs AIRSUSTECH 215120H-1 With Path 125mm As The Cam Follower


    215120H-1 Technical parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth :M10*6pcs
    Top Cover Distance Plate Screw (Nut) :164MM
    Bottom Cover Plate Screw (Nut) Tooth :M10*6pcs
    Screw Center Distance of Bottom Cover Plate : 164MM

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : /

    Cover Plate
    Top Cover Plate Diameter:195 mm
    Bottom Cover Plate Diameter: 195 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter: 233 mm
    Rubber Bellows Natural Diameter :210 mm
    The Working Stroke : MAX 140 mm to MIN 42 mm
    Maximum Height : 140 mm
    Minimum Height :42 mm
    Stroke Height : 98 mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :NO Pieces of Girdle Hoop


    Industrial Air Springs AIRSUSTECH 215120H-1 Technical performance parameter list:
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    42(mm)7961124145017792114245927780.67
    59(mm)646952125715611875217724831.27
    76(mm)514783104413241601186021391.70
    93(mm)40261281110391249147716961.95
    112(mm)294452603768938110912782.19
    130(mm)1782743794835927068152.44
    144(mm)29691091582132803622.66
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)120162205261307355401
    Stiffness and frequency at design heightNatural frequency Hz3.202.992.922.922.862.832.80
    Stiffness and frequency at design heightNatural frequency cpm192179175175171169168

    Industrial Air Springs AIRSUSTECH 215120H-1 use for As The Cam Follower:


    OEM Industrial Air Springs 215120H-1 Path 125mm As Cam FollowerOEM Industrial Air Springs 215120H-1 Path 125mm As Cam FollowerOEM Industrial Air Springs 215120H-1 Path 125mm As Cam Follower
