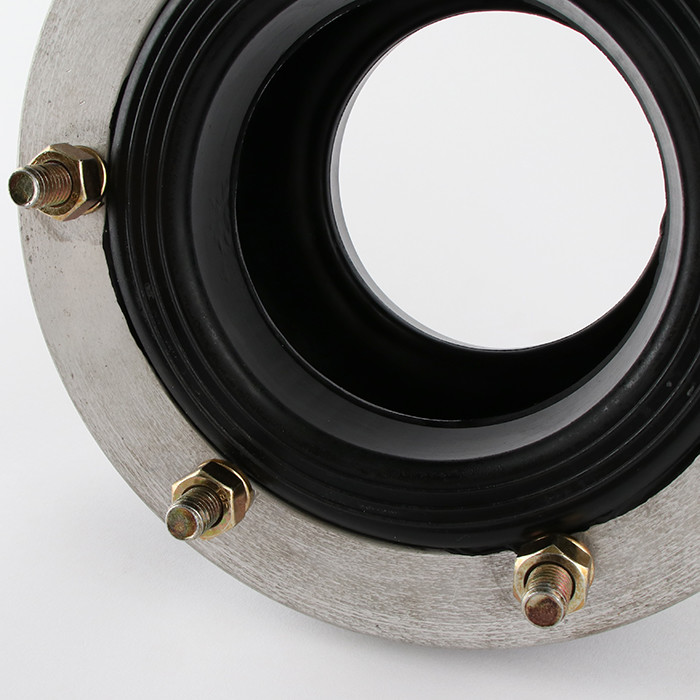

    OEM Air Spring Actuator 086060H-1 Air Spring Bellows With Flange Rings

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 086060H-1
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    OEM Air Spring Actuator 086060H-1 Air Spring Bellows With Flange Rings

    Air Spring Actuator AIRSUSTECH 086060H-1 Air Spring Bellows With Flange Rings


    086060H-1 Technical parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth :M6
    Top Cover
    Distance Plate Screw (Nut) :76MM
    Bottom Cover Plate Screw (Nut) Tooth :M6
    Screw Center Distance of Bottom Cover Plate : 76MM

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : /

    Cover Plate
    Top Cover Plate Diameter:90MM
    Bottom Cover Plate Diameter:
    90MM

    Rubber Bellows
    Rubber Bellows MAX Diameter: 175 mm
    Rubber Bellows Natural Diameter :150 mm
    The Working Stroke : MAX 130 mm to MIN 50 mm
    Maximum Height : 90 mm
    Minimum Height :42 mm
    Stroke Height : 48 mm

    Bumper block / Buffer block
    With Bumper Block Or Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :NO Pieces of Girdle Hoop


    AIRSUSTECH Model numberNominal diameter

    0.7Mpa

    MAX IDA

    Bearing capacity at design height
    0.2Mpa0.5Mpa0.7Mpa
    086060H-15011044123175

    0.7Mpa

    Natural frequency

    Range of travelDelivery status
    Minimum compression heightSafety elongation height
    5.1842901

    Technical performance parameter list of air spring
    Bearing
    load
    Power
    (kg)
    Inflation pressure0.2MPa0.3MPa0.4MPa0.5MPa0.6MPa0.7MPa0.8MPa0.7MPa
    Volume(dm³)
    Installation height
    42(mm)931391842282743173620.09
    48(mm)811201581982382783160.14
    54(mm)64971311661982332660.17
    60(mm)4569971231501752010.19
    66(mm)24385473901081260.22
    72(mm)459192736470.24
    Stiffness and frequency at design heightVertical stiffness(Kg/cm)7091120140161188213
    Stiffness and frequency at design heightNatural frequency Hz6.335.735.585.355.205.185.14
    Stiffness and frequency at design heightNatural frequency cpm379343334321312310308

    Other kinds of AIRSUSTECH H air spring:


    AIRSUSTECH Model numberBearing capacityDesign itineraryMinimum compressionSafe elongationFull trip
    320124H-12965905214290
    280126H-12370945019594
    260135H-1167015955155159
    215120H-11109984214098
    188102H-1A862635211563
    150076H-162139468539
    120060H-144423426523
    086060H-117548429048
