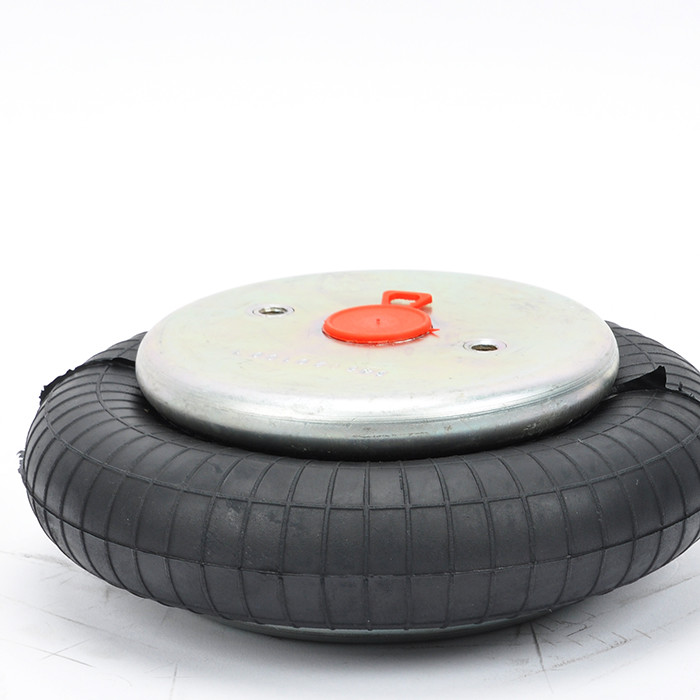

EB-215-80 Festo Air Spring Megatech 1S120-9 3/4 M8 For VIBRATING PACKER​

AIRSUSTECH 1B1209 Technical data

❶Nut/blind nut
Top plate screw (nut) teeth: 2XM8x1.25
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
The screw center distance of the bottom cover plate: 70 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: 3 / 4-18NPTF
The screw center distance between the air hole and the nut: 35 mm

❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 190 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50 mm
Stroke height: 90mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
With belt loop: not a belt loop

Maximum diameter @ 7 Bar (mm)
231
Maximum height (mm)
51
Maximum stroke (mm)
79
Minimum usable height (mm)
130
Force (kN) @ 5 Bar at 25 mm stroke
10.8
The force when the stroke is 50% of the maximum stroke, in kN @ 5 Bar
10.3
Force at maximum stroke, in kN @ 5 Bar
5.2
Style cross-reference high-intensity style number
117
Style cross reference extended height (similar to end cap) style number
116-1
Material
2-layer standard line

AIRSUSTECH 1B1209 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 1B1209 refer to EB-215-80 Festo Air Spring product description:

The air spring shock absorber AIRSUSTECH 1B1209 refer to EB-215-80 Festo Air Spring can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B1209 refer to EB-215-80 Festo Air Spring to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B1209 refer to EB-215-80 Festo Air Spring must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B1209 refer to EB-215-80 Festo Air Spring , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B1209 refer to EB-215-80 Festo Air Spring shall not be in contact with other parts

AIRSUSTECH 1B1209 For VIBRATING PACKER​;
