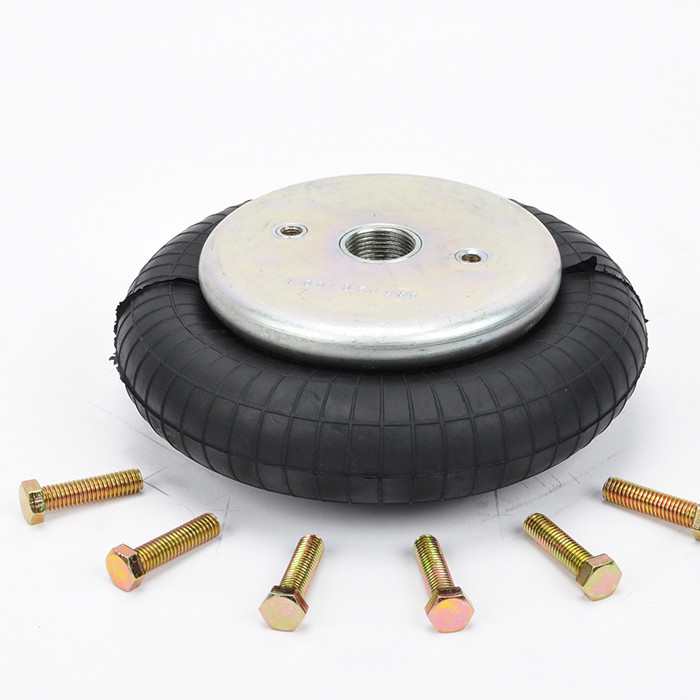

W01-M58-6165 Firestone Air Spring Bosch 822419003 For VERTICAL ACTUATED DRIVE TABLE

AIRSUSTECH 1B1209 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 1B1209 Technical data

❶Nut/blind nut
Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2XM8x1.25
The screw center distance of the bottom cover plate: 70 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 3 / 4-18NPTF
The screw center distance between the air hole and the nut: 35 mm
❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 190 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50 mm
Stroke height: 90mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
With belt loop: not a belt loop

AIRSUSTECH 1B1209 refer to W01-M58-6165 Firestone Air Spring product description:

The air spring shock absorber AIRSUSTECH 1B1209 refer to W01-M58-6165 Firestone Air Spring can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 1B1209 refer to W01-M58-6165 Firestone Air Spring to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B1209 refer to W01-M58-6165 Firestone Air Spring must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 1B1209 refer to W01-M58-6165 Firestone Air Spring , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 1B1209 refer to W01-M58-6165 Firestone Air Spring shall not be in contact with other parts

AIRSUSTECH 1B1209 For VERTICAL ACTUATED DRIVE TABLE

TOP OF CHAIN IN HIGH POSITION
TOP OF CHAIN IN LOW POSTION
