    S300-2R Double Suspension Air Spring Safe Height 130mm For Carton Filling Machines

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : F-300-2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    S300-2R Double Suspension Air Spring Safe Height 130mm For Carton Filling Machines

    S300-2R Airsustech Double Suspension Air Spring Safe Height 130mm For Carton Filling Machinesator For Hardware Punch Machine


    Quick Details of AIRSUSTECH F-300-2:


    Net Weight:5.75 KG


    Gross Weight:6.25 KG


    Package Size:120mm*360mm*360mm


    Compressed height
    65mm
    Maximum Height
    130mm
    Full stroke
    65mm
    Working medium
    water, air
    Working pressure
    < 0.7Mpa
    Burst pressure
    > 1.6Mpa
    Endurance cycle
    > 10*
    Temperature
    -35C ~+60C


    AIRSUSTECH F-300-2 items Detailed Parameter Table 1:


    AIRSUSTECH NO.Reference No.Hight H(mm)Commonly Maximum Stroke(mm)The Largest Diameter When Compressed(mm)
    Design High(mm)Maximum High(mm)Minimum Height(mm)
    F-300-2S-300-211013065±40360

    F-300-2 items Detailed Parameter Table 2:


    GUOMAT NO.Reference No.Standard Height,Internal Pressure 0.49 M pa When The General ValueUsing Maximum Internal Pressure (M pa)Internal Pressure (M pa)
    Effective Area (Cm2)Volume(L)Load (K n)Dynamic Spring Parameters (N/Min)Vibration Frequency (Hz)
    F-300-2S-300-27107.434.77452.30.883.9-4.9

    AIRSUSTECH F-300-2R this kind of air spring can use for Punching machine is a machine press used to cut holes in materials. It can be small, can be operated manually, and can accommodate a simple mold, or it can be very large, operated by CNC, with a multi-station turret, and can accommodate larger and more complex molds. Air spring can reduce the damage to the product caused by the vibration and the damage to the ground, and has a good effect of isolating the vibration.


    This item can fits for many kinds of machines


    1. Actuators for concrete block machinery
    2. Mineral equipment air spring,
    3. Directional-change actuators in roller conveying systems
    4. Actuators for flask lifts on foundry shake-outs
    5. Mountain bike
    6. Actuators on bottle and carton filling machines
    7. Bin-tilting actuators (for ease of access)
    8. Paper machine equipment air spring air spring,
    9. Actuators on transfer tables
    10. Vibrating screen cover clamping device
    11. Actuators in sand blast rooms
    12. Actuators in glass grinding rooms
    13. Industrial laundry equipment actuators
    14. Crawling pipeline machine

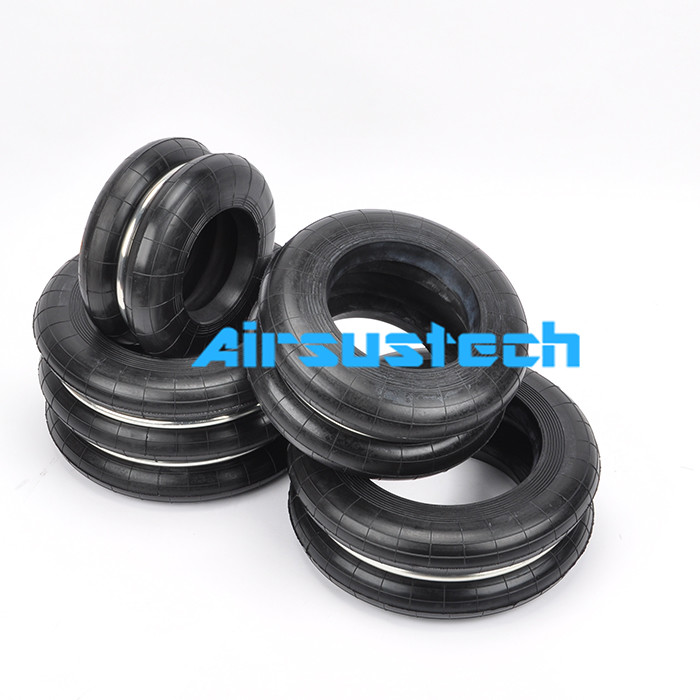

    Details pictures 1 of AIRSUSTECH​ air spring F-300-2R:
    S300-2R Double Suspension Air Spring Safe Height 130mm For Carton Filling Machines

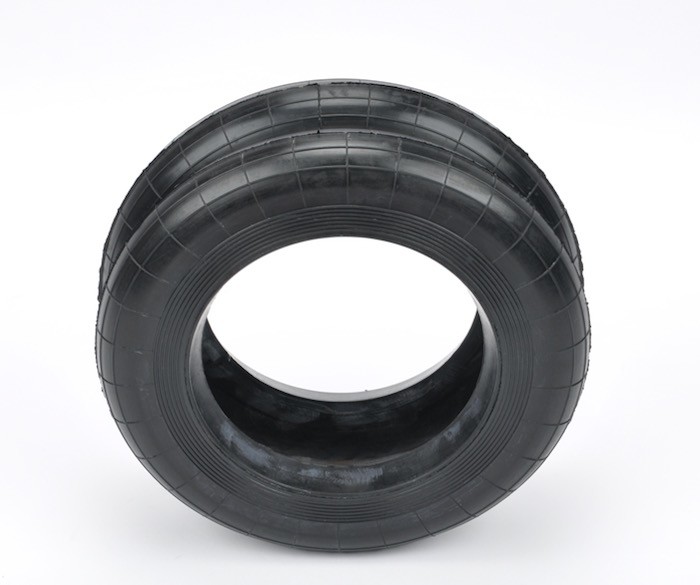

    Details pictures 2 of AIRSUSTECH​ air spring F-300-2R:
    S300-2R Double Suspension Air Spring Safe Height 130mm For Carton Filling Machines

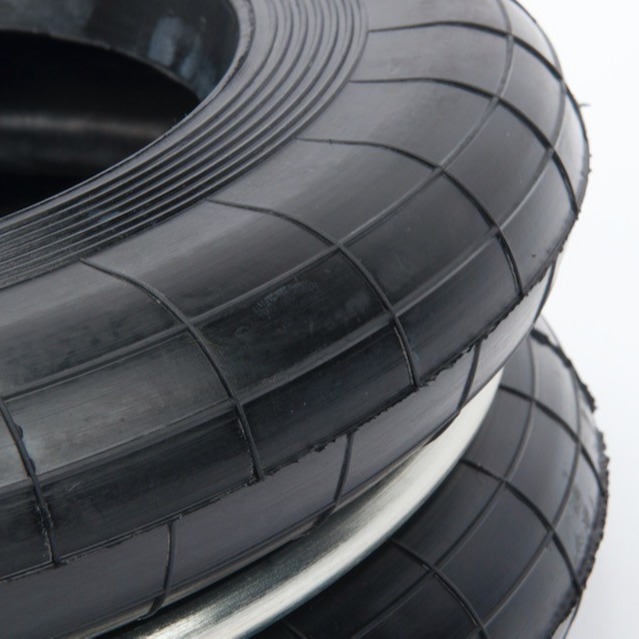

    Details pictures 3 of AIRSUSTECH air spring F-300-2R:


    S300-2R Double Suspension Air Spring Safe Height 130mm For Carton Filling Machines
