    W01-R58-4050 Firestone Air Spring 4 1/2 X 1 Connecting Isolator Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B4 1/2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

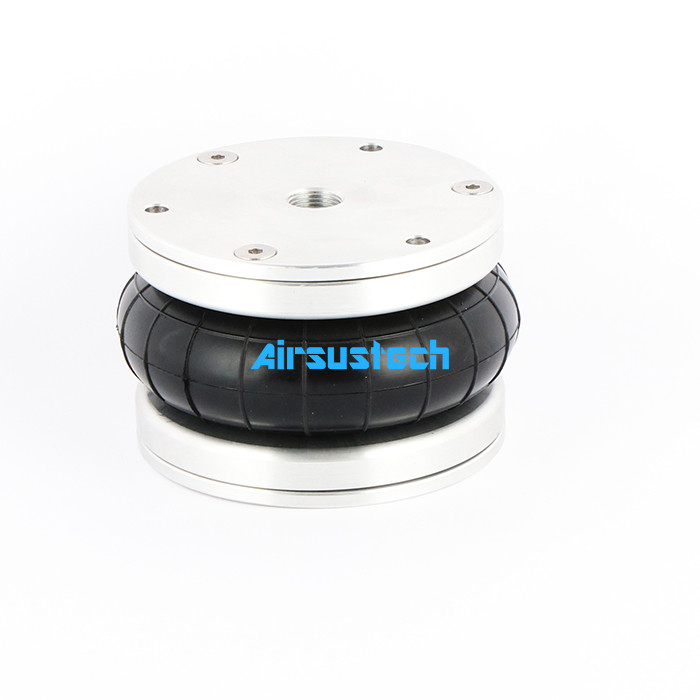

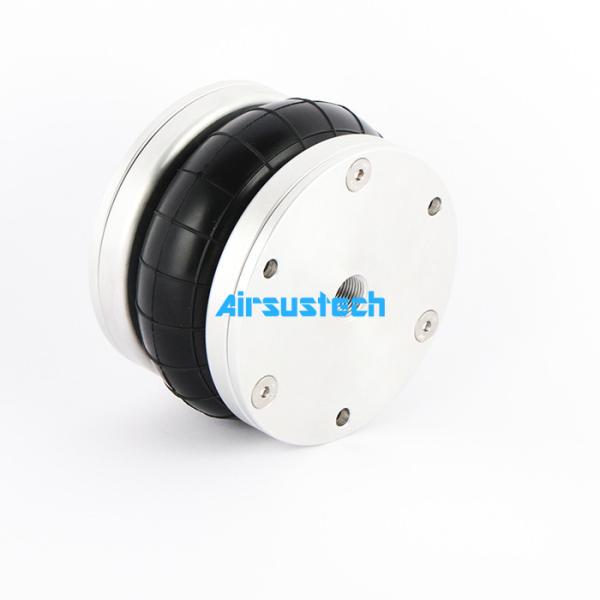

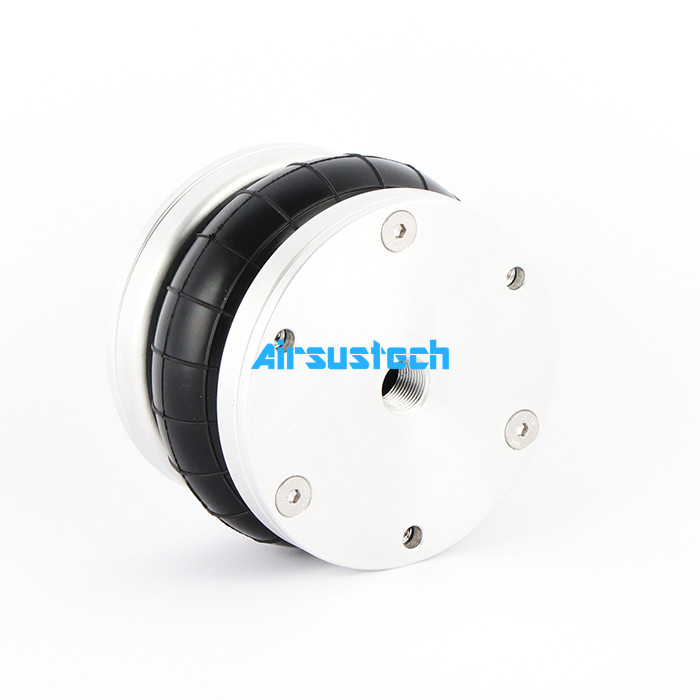

    W01-R58-4050 Firestone Air Spring 4 1/2 X 1 Connecting Isolator Bags

    W01-R58-4050 Firestone Air Spring 4 1/2 X 1 Connecting Isolator Bags


    AIRSUSTECH1B4 1/2 Cross OEM:


    AIRSUSTECH Part Number:1B4 1/2

    Firestone Part Number:W01-R58-4050

    Firestone Part Number:W01 R58 4050

    Firestone Part Number:W01R584050

    Contitech Part Number:FS44-5DIG3/8CR

    Contitech Part Number:FS44-5 DIG3/8CR

    Contitech Part Number:FS 44-5 DIG3/8CR

    Also known as: 70205,


    Comparable: W01R584050, W01-R58-4050, WO1R584050, WO1-R58-4050


    The Specification AIRSUSTECH1B4 1/2:


    S 44-5 DI G 3/8 CR,

    bellows type industrial air spring,

    single spiral,

    effective area 44cm,

    maximum stroke 5cm,

    movable connecting part,

    female mounting thread, G3/8 BSPP,

    neoprene (chloroprene Ene)
    Manufacturer: Mainland


    Compressed height
    1.97 inches
    Maximum expansion height
    3.54"
    The maximum diameter
    4.92 inches
    Maximum inflation pressure
    120 psi
    Maximum stroke
    1.57"
    Inlet type
    Metric
    Air inlet
    3/8"
    series
    d
    lowest temperature
    -22°F
    Maximum temperature
    194°F
    Bellows type
    Single convolution
    weight
    1 pound


    Other kinds of the Firestone W01-R58 air spring:


    W01-R58-4023 140 W01-R58-4085 133 W01-R58-4052 131 W01-R58-4076 131

    W01-R58-4053 132 W01-R58-4092 135 W01-R58-4086 136 W01-R58-4062 138

    W01-R58-4054 133 W01-R58-4060 136 W01-R58-4063 138 W01-R58-4074 139

    W01-R58-4043 130 W01-R58-4037 137 W01-R58-4050 130 W01-R58-4051 131

    W01-R58-4045 133 W01-R58-4055 134 W01-R58-4048 134 W01-R58-4044 136

    W01-R58-4075 139 W01-R58-4047 135 W01-R58-4057 134 W01-R58-4038 136

    W01-R58-4095 133 W01-R58-4056 134 W01-R58-4035 131 W01-R58-4081 130

    W01-R58-4078 132 W01-R58-4070 132 W01-R58-4036 132 W01-R58-4059 135

    W01-R58-4061 136 W01-R58-4073 137 W01-R58-4058 134
