    W01-358-7459 Firestone Suspension Air Springs For Missile Assembly Fixture

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7459
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

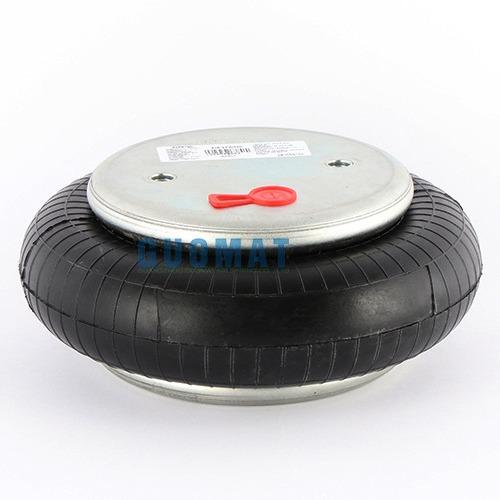

    W01-358-7459 Firestone Suspension Air Springs For Missile Assembly Fixture

    W01-358-7459 Firestone Suspension Air Springs For MISSILE ASSEMBLY FIXTURE


    W01-358-7459 Firestone OEM Original Equipment Manufacturer:


    AIRSUSTECH Part number:1B7459

    Norgren Part number:PM/31091(81/4x1)
    Norgren Part number:PM/31091

    Norgren Part number:81/4x1
    Contitech Part number: FS 200-10 1/4

    Contitech Part number: FS200-10

    Contitech Part number: FS 200-10

    Contitech Part number: FS200-10 1/4
    Phoenix Part number:SP 1B 12

    Phoenix Part number:SP1B12
    Dunlop(FR) Part number: 9’’1/4x1 S09101

    Dunlop(FR) Part number: 9’’1/4x1

    Dunlop(FR) Part number: S09101
    Bosch Part number: 822419004
    FestoPart number :EB-250-85

    Firestone Part number:W01-358-7459

    Firestone Part number:W01 358 7459

    Firestone Part number:W013587459

    Firestone Style 115

    Rubber bellows only :W01-358-0118

    Rubber bellows only :W01 358 0118

    Rubber bellows only :W013580118


    Goodyear Part number:1B9-215

    Goodyear Part number:1B9215

    Goodyear Part number:1B9 215

    Goodyear bellows number: 578912215

    Goodyear bellows number:578-91-2-215

    Goodyear bellows number:578 91 3 201
    Goodyear bellows number:578-91-3-201
    Goodyear bellows number:578913201

    ENIDINE Part number:YI-1B9-215

    ENIDINE Part number:YI1B9215


    Size of W01-358-7459 Firestone:


    Nut/blind nut

    Top plate screw (nut) teeth: 2 x 3/8-16 BLIND NUTS (5/8 DEEP)

    The screw center distance of the top cover plate: 89 mm

    Screw (nut) teeth of the bottom cover plate: 2 x 3/8-16 BLIND NUTS (5/8 DEEP)

    Screw center distance of bottom cover plate: 89 mm



    Air hole/air inlet/air fitting

    Air hole/air inlet: 1/4NPT

    Center distance between nut and air inlet: 44.5 mm



    Cover plate

    Top plate diameter (width): 160 mm

    Diameter of bottom cover (width): 160 mm



    Rubber bellows

    Rubber bellows diameter: 222 mm

    Compressed height: 100 mm / 4.1 inches

    Maximum height: 160 mm

    Working stroke: 60 mm

    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :No of Girdle Hoop


    SPRING FEATURES

    LOAD RANGE(ISOLATOR)........

    .640-3900|b

    DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

    USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

    USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

    ASSEMBLY WE I GHT

    FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

    NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in


    AIRSUSTECH air spring 1B7459 For MISSILE ASSEMBLY FIXTURE:


    W01-358-7459 Firestone Suspension Air Springs For Missile Assembly Fixture




    W01-358-7459 Firestone Suspension Air Springs For Missile Assembly FixtureW01-358-7459 Firestone Suspension Air Springs For Missile Assembly Fixture

    Goodyear Air Spring OE NO.Goodyear Air Spring OE Bellows NO.Goodyear order NO.Bumper or notGoodyear Air Spring OE NO.
    RETAINER RING5782091570000020094258YRETAINER RING
    2BG-8034 AIR SPRING FLEX MEMBER5782380340000420642557Y2BG-8034 AIR SPRING FLEX MEMBER
    2BG-8077FORD OTOSAN AIR SPRING5782380772000420715680Y2BG-8077FORD OTOSAN AIR SPRING
    2BG-8126 AIR SPRING FLEXMEMBER JOST5782381261000420692287N2BG-8126 AIR SPRING FLEXMEMBER JOST
    2B9-8325 AIR SPRING FLEX MEMBER5782383250000420635338Y2B9-8325 AIR SPRING FLEX MEMBER
    1B9-2015789122010000020054257N1B9-201
    1B9-2015789122010000420116161Y1B9-201
    ENIDINE YI-1B9-2015789122010001920094261NENIDINE YI-1B9-201
    1B9-2025789122020000020094262Y1B9-202
    1B9-2025789122020000420116162N1B9-202
    ENIDINE YI-1B9-2025789122020001920094263YENIDINE YI-1B9-202
    1B9-2045789122040000020094264Y1B9-204
    1B9-2045789122040000420116163Y1B9-204
    ENIDINE YI-1B9-2045789122040001920094266NENIDINE YI-1B9-204
    1B9-2055789122050000020094267Y1B9-205
    1B9-2055789122050000420116164Y1B9-205
    ENIDINE YI-1B9-2055789122050001920094268YENIDINE YI-1B9-205
    1B9-2075789122070000020094269N1B9-207
    1B9-2075789122070000420116165Y1B9-207
    ENIDINE YI-1B9-2075789122070001920094270NENIDINE YI-1B9-207
    1B9-2085789122080000020094271Y1B9-208
    1B9-2085789122080000420116166Y1B9-208
    ENIDINE YI-1B9-2085789122080001920094272NENIDINE YI-1B9-208
    1B9-2155789122150000020094277Y1B9-215
    ENIDINE YI-1B9-2155789122150001920094278YENIDINE YI-1B9-215
    1B9-2165789122160000020175039Y1B9-216
    1B9-2165789122160000420175183Y1B9-216
    P 1B9-2025789122170009520805668NP 1B9-202
    C 1B9-2025789122180009420810946YC 1B9-202
    C 1B9-2075789122190009420811429YC 1B9-207
    3B12-335 Bellows Air Spring3B12-33520141254N3B12-335 Bellows Air Spring
    3B12-336 HENDRICKSON HEBRON 0046455789323360000020141257Y3B12-336 HENDRICKSON HEBRON 004645
    3B12-336 HENDRICKSON HEBRON 0046455789323360000420141258Y3B12-336 HENDRICKSON HEBRON 004645
    3B12-3375789323370000020156098Y3B12-337
    3B12-337 Bellows Air Spring3B12-33720156099N3B12-337 Bellows Air Spring
    3B12-3385789323380000020156259Y3B12-338
