SP1541 NB Dunlop Air Spring UK PNP3055 20118 Bellows Number 12”x2
QUALITY AIRSUSTECH 2B12x2 air spring replace SP1541 NB Dunlop
PRODUCTS FROM AIRSUSTECH
At AIRSUSTECH Systems and Components, we supply a wide range of
premium-quality AIRSUSTECH 2B12x2 air spring replace SP1541 NB
Dunlop products, equipment and accessories to clients across the
commercial and automotive market. Our Coventry team are known for
their expertise when it comes to helping you find the ideal
AIRSUSTECH 2B12x2 air spring replace SP1541 NB Dunlop product to
meet your needs. Visit us in Coventry for expert advice on all
things AIRSUSTECH 2B12x2 air spring replace SP1541 NB Dunlop.
AIRSUSTECH 2B12x2 CROSS OTHER OEM:
| Cross Brand | OEM Code | Cross Brand | OEM Code |
| YS-V | YS- 280-2V YS-V (pneumatic bomb):YS 280 2V YS-V (pneumatic bomb):YS2802V | GOODYEAR | 2B12-2452 ; 2B12 2452 ; 2B122452 ; 578 9 2 3 2452 5789232452 578-92-3-2452 |
| DUNLOP (FR) | SP 1541 NB; SP1541 NB; SP1541; (12x2) 12x2 | NORGREN | M / 31122 ; M 31122 M 31122 (12”x2) 12”x2 12x2 |
| DUNLOP (UK) | PNP 3055 20 118 PNP3055 20118 PNP3055 20 118 | WEFORMA | WBZ-G 550 WBZ G 550 WBZG550 |
| FIRESTONE | W01-R58-4061 | CONTITECH | FD 412-18 1/2 M10 ; FD412-18 1/2 M10; FD412-18 1/2; 66334 |
YS-V (pneumatic bomb): YS- 280-2V
YS-V (pneumatic bomb):YS 280 2V
YS-V (pneumatic bomb):YS2802V
Firestone: W01-R58-4061 /
Firestone:W01 R58 4061 /
Firestone:W01R584061
Firestone style: 12" x2 NB /
Firestone style: 12"x2NB /
Firestone style: 12x2NB
Goodyear: 2B12 -2452 / 2B12 2452 / 2B122452
Goodyear Bag No.: 578-92-3-2452 /
Goodyear Bag No.:578 92 3 2452/
Goodyear Bag No.:5789232452
Springride: 2B12-2452 /
Springride: 2B12 2452 /
Springride: 2B122452
Springride bladder number: 578 92 3 2452
Springride bladder number: 5789232452
Dunlop France: 12"x2 SP1541NB
Dunlop UK (Pneuride): PNP 30552 01 18 / PNP305520118
Norgren: M/31122 / M 31122 / M31122
Nominal diameter (inch) x number of turns: 12" x2/ 12"x2 / 12x2
Parker: 12"x2 9109041
WEFORMA: WBZ-G 550 / WBZ-G550 / WBZG550
Altaico: 140596
Altaico skin bag: A2 300/K01 / A2300/K01 / A2300K01
Pared (new): 2B12-452 / 2B12 2452 / 2B122452
Pared New Skin Bag No.: 578-92-3-2452 /
Pared New Skin Bag No.: 578 92 3 2452/
Pared New Skin Bag No.: 5789232452
Rubena: 12" x2 / 12"x2 / 12x2
Oria: 12" x2/ 12"x2 / 12x2
Granning 15813
Gigant 881202
Weweler USN 510011KD / USN510011KD
Gigant 700881202

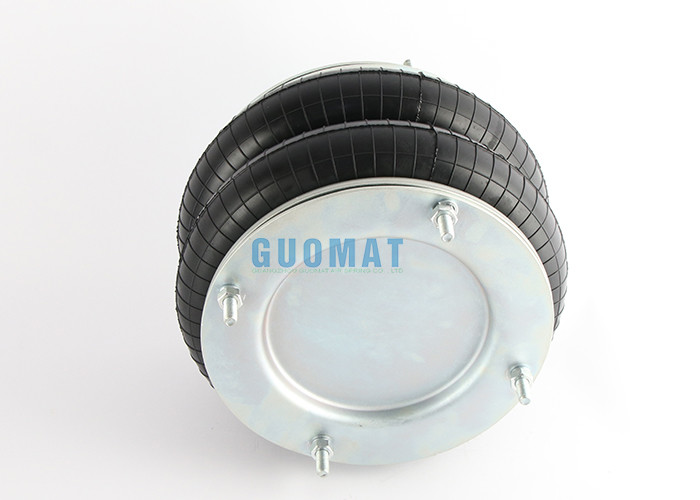

AIRSUSTECH 2B12x2 Industrial Convoluted Air Spring Specifications
Industrial Air Spring AIRSUSTECH 2B12x2:
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Diameter max at 7 bar:300MM
Stroke of Rubber Bellows:74mm-260m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The
Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides
an alternative to bolt installation system. It is inside defect
within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the
rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality
control in the factory. Allows 100% of the leak test before
shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer,
two layer cord - reinforced fabrics, and a cover. Construction of a
natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent
major damage to the vehicle or suspension in the event of a sudden
loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the
complex type spring bellows.
