Goodyear 2B12-2452 Industrial Air Springs 2 Convuleted GIGANT
881202 In Paper Mills
AIRSUSTECH 2B12x2 CROSS OTHER OEM:
| Cross Brand | OEM Code | Cross Brand | OEM Code |
| CONTITECH | FD 412-18 1/2 M10 ; FD412-18 1/2 M10; FD412-18 1/2; 66334 | GOODYEAR | 2B12-2452 ; 2B12 2452 ; 2B122452 ; 578 9 2 3 2452 5789232452 578-92-3-2452 |
| DUNLOP (FR) | SP 1541 NB; SP1541 NB; SP1541; (12x2) 12x2 | NORGREN | M / 31122 ; M 31122 M 31122 (12”x2) 12”x2 12x2 |
| DUNLOP (UK) | PNP 3055 20 118 PNP3055 20118 PNP3055 20 118 | WEFORMA | WBZ-G 550 WBZ G 550 WBZG550 |
| FIRESTONE | W01-R58-4061 | | |
YS-V (pneumatic bomb): YS- 280-2V
YS-V (pneumatic bomb):YS 280 2V
YS-V (pneumatic bomb):YS2802V
Firestone: W01-R58-4061 /
Firestone:W01 R58 4061 /
Firestone:W01R584061
Firestone style: 12" x2 NB /
Firestone style: 12"x2NB /
Firestone style: 12x2NB
Goodyear: 2B12 -2452 / 2B12 2452 / 2B122452
Goodyear Bag No.: 578-92-3-2452 /
Goodyear Bag No.:578 92 3 2452/
Goodyear Bag No.:5789232452
Springride: 2B12-2452 /
Springride: 2B12 2452 /
Springride: 2B122452
Springride bladder number: 578 92 3 2452
Springride bladder number: 5789232452
Dunlop France: 12"x2 SP1541NB
Dunlop UK (Pneuride): PNP 30552 01 18 / PNP305520118
Norgren: M/31122 / M 31122 / M31122
Nominal diameter (inch) x number of turns: 12" x2/ 12"x2 / 12x2
Parker: 12"x2 9109041
WEFORMA: WBZ-G 550 / WBZ-G550 / WBZG550
Altaico: 140596
Altaico skin bag: A2 300/K01 / A2300/K01 / A2300K01
Pared (new): 2B12-452 / 2B12 2452 / 2B122452
Pared New Skin Bag No.: 578-92-3-2452 /
Pared New Skin Bag No.: 578 92 3 2452/
Pared New Skin Bag No.: 5789232452
Rubena: 12" x2 / 12"x2 / 12x2
Oria: 12" x2/ 12"x2 / 12x2
Granning 15813
Gigant 881202
Weweler USN 510011KD / USN510011KD
Gigant 700881202
| Brand | Code |
|---|
| GIGANT | 881202 |
| GRANNING | 15813 |
| WEWELER | USN 5100 11 KD |

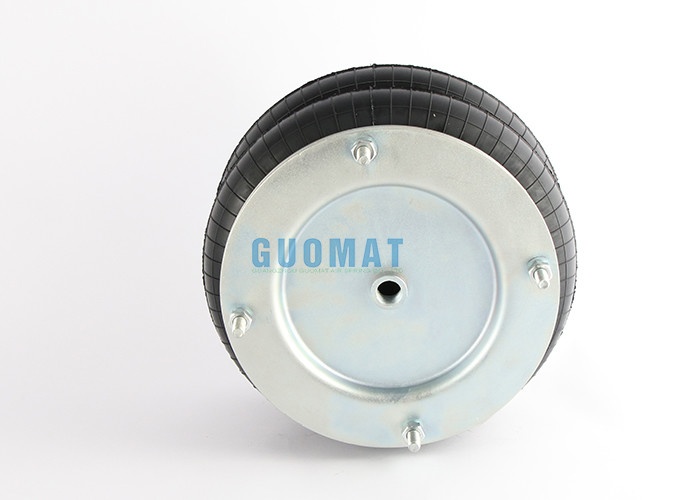

AIRSUSTECH 2F10X2 Industrial Convoluted Air Spring Specifications
Industrial Air Spring AIRSUSTECH 2F10X2:
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Diameter max at 7 bar:300MM
Stroke of Rubber Bellows:74mm-260m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The
Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides
an alternative to bolt installation system. It is inside defect
within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the
rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality
control in the factory. Allows 100% of the leak test before
shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer,
two layer cord - reinforced fabrics, and a cover. Construction of a
natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent
major damage to the vehicle or suspension in the event of a sudden
loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the
complex type spring bellows.
