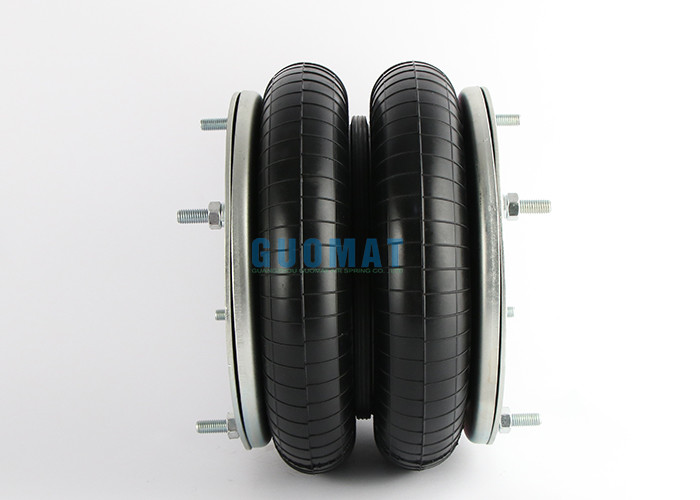

Air Spring 88554 AIRSUSTECH 2B12X2 Rubber Bellows With Stamped Flange Plate

AIRSUSTECH 2B12X2 replaces Air Spring Code 88554 Pneumatic product description:

The air spring shock absorber AIRSUSTECH 2B12X2 replaces Air Spring Code 88554 Pneumatic can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded

• In order to press the air spring shock absorber AIRSUSTECH 2B12X2 replaces Air Spring Code 88554 Pneumatic to the minimum height, a restoring force is required. Usually, this is achieved by applying a load

• The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 2B12X2 replaces Air Spring Code 88554 Pneumatic must be used to absorb the force

• Before disassembling the air spring shock absorber AIRSUSTECH 2B12X2 replaces Air Spring Code 88554 Pneumatic , the internal air must be released to prevent accidents and personal injury.

• During operation, the rubber air spring shock absorber AIRSUSTECH 2B12X2 replaces Air Spring Code 88554 Pneumatic shall not be in contact with other parts

AIRSUSTECH NO .: 2B12X2 Cross OEM Original Equipment Manufacturer:

AIRSUSTECH 2B12X2

AIRSUSTECH NO .: 2B12X2 refer to 88554

AIRSUSTECH rubber bellows 12X2

High Temp. code 88554

GART T271/2 (other code GART 271.2.200)

other part number:

IVE-CO98460983;

B.P.W : 02.200.21.90.0 ;

CF GOMMA : 88554

We are producing 2B12X2 this kind of the air spring which can replace Air Spring 88554 ；

Specifications and Detail Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter (Width): 210 mm

Bottom Cover Plate Diameter (Width): 210 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Stroke of Rubber Bellows:75mm-300m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Rubber material Standard up to 70°C natural rubber

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
