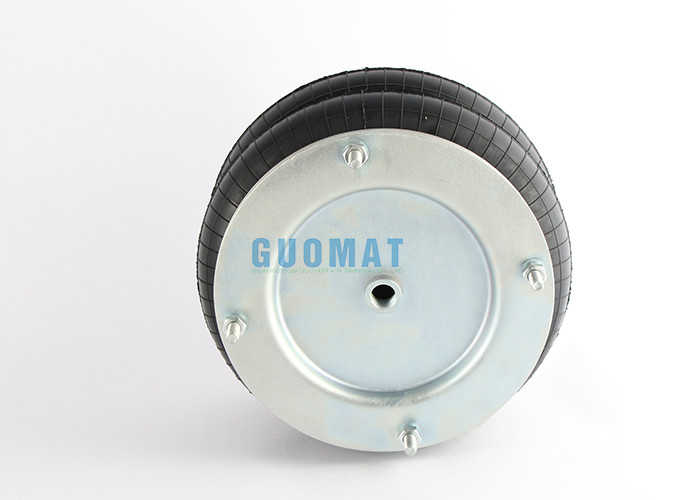

AIRSUSTECH 2B12X2 is produced by AIRSUSTECH factory. AIRSUSTECH air
spring 2B12X2 double scroll airbag can completely replace
W01-R58-4061 Firestone Air Bags ; the technical parameters of
AIRSUSTECH 2B12X2 are the same as W01-R58-4061 Firestone Air Bags ,
indicating AIRSUSTECH 2B12X2 gasScroll industrial air springs will
not use internal flexible parts of molded beads.The number of
rubber bellows is 25, and the flexible piece is connected to the
end of the bracket by clamping the material between the top plate
and the bottom plate, and then adjusting it to a suitable diameter.
AIRSUSTECH 2B12X2 Quick Details:
Surgery: double action
Stroke: 225 mm
air Port size: G1/2
Nominal diameter: 12" inch
Convolution number: 2 or double
Frictionless operation
No maintenance or lubrication required
Ideal for short stroke, high force applications
High vibration isolation level
easy installation
AIRSUSTECH 2B12X2 Cross other OEM:
AIRSUSTECH NO. 2B12X2
Firestone W01-R58-4061
Firestone W01 R58 4061
Firestone W01R584061
Firestone Part Number:W01-R58-4061
Firestone Part Number:W01 R58 4061
Firestone Part Number:W01R584061
Norgren NO. M/31122
Norgren NO. M 31122
Norgren NO. M31122
Weweler USN 510011KD
Contitech FD 412-18 1/2 M10
Order No 60040070 ST 20301.F Air Spring
Gigant 881202
Firestone W01 R58 4061
Granning 15813
Goodyear 2B12-2452 Ø260
Goodyear 578-92-3-2452 Rp 1/2"
Airtech 2B-300 / 113300
Weight (Kg): 6,42 QIP: 45
Order No 60040071 ST 20301-01.F Air Spring
BPW HB10350
Contitech FD 412-18 P01
Fruehauf UJB 0985
Firestone 12 x 2 NB
SAE-SMB M063796
Firestone W01-R58-4073 Ø260
Granning 15814 Goodyear 2B12-2457
Goodyear 578-92-3-2452 M16x1.5
Airtech 2B -300 / 113301 4xM10x1.5
Specifications and Detail Technical Parameters:Style12" x2
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
Material top and bottom plate:Steel
Rubber Bellows
Stroke of Rubber Bellows:75mm-300m
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Rubber material Standard up to 70°C natural rubber
