    Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1B12-313
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker

    Firestone W01-358-7039 Industrial Air Springs Isolator For SOLAR TRACKER


    1B7039 OEM Original Manufacturer:


    Firestone Part Number:W01-358-7039 ,


    Firestone Part Number: W01 358 7039 ,


    Firestone Part Number:W013587039 ,


    Firestone Part Number:W01-358-7039,


    Firestone Part Number:W013587039,


    Firestone Part Number:WO1-358-7039,


    Firestone Part Number:WO13587039


    Goodyear Original:1B12-313

    Goodyear Original:1B12 313

    Goodyear Original:1B12313


    ContiTech Part Number:FS 330-14 CI 1/4 NPT OS

    ContiTech Part Number:FS330-14 CI 1/4 NPT OS

    ContiTech Part Number:FS330-14CI 1/4 NPT OS

    ContiTech Part Number:FS 330-14 CI 1/4 NPT

    ContiTech Part Number:FS330-14 CI 1/4 NPT

    ContiTech Part Number:FS330-14CI 1/4 NPT

    ContiTech Part Number:64596,

    ContiTech Part Number:FS330-11474

    ContiTech Part Number:FS330 11474

    ContiTech Part Number:FS 330-11474


    Firestone W01-358-9039 reversible sleeve air bag replaces Holland-Neway 90557001, Ridewell 1013589039C, Watson Chalin AS-0012, Hendrickson S2064/S11650.

    Neway 90557226
    Manufacturer: Goodyear
    Origin: Mexico
    Genuine Goodyear 1B12-313 air spring.
    Cross: Firestone W01-358-7040 , ContiTech 64596, FS330-11474 and Neway 90557226
    Cross-references cannot guarantee that the part will be suitable for any particular application.



    1B12-313 Goodyear single bellows air spring

    Goodyear Part number: 1B12-313

    Bellows type: single

    Ultraman bellows Part number: SP1B22A

    Firestone bellows Part number: Not applicable

    Goodyear Bellows number: 578-91-3-301

    Contitech bellows Part number: FS 330-11

    Triangle bellows Part number: 6374

    Base plate/neutron type:

    Number of top plate holes/studs: 3

    Top plate diameter: 9

    Top plate C to C diameter: 6.2

    Base plate hole bolt Qyt: 2

    Base plate diameter: 9

    Diameter of base plate C to C: 6.2

    Base plate part number:

    Bottom plate alignment: parallel

    Bumper: No

    bracket:

    Minimum height: 2.3
    Maximum height: 7.2


    Bellows industrial air spring, single-turn, 330 cm2 effective area, 14 cm maximum stroke, crimped bead plate, internal thread mounting thread, 1/4 NPT, offset

    Compressed heightMaximum stroke
    2.01"5.08"
    Maximum deployment heightInlet type
    7.09"empire
    The maximum diameterAir inlet
    13.5"1/4"
    Maximum inflation pressureseries
    120 psiC
    Bellows typelowest temperature
    Single twist-76°F
    weightMaximum temperature
    9.48 pounds.158 degrees F

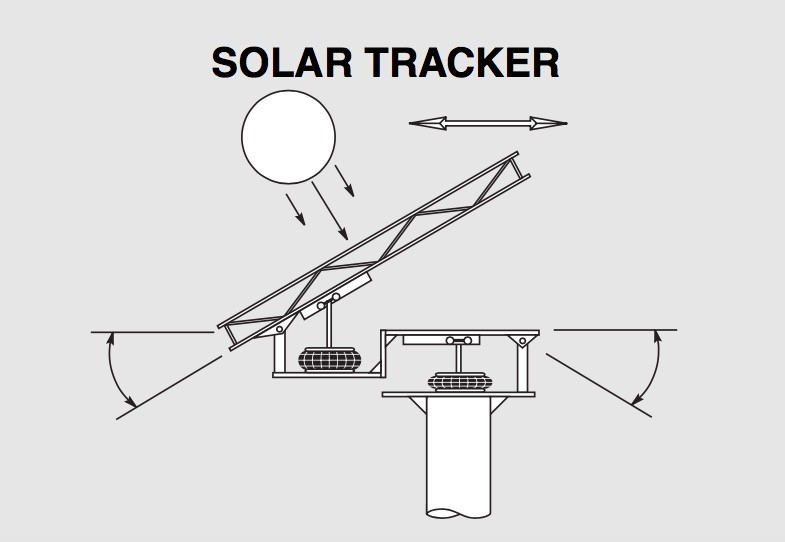

    1B7039 Isolator For SOLAR TRACKER:

    Firestone W01-358-7039 Industrial Air Springs Isolator For Solar TrackerFirestone W01-358-7039 Industrial Air Springs Isolator For Solar TrackerFirestone W01-358-7039 Industrial Air Springs Isolator For Solar Tracker
