W01-358-7605 Firestone Air Spring Style 116-1 Max Height 177.8mm
For Big Stroke Isolator
AIRSUSTECH 1B7605 Cross OEM Original Equipment Manufacturer:
AIRSUSTECH Part Number:1B7605
Firestone Part Number : W01-358-7605
Firestone Part Number : WO1-358-7605,
Firestone Part Number : WO13587605
Contitech Part Number : FS 120-12 CI 3/4 NPT CA
Contitech Part Number : FS120-12 CI 3/4 NPT CA
Contitech Part Number : FS120-12 CI 3/4NPT CA
Contitech Part Number : FS 120-12
Contitech Part Number : FS120-12
Contitech Part Number : FS12012
Goodyear Part Number:1B8-580
Firestone Part Number : W01 35 7605
Goodyear Part Number:1B8580
Firestone Part Number : W013587605
Goodyear Part Number:1B8 580
AIRSUSTECH 1B7605 refer to W01-358-7605 Firestone product
description:
The air spring shock absorber AIRSUSTECH 1B7605 refer to
W01-358-7605 Firestone can only push the bellows towards the
workpiece, otherwise it must be equipped with a stroke limiter at
the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber AIRSUSTECH 1B7605
refer to W01-358-7605 Firestone to the minimum height, a restoring
force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the
air spring shock absorber AIRSUSTECH 1B7605 refer to W01-358-7605
Firestone must be used to absorb the force
• Before disassembling the air spring shock absorber AIRSUSTECH
1B7605 refer to W01-358-7605 Firestone , the internal air must be
released to prevent accidents and personal injury.
• During operation, the rubber air spring shock absorber AIRSUSTECH
1B7605 refer to W01-358-7605 Firestone shall not be in contact with
other parts
AIRSUSTECH 1B7605 metric Technical data
❶Nut/blind nut
Top plate screw (nut) teeth: 2X3/8
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8
The screw center distance of the bottom cover plate: 70 mm
❷Air hole/air inlet/air fittings
Air hole/air inlet: 1 / 4-18NPTF
The screw center distance between the air hole and the nut: 35 mm
❸Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm

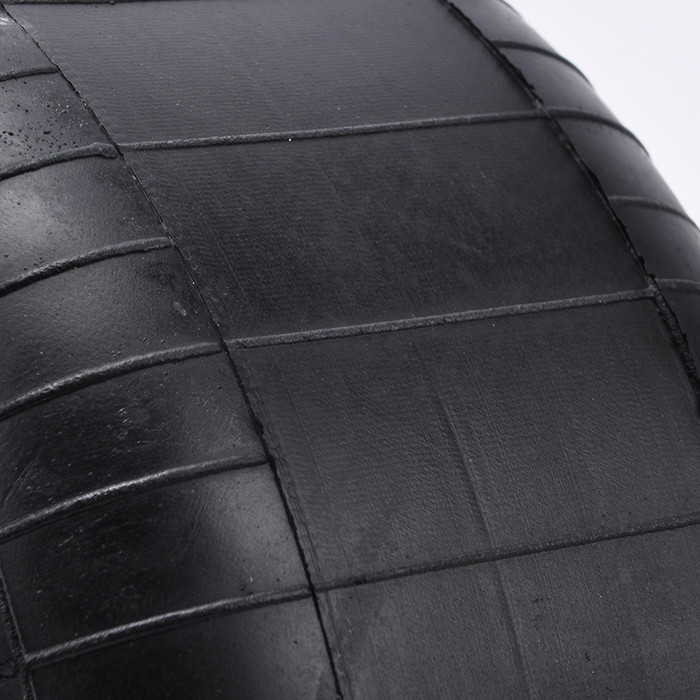

Bell rubber bellows
Maximum diameter of rubber bellows: 240 mm
Natural diameter of rubber bellows: 215 mm
Working stroke: minimum 60 mm to maximum 180 mm
Maximum height: 180 mm
Minimum height: 60 mm
Stroke height: 120mm
❺Bumper block/bumper block
No bumper block
❻Belt loop/Belt loop
With belt loop: not a belt loop
AIRSUSTECH 1B7605 inch Technical data:
| Blind nut center (inch) | 2.75 | Maximum diameter @ 100 PSIG (inches) | 9.6 |
| Design height | 5.5 | Maximum height (inch) | 6.2 |
| Load (at design height): 40 psig (lbs) | 940 | Maximum stroke (inch) | 4.2 |
| Load (at design height): 60 psig (pounds) | 1410 | Minimum usable height (inches) | 2 pcs |
| Load (at design height): 80 psig (lbs) | 1930 | 80PSI force at 1 inch stroke (lbs) | 2980 |
| Natural frequency (@ 80 psig) (cpm) | 139 | Force applied at 80 PSI in a 3-inch stroke (pounds) | 2240 |
| Percentage of isolation when the mandatory frequency is 400 CPM | 86.3 | Maximum thrust for maximum stroke @ 80PSI (pounds) | 1460 |
| Percentage of isolation when the mandatory frequency is 800 CPM | 96.9 | material | 2-layer standard line |
| Isolation percentage at forced frequency 1500 CPM | 99.1 | Bead plate type | 1 piece |
