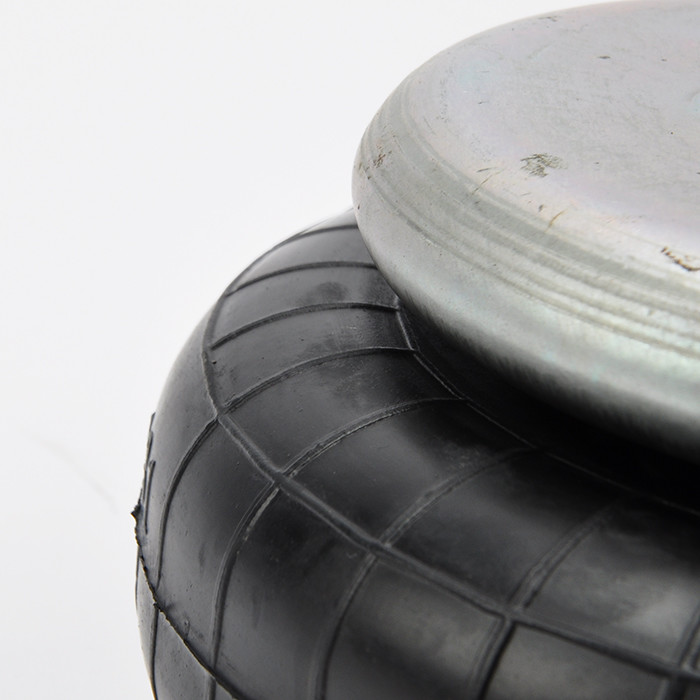

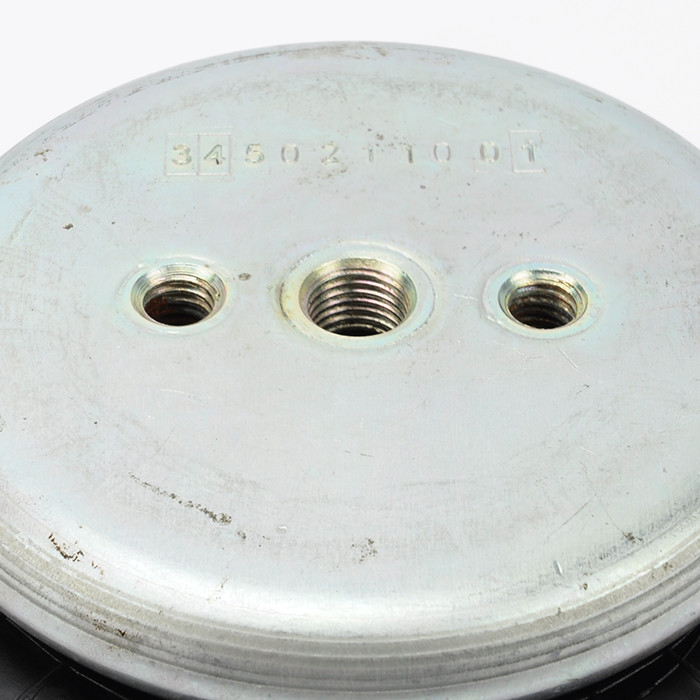

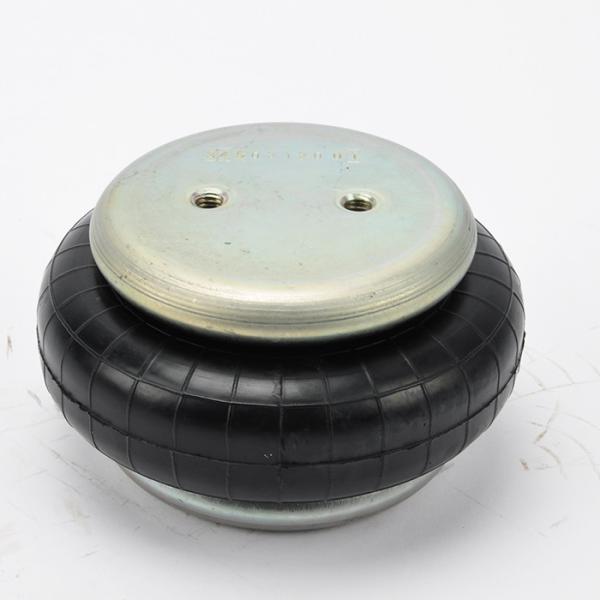

    W01-358-7001 Firestone Air Bags Rubber Bellows W01-358-0010 MAX H. 88.9MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B7001
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W01-358-7001 Firestone Air Bags Rubber Bellows W01-358-0010 MAX H. 88.9MM

    W01-358-7001 Firestone Air Bags Rubber Bellows Only W01-358-0010 MAX H. 88.9MM


    AIRSUSTECH 1B7001 product description:


    The air spring shock absorber AIRSUSTECH 1B7001 Replace W01-358-7001 Firestone Air Bags can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded


    • In order to press the air spring shock absorber AIRSUSTECH 1B7001 Replace W01-358-7001 Firestone Air Bags to the minimum height, a restoring force is required. Usually, this is achieved by applying a load


    • The entire bearing surface of the upper and lower plates of the air spring shock absorber AIRSUSTECH 1B7001 Replace W01-358-7001 Firestone Air Bags must be used to absorb the force


    • Before disassembling the air spring shock absorber AIRSUSTECH 1B7001 Replace W01-358-7001 Firestone Air Bags, the internal air must be released to prevent accidents and personal injury.


    • During operation, the rubber air spring shock absorber AIRSUSTECH 1B7001 Replace W01-358-7001 Firestone Air Bags shall not be in contact with other parts


    AIRSUSTECH 1B7001 Cross OEM Original Equipment Manufacturer:


    AIRSUSTECH Part Number:1B7001


    Firestone Part Number: W01-358-7001


    Firestone Part Number: W01 358 7001


    Firestone Part Number: W013587001


    Firestone Part Number: W01-358-6996


    Firestone Part Number: W01 3586996


    Firestone Part Number: W013586996


    Firestone Part Number: W01-358-0010


    Firestone Part Number: W01 358 0010


    Firestone Part Number: W013580010


    Firestone Part Number: WO1-358-7001


    Firestone Part Number: WO1 358 7001


    Firestone Part Number: WO13587001


    Firestone Part Number: WO1-358-6996


    Firestone Part Number: WO1 3586996


    Firestone Part Number: WO13586996


    Firestone Part Number: WO1-358-0010


    Firestone Part Number: WO1 358 0010


    Firestone Part Number: WO13580010


    Firestone Style 16



    AIRSUSTECH 1B7001 Technical Parameters
    Top Cover Plate Diameter115mm
    Bottom Cover Plate Diameter115mm
    Screw Center Distance44.5mm
    Distance Gas Hole Between Nut22.25 mm
    Gas Hole1/4NPTF
    Screw (Nut) Tooth2pcsX3/8-16UNC
    Rubber Bellows DiameterNatural Φ135 mm
    The HeightNatural 80 mm

    AIRSUSTECH 1B7001 Single Curved Air Spring Specification:


    Airmount / Airstroke actuator

    Maximum diameter @ 100 PSIG (inch): 6
    Maximum height (inches): 3.3
    Maximum stroke (inch): 1.4
    Minimum usable height (inches): 1.9
    16B air spring
    Type 1 bead plate
    (2) 1.75" center 3/8-16 blind nut
    1/4" NPT center port
    16B 2BN 1/4NPT click rate.
    1 inch (lb): 930
    Maximum stroke (lbs): 580
    Material: 2 layers of standard wires
    Bead plate type: 1
    Blind nut center (inch): 1.75
    Design height: 3
    40 psig (pounds): 420
    60 psig (pounds): 640
    80 psig (pounds): 880
    Natural frequency (@80 psig) (cpm): 237
    800 CPM percentage: 90.3
    1500 cost-per-thousand impressions percentage: 97.4


    W01-358-7001 Firestone Air Bags Rubber Bellows W01-358-0010 MAX H. 88.9MM

    W01-358-7001 Firestone Air Bags Rubber Bellows W01-358-0010 MAX H. 88.9MMW01-358-7001 Firestone Air Bags Rubber Bellows W01-358-0010 MAX H. 88.9MM


    W01-358-7731 131 750 650W01-358-7912 215 750 846
    W01-358-1201 153-2 750 746W01-358-5135 121 750 606
    W01-358-6976 210 750 795 MW01-358-7012 7012 751 540
    W01-358-7737 138-1.5 750 670W01-358-7914 312 751 360
    W01-358-3000 noir 1M1A-0 751 016W01-358-5305 1T14C-1 751 680
    W01-358-6976 328 751 011 MW01-358-7019 333 751 023
    W01-358-7742 131 750 652W01-358-7919 321 750 985
    W01-358-3000 rouge 1M1A-0 751 015W01-358-5307 1T14C-1 751 685
    W01-358-6977 115 750 530 MW01-358-7019 333 751 023
    W01-358-7751 160 750 770W01-358-7921 323 751 400
    W01-358-3001 noir 1M1A-0 751 017W01-358-5310 1T14C-1 751 670
    W01-358-6978 215 750 840 MW01-358-7023 19 750 155
    W01-358-7752 160 750 772W01-358-7925 28 750 385
    W01-358-3001 rouge 1M1A-0 751 017 MW01-358-5405 1T14C-3 751 710
    W01-358-6979 200 750 680 MW01-358-7025 25 750 350
    W01-358-7760 312 750 860W01-358-7926 314 750 945
    W01-358-3002 noir 2M1A 751 523W01-358-5674 70-P-13 79 866
    W01-358-6980 323 750 990 MW01-358-7030 25 750 355
    W01-358-7761 312 750 870W01-358-7928 210 750 796
    W01-358-3002 rouge 2M1A 751 520W01-358-5708 1T14C-7 751 745
    W01-358-6981 314 750 940 MW01-358-7040 19-.75 750 175
    W01-358-7772 200 750 680W01-358-7929 205 750 754
    W01-358-3003 1M1A-1 751 018 6983 320 750 965 MW01-358-5712 1T14C-7 751 740
    W01-358-7789 20-2 750 234W01-358-7042 19-.75 750 176
    W01-358-3004 2M1A 751 524W01-358-8003 314 750 940
