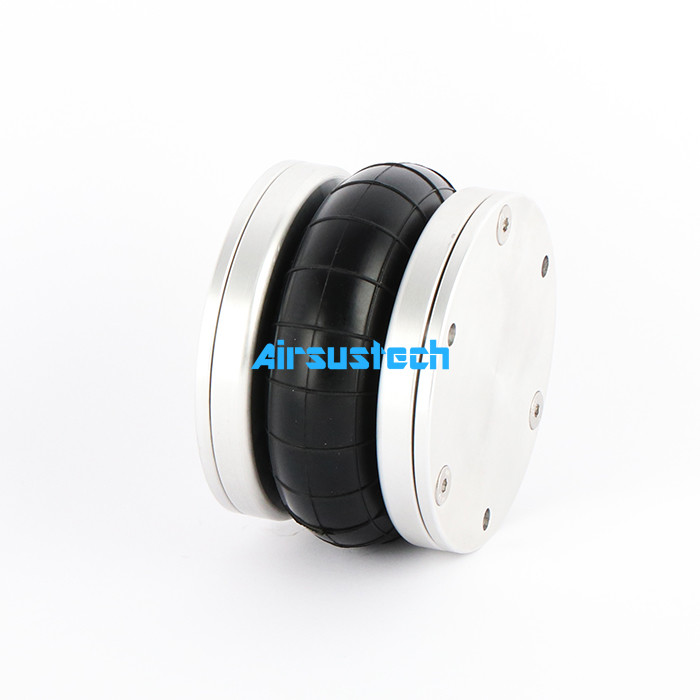

    4.5X1 Dunlop Air Bag SP2008 Suspension For Oscillating Doctor Paper Calender Roll

    Ask Lasest Price
    Brand Name : Airsustech
    Model Number : 4.5X1
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    4.5X1 Dunlop Air Bag SP2008 Suspension For Oscillating Doctor Paper Calender Roll

    4.5X1 Dunlop Air Springs SP2008 Suspension For OSCILLATING DOCTOR FOR PAPER CALENDER ROLL


    Airsustech 4.5X1 Corss OEM:


    Airsustech :4.5X1

    DUNLOP 4 1/2 X 1 |

    Dunlop:SP2008

    Dunlop:SP 2008

    Dunlop 4.5x1.Aluminuim

    FIRESTONE W01R584043

    FIRESTONE W01-R58-4043

    FIRESTONE W01 R58 4043


    Dunlop bellows are very effective vibration isolators, suitable for many types of equipment. By carefully choosing a bellows with the correct natural frequency, they can significantly reduce the vibrations transmitted in most industrial and commercial applications.



    Medium: compressed air
    Operation mode: single action
    Stroke length: 40 mm
    Stomatal size: G3/8
    Nominal diameter: 4-1/2"
    Convolution number: 2
    Operation mode: single action
    Working pressure: 0 ... 8 bar
    Working temperature: -30 ... 50°C
    Stroke length: 80 mm
    Theoretical power: 5750 N
    Certification-REACH: available on request
    Certification-RoHS compliant: available on request
    Certification-IOS: 9001
    Classification-eClass 11: 51010390
    Classification-HS Code: 84123100
    Classification-HTS code: 8412310000
    Classification-UNSPCS code: 31251504
    Size-Diameter: 125.0 mm
    Size-Length: 65.0 mm
    Size-weight: 0.950 kg
    Size-Unit of Measurement: EA
    Performance-shelf life: 5 years


    4.5X1 Dunlop Air Bag SP2008 Suspension For Oscillating Doctor Paper Calender Roll4.5X1 Dunlop Air Bag SP2008 Suspension For Oscillating Doctor Paper Calender Roll


    The drawing of the plate for Airsustech :4.5X1:

    4.5X1 Dunlop Air Bag SP2008 Suspension For Oscillating Doctor Paper Calender Roll4.5X1 Dunlop Air Bag SP2008 Suspension For Oscillating Doctor Paper Calender Roll


    Air springStd Rubber
    Single Convolutes
    Dunlop 2.75x1.AluminuimSP2714
    Dunlop 2.75x1.CompositeSP2714
    Dunlop 4.5x1.AluminuimSP2008
    Dunlop 6x1.CompositeSP1367
    Dunlop 6x1.AluminuimSP1367
    Dunlop 6x1.SteelSP1367
    Dunlop 8x1.SteelSP1218
    Dunlop 10x1.SteelSP2520
    Dunlop 12x1.SteelSP1216
    Dunlop 14.5x1.SteelSP1202

    Double Convolutes
    Dunlop 2.75x2.AluminuimSP2041
    Dunlop 2.75x2.CompositeSP2041
    Dunlop 4.5x2.AluminuimSP1457
    Dunlop 6x2.CompositeSP543
    Dunlop 6x2.AluminuimSP543
    Dunlop 6x2.SteelSP543
    Dunlop 8x2.SteelSP253
    Dunlop 9.25x2.SteelSP254
    Dunlop 10x2.SteelSP255
    Dunlop 12x2.SteelSP256
    Dunlop 12x2.SteelSP256
    Dunlop 14.5x2.SteelSP257
    Dunlop 14.5x2.SteelSP2283
    Dunlop 16x2.SteelSP2284
    Dunlop 16x2.SteelSP1129
    Dunlop 21.5x2.AluminuimSP1168
    Dunlop 26x2.AluminuimSP1370

    Triple Convolutes
    Dunlop 2.75x3.CompositeSP1887
    Dunlop 2.75x3.AluminuimSP1887
    Dunlop 4.5x3.AluminuimSP2857
    Dunlop 6x3.SteelSP2858
    Dunlop 6x3.AluminuimSP2858
    Dunlop 8x3.SteelSP2859
    Dunlop 10x3.SteelSP258
    Dunlop 10x3.SteelSP1574
    Dunlop 12x3.SteelSP259
    Dunlop 12x3.SteelSP1559
    Dunlop 12x3.SteelSP1559
    Dunlop 14.5x3.SteelSP1477
    Dunlop 14.5x3.SteelSP2007
    Dunlop 16x3.SteelSP1297
