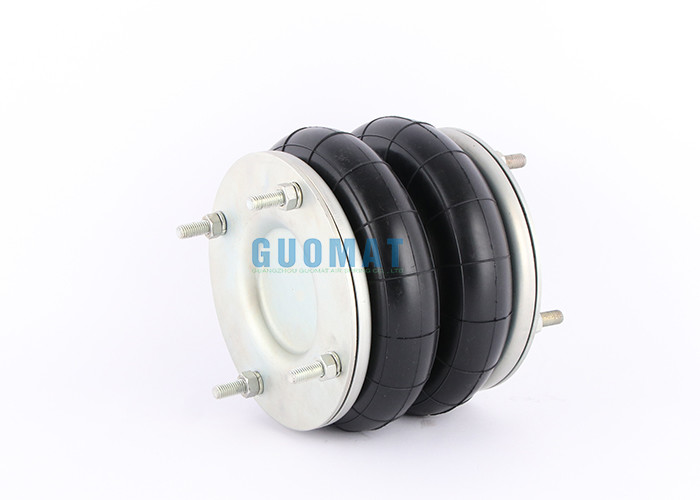

    SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press

    Ask Lasest Price
    Brand Name : Airsustech
    Model Number : 8X2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press

    SP253 Dunlop Air Spring Norgren M/31082 Compact Air Bellow For FORMING PRESS

    Airsustech 8X2 Cross OEM:


    Airsustech :8X2

    Dunlop:SP253

    Dunlop:SP 253

    Norgren:M/31082

    Norgren:M 31082

    Norgren:M31082


    Type

    Order No.

    Rubber bellows only

    66501

    with dismountable plates, G1/2 air inlet

    66505


    Min. pressure 0 bar
    Return force to min height ≤ 300 N
    Overall weight 3.5 kg


    Airsustech 8X2 Vibration isolation - dynamic characteristic values

    Design height H: recommended 200mm, minimum 180mm

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Force (Load) [kN]

    3.9

    5.3

    6.7

    8.2

    9.7

    11.3

    Spring rate [N/mm]

    76

    97

    118.5

    140

    161

    181.5

    4.1

    Natural frequency [Hz]

    2.2

    2.2

    2.1

    2.1

    2.1

    2.0


    Airsustech 8X2 Pneumatic application - static characteristic values

    Force F [kN]

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Height H [mm]

    220

    2.9

    4.03

    5.16

    6.41

    7.65

    8.98

    4.3

    200

    3.86

    5.27

    6.68

    8.21

    9.73

    11.3

    4.1

    150

    5.9

    8

    10.1

    12.4

    14.7

    16.9

    3.2

    100

    8.2

    10.9

    13.7

    16.6

    19.4

    22.4

    2


    Airsustech 8X2 air spring used for FORMING PRESS:

    SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press

    SP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming PressSP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming PressSP253 Dunlop Norgren Air Spring M/31082 Compact Air Bellow For Forming Press


    Other Norgen air springs models:


    ModelNominal Ø (inch) x convolutionsMaximum stroke (mm)Air Port size
    M/310212 3/4" x 120G1/4
    M/310222 3/4" x 245G1/4
    M/310232 3/4" x 365G1/4
    M/310414 1/2" x 1140G3/8
    M/310424 1/2" x 2280G3/8
    M/310616" x 1155G1/2
    M/310626" x 2155G1/2
    M/310818" x 195G3/4
    M/310828" x 2185G3/4
    M/310919 1/4" x 1105G3/4
    M/310929 1/4" x 1230G3/4
    M/3112112" x 1105G3/4
    M/3112212" x 2215G3/4
    M/3112312" x 3315G3/4
