1B7042 OEM Original Manufacturer:
Firestone Part Number:W01-358-7042 ,
Firestone Part Number: W01 358 7042 ,
Firestone Part Number:W013587042 ,
Firestone Part Number:W01-358-7042,
Firestone Part Number:W013587042,
Firestone Part Number:WO1-358-7042,
Firestone Part Number:WO13587042
Goodyear Original:1B12-313
Goodyear Original:1B12 313
Goodyear Original:1B12313
ContiTech Part Number:FS 330-14 CI 3/4 NPT OS
ContiTech Part Number:FS330-14 CI 3/4 NPT OS
ContiTech Part Number:FS330-14CI 3/4 NPT OS
ContiTech Part Number:FS 330-14 CI 3/4 NPT
ContiTech Part Number:FS330-14 CI 3/4 NPT
ContiTech Part Number:FS330-14CI 3/4 NPT
ContiTech Part Number:64596,
ContiTech Part Number:FS330-11474
ContiTech Part Number:FS330 11474
ContiTech Part Number:FS 330-11474
Neway 90557226
Manufacturer: Goodyear
Origin: Mexico

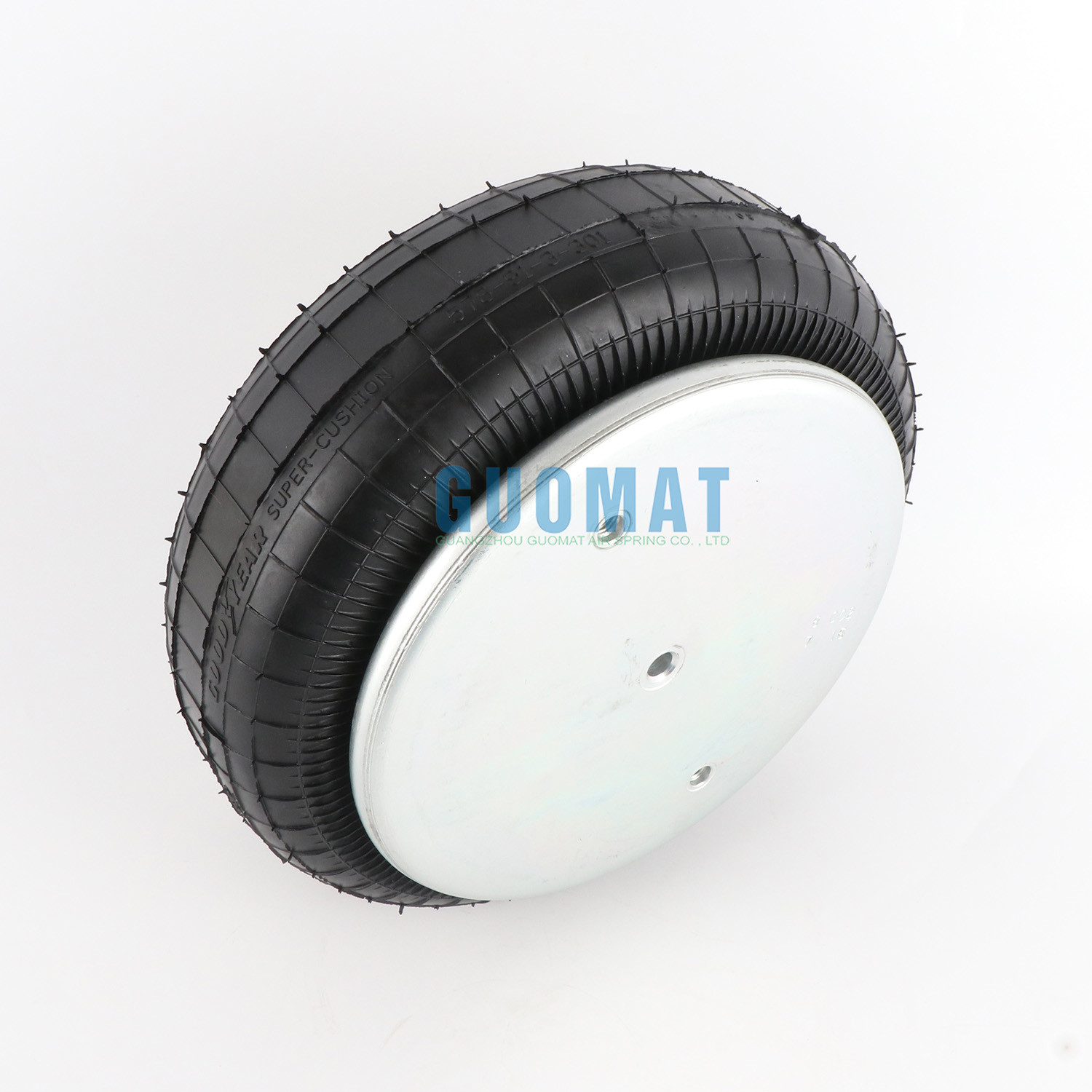

Genuine Goodyear 1B12-313 air spring.
Cross: Firestone W01-358-7040 , ContiTech 64596, FS330-11474 and
Neway 90557226
Cross-references cannot guarantee that the part will be suitable
for any particular application.
Bellows industrial air spring, single-turn, 330 cm2 effective area,
14 cm maximum stroke, crimped bead plate, internal thread mounting
thread, 1/4 NPT, offset
| Compressed height | Maximum stroke |
| 2.01" | 5.08" |
| Maximum deployment height | Inlet type |
| 7.09" | empire |
| The maximum diameter | Air inlet |
| 13.5" | 1/4" |
| Maximum inflation pressure | series |
| 120 psi | C |
| Bellows type | lowest temperature |
| Single twist | -76°F |
| weight | Maximum temperature |
| 9.48 pounds. | 158 degrees F |
Bellows type: single
Ultraman bellows Part number: SP1B22A
Firestone bellows Part number: Not applicable
Goodyear Bellows number: 578-91-3-301
Contitech bellows Part number: FS 330-11
Triangle bellows Part number: 6374
Base plate/neutron type:
Number of top plate holes/studs: 3
Top plate diameter: 9
Top plate C to C diameter: 6.2
Base plate hole bolt Qyt: 2
Base plate diameter: 9
Diameter of base plate C to C: 6.2
Base plate part number:
Bottom plate alignment: parallel
Bumper: No
bracket:
Minimum height: 2.3
Maximum height: 7.2
1B7042 Isolator For SHOCK ABSORBER TEST SYSTEM:
The utility model relates to an automobile shock absorber, in
particular to an automobile shock absorber testing system. This
kind of automobile shock absorber test system includes a test bench
connected to an acceleration sensor, a speed sensor and an
electromagnetic exciter, the acceleration sensor and the speed
sensor are connected to a data acquisition module, and the data
acquisition module is connected to a PC. The PC is connected to a
frequency converter, and the frequency converter is connected to an
electromagnetic vibration exciter. This kind of automobile shock
absorber test system has a simple structure, can ensure that the
test bench works at a given frequency, and has a PC to display,
print, and store the test results, and can be operated by a
man-machine interface.
