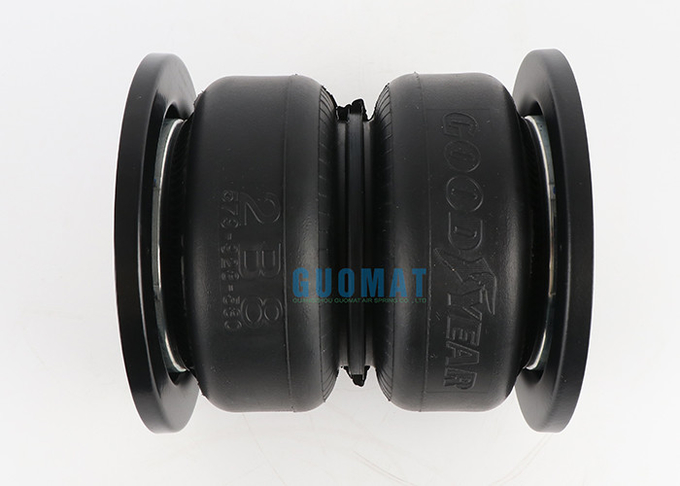

    2B8-550 Goodyear Air Spring Bellows NO. 2B8 579-923-530 For Bin Hoppper

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 2B8-550
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    2B8-550 Goodyear Air Spring Bellows NO. 2B8 579-923-530 For Bin Hoppper

    2B8-550 Goodyear Air Spring Bellows NO. 2B8 579-923-530 For Bin Hoppper


    2B8-550 Goodyear Air Spring Bellows NO. 579-92-3-530 product description:


    The air spring shock absorber 2B8-550 Goodyear Air Spring Bellows NO. 579-92-3-530 can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded


    • In order to press the air spring shock absorber 2B8-550 Goodyear Air Spring Bellows NO. 579-92-3-530 to the minimum height, a restoring force is required. Usually, this is achieved by applying a load


    • The entire bearing surface of the upper and lower plates of the air spring shock absorber 2B8-550 Goodyear Air Spring Bellows NO. 579-92-3-530 must be used to absorb the force


    • Before disassembling the air spring shock absorber 2B8-550 Goodyear Air Spring Bellows NO. 579-92-3-530 , the internal air must be released to prevent accidents and personal injury.


    • During operation, the rubber air spring shock absorber 2B8-550 Goodyear Air Spring Bellows NO. 579-92-3-530 shall not be in contact with other parts


    2B8-550 Goodyear Air Spring Cross OEM Original Equipment Manufacturer:

    Goodyear:2B8-150
    Goodyear:2B8-153
    Goodyear:2B8-550

    Goodyear:2B8 150
    Goodyear:2B8 153
    Goodyear:2B8 550


    Goodyear:2B8150
    Goodyear:2B8153
    Goodyear:2B8550

    ContiTech:FD 120 20 509 1/4 M8

    Goodyear Bellows NO.:578-92-3-530
    Goodyear Bellows NO.:578 92 3 530
    Goodyear Bellows NO.:578923530


    AIRSUSTECH 2B7325

    AIRSUSTECH rubber bellows 2B20-1

    Firestone: 7325
    Firestone:W01-358-7325
    Firestone:W01 358 7325
    Firestone:W013587325
    ContiTech:FD 120-20 509 1/4 M8
    ContiTech:FD 120 20 509 1/4 M8

    American Airlines Number: 8003-006
    Hendrickson Trailer ID: S-14395
    Mark Number: 227QS-32
    Triangle part number: 4509
    Triangle bellows number: 6392
    Watson & Charin ID: AS-0030
    Sauer Code: P10-754


    2B8-550 Goodyear Air Spring Specifications and Detail Technical Parameters


    ❶Nut/blind nut

    Top plate screw (nut) teeth: 2XM8X1.5
    The screw center distance of the top cover plate: 70 mm
    Screw (nut) teeth of the bottom cover plate: 2XM8X1.5
    The screw center distance of the bottom cover plate: 70 mm

    ❷Air hole/air inlet/air fittings
    Air hole/air inlet: G1 / 4
    Screw center distance between air hole and nut: 35 mm

    ❸Cover plate
    Top plate diameter: 141 mm
    Diameter of the bottom cover: 141 mm

    Bell rubber bellows
    Maximum diameter of rubber bellows: 225 mm
    Natural diameter of rubber bellows:195 mm
    Working stroke: minimum 75 mm to maximum 260 mm
    Maximum height: 274 mm
    Minimum height: 95mm
    Stroke height: 179mm

    ❺Bumper block/bumper block
    No bumper block

    ❻Belt loop/Belt loop
    There is a belt hoop: a belt hoop


    2B8-550 Goodyear Air Spring Bellows NO. 2B8 579-923-530 For Bin Hoppper2B8-550 Goodyear Air Spring Bellows NO. 2B8 579-923-530 For Bin Hoppper2B8-550 Goodyear Air Spring Bellows NO. 2B8 579-923-530 For Bin Hoppper


    5799225500000020035816Y2B8-5502B8-550
    2B8-55020095586N2B8-550 Bellows Air Spring2B8-550 Bellows Air Spring
    5799225500001920054210YENIDINE YI-2B8-550ENIDINE YI-2B8-550
    5799225500004220561425Y2B8-550 INTERNATIONAL 3882214C12B8-550 INTERNATIONAL 3882214C1
    2B8-55220095591N2B8-5522B8-552
    5799225520001920095592YENIDINE YI-2B8-552ENIDINE YI-2B8-552
    2B8-55320095593N2B8-5532B8-553
    5799225530000420409616Y2B8-553 TRUCK AIR SPRING2B8-553 TRUCK AIR SPRING
    5799225530001920095594YENIDINE YI-2B8-553ENIDINE YI-2B8-553
    5799225530002120119143Y58205 2B8-55358205 2B8-553
    5799225540000020095595Y2B8-5542B8-554
    5799225540001920095596YENIDINE YI-2B8-554ENIDINE YI-2B8-554
    5799225550003820439367Y2B8-555 HEND - FOR COSTING2B8-555 HEND - FOR COSTING
    5799225570009020810736YC 2B6-535C 2B6-535
    5799225570009420811198YC 2B6-535C 2B6-535
    5799225580009020811609YC 2B7-540C 2B7-540
    5799225580009420810737YC 2B7-540C 2B7-540
    5799225590009020810738YC 2B7-842C 2B7-842
    5799225600009020811615YC 2B7-541C 2B7-541
    5799225620009420811617YC 2B8-550C 2B8-550
    5799227400000020095599Y2B7-7402B7-740
    5799228300001920106784YENIDINE YI-2B6-830ENIDINE YI-2B6-830
    2B6-83320095600N2B6-8332B6-833
    5799228330001920095601YENIDINE YI-2B6-833 METRICENIDINE YI-2B6-833 METRIC
    5799228350001920257581YENIDINE YI-2B6-835ENIDINE YI-2B6-835
    5799228390000020054211Y2B6-839 M2B6-839 M
    2B7-84020316800N2B7-8402B7-840
    5799228400001920117075YENIDINE YI-2B7-840ENIDINE YI-2B7-840
    5799228410009020811618YC 2B6-839 MC 2B6-839 M
    5799228420000020069561YKUHN 2B7-842 MKUHN 2B7-842 M
    2B7-84320588389N2B7-843 M2B7-843 M
    2B8-85020095602N2B8-850 METRIC2B8-850 METRIC
    5799228500001920095603YENIDINE YI-2B8-850ENIDINE YI-2B8-850
    5799228530000020221915YKUHN 2B8-853 (METRIC)KUHN 2B8-853 (METRIC)
    2B8-85420054212N2B8-854 M2B8-854 M
    5799228560009020806001YC 2B8-854C 2B8-854
