    FD 331-26 Contitech Suspension Air Springs 2B12-346 Goodyear 578923315

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 2B12-346
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    FD 331-26 Contitech Suspension Air Springs 2B12-346 Goodyear 578923315

    FD 331-26 Contitech Suspension Air Springs 2B12-346 Goodyear 578923315


    FD 331-26 Contitech Cross OEM:

    2B12-346 Manufacturer:GOODYEAR
    Triangle spring: 4541
    Firestone: 7550
    Histeer-Link manufacturer: 10325
    Kangdi Technology: 64599
    Watson & Chalin: AS-0087
    Euclid / Meritor (Meritor) aftermarket: E-FS7550
    ContiTech: FD331-26541
    Euclid / Meritor aftermarket: FS7550

    ManufacturerOEM REFERENCE

    GOODYEAR NO.


    CONTITECH

    2B12-346/

    2B12 346/

    2B12346


    FD 331-26 480/

    FD 331-26 541 /

    FD 331-26 541

    Firestone Bellows Number228-1.5
    Firestone part Number

    W01 358 7550 /

    W01 358 7555 /

    W01-358-7550 /

    W01-358 -7555

    GOODYEAR

    2B12-440 /

    2B12-346 /

    2B12 440 /

    2B12 346

    GOODYEAR-FLEXMEMBER

    578-92-3-315 /

    578923315 /

    578 92 3 315

    Triangle6375/4480
    HISTEER10315
    WATSON & CHALINAS-0087
    Histeer10315
    HS INDUSTRIES/LINK #10315
    Top Plate Number3271
    Piston Number3183
    Weight (Kg): 6,58 QIP: 50 Order No 60040156 ST 207555 Air Spring OEM References Cross References Neway XB-SPN-053-37 (BINKLEY) Contitech FD 331-26 480 Reyco 18813-01 Firestone 228-1.5 Reyco 20018-01 Firestone W01-358-7555 Goodyear 2B12-440 Ø9.00 Goodyear 578923315 3/4''-16UNF Automann SP2B22RB-7555 Ø12.00 1/4''-18NPT 1/2''-13UNC Airtech 2B-320 / 113341

    FD 331-26 Contitech air spring Size:


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 1 pcs X M12

    Top Cover Plate Combination Nut : M20,M12

    Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10

    Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : M12 , Combination Stud/Air Inlet Stud

    Cover Plate

    Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

    Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

    Rubber Bellows

    Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

    Compressed Height: 104 mm / 4.1 inches

    Maximum Height: 363mm / 14.3 inches

    Working Stroke : 259 mm / 10.2 inches

    Bumper block / Buffer block

    With Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Assembly Weight: 13.4 lbs

    Design Height: 9-11 inches

    Minimum Jounce Height: 3.55 inches

    Loading Capacity at 20 psig: 1,240 lbsf

    Loading Capacity at 60 psig: 3,720 lbsf

    Loading Capacity at 90 psig: 5,580 lbsf

    Maximum Diameter: 13.5 inches

    Operating Temperature: 57Cº to -54Cº

    Air Spring 7550 AS-0087 4541 10325
    Goodyear #: 2B12-346
    Bellow Type: Double
    Automann Bellow #: SP2B22RB
    Firestone Bellow #: 228C-1.5 was 228-1.5
    Goodyear Bellow #: 578-92-3-315
    Contitech Bellow #: FD 331-26
    Triangle Bellow #: N/A
    Bottom Plate/Pison Type:
    Top Plate Hole/Stud Qty: 2
    Top Plate Dia: 9 ,
    Top Plate C to C Diameter: 6.2
    Bottom Plate Hole Stud Qyt: 2
    Bottom Plate Dia: 9
    Bottom Plate C to C Diameter: 6.2
    Bottom Plate Part #:
    Bottom Plate Alignment: Parallel
    Bumper: Yes
    Bracket:
    Min Height: 3.8
    Max Height: 14.4

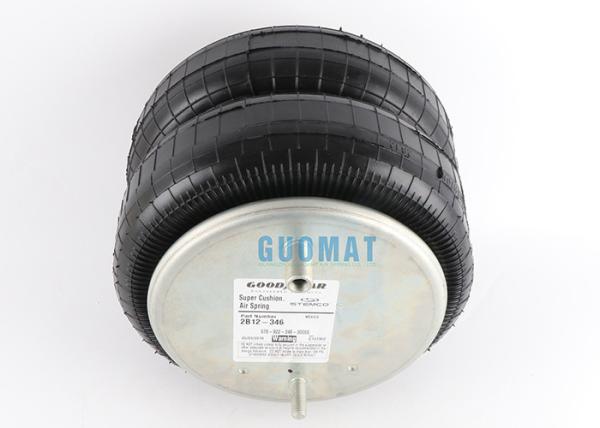

    air spring real photos:



    FD 331-26 Contitech Suspension Air Springs 2B12-346 Goodyear 578923315FD 331-26 Contitech Suspension Air Springs 2B12-346 Goodyear 578923315FD 331-26 Contitech Suspension Air Springs 2B12-346 Goodyear 578923315



    578922326000005789223260000020094624Y2B12-3262B12-326
    578922327000005789223270000020094626Y2B12-3272B12-327
    578922333000945789223330009420806166YC 2B12-305C 2B12-305
    578922334000915789223340009120806208YP 2B9-280P 2B9-280
    578922334000955789223340009520810361YP 2B9-280P 2B9-280
    578922335000955789223350009520806243YP 2B12-305P 2B12-305
    578922336000915789223360009120806481YP 2B12-346P 2B12-346
    578922337000915789223370009120806485YP 2B9-200P 2B9-200
    578922337000955789223370009520810229YP 2B9-200P 2B9-200
    578922338000915789223380009120806492YP 2B9-252P 2B9-252
    578922339000915789223390009120806486YP 2B9-278P 2B9-278
    578922340000005789223400000020035768Y2B12-340 KIT2B12-340 KIT
