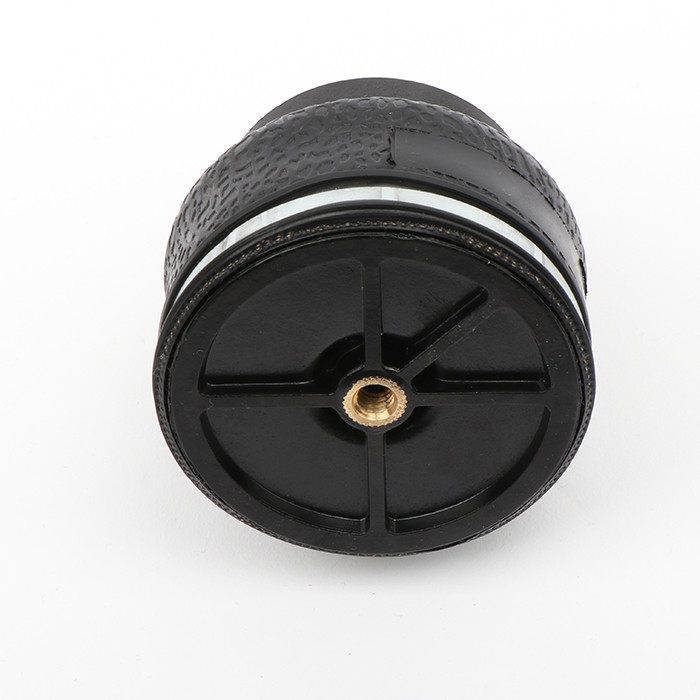

    W02-M58-3000 Firestone Air Bags Style 1M1A-0 With 86 Mm MAX O.D. AT 4 Bar

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : G3000
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    W02-M58-3000 Firestone Air Bags Style 1M1A-0 With 86 Mm MAX O.D. AT 4 Bar

    W02-M58-3000 Firestone Air Bags Style 1M1A-0 With 86 mm MAX O.D. AT 4 Bar


    AIRSUSTECH G3000 Cross others OEM


    Manufacturer :AIRSUSTECH

    Manufacturer Part Number :AIRSUSTECH G3000

    Firestone Part Number :W02-M58-3000

    Firestone Part Number :W02 M58 3000

    Firestone Part Number :W02M583000

    W02-M58-3000,W02M583000,W02-M58-3000,W02M583000


    AIRSUSTECH G3000 Technical Parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 1pcXM8 x 1.25 THREADED HOLE 9.5 mm DEEP

    Screw Center Distance of Top Cover Plate : in the middle

    Bottom Cover Plate Screw (Nut) Tooth : 1pcXM16 x 2

    Screw Center Distance of Bottom Cover Plate : in the middle


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/8 BSP AIR INLET


    Cover Plate

    Top Cover Plate Diameter: 73 mm

    Bottom Cover Plate Diameter: 61 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 91.5 mm

    Rubber Bellows Natural Diameter :80 mm

    The Working Stroke : MAX 91 mm to MIN 38 mm

    Maximum Height :91 mm

    Minimum Height :38 mm

    Compression Height : 53 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :no Pieces of Girdle Hoop


    material:2-layer standard line
    Air isolator


    Maximum diameter @ 100 PSIG (inch)
    3.4
    Maximum height (inch)
    2.9
    Maximum stroke (inch)
    1.4
    Minimum usable height (inches)
    1.5
    80PSI force at 1 inch stroke (lbs)
    450
    Maximum thrust for maximum stroke @ 80PSI (pounds)
    400

    Design height
    2.5
    Load (at design height): 40 psig (lbs)
    210
    Load (at design height): 60 psig (pounds)
    330
    Load (at design height): 80 psig (lbs)
    450
    Natural frequency (@ 80 psig) (cpm)
    220
    Percentage of isolation when the mandatory frequency is 800 CPM
    91.8
    Isolation percentage at forced frequency 1500 CPM
    97.8


    W02-M58-3000 Firestone Air Bags Style 1M1A-0 With 86 Mm MAX O.D. AT 4 BarW02-M58-3000 Firestone Air Bags Style 1M1A-0 With 86 Mm MAX O.D. AT 4 BarW02-M58-3000 Firestone Air Bags Style 1M1A-0 With 86 Mm MAX O.D. AT 4 Bar
