AIRSUSTECH G3013 Satisfy all customer requirements
The cooperation with this company did put in a lot of effort, but
she also allowed us to make great progress. It is these
"requirements" from companies in developed countries that guide us
in the direction of progress and progress. We have also been
working hard to improve our products to ensure that we meet the
needs of more high-end customers. Even if the solution is just a
small problem, we are constantly promoting and developing our
products. The customer's annual demand AIRSUSTECH G3013 reaches about 5,000, and the quality is also very good in terms of
feedback.

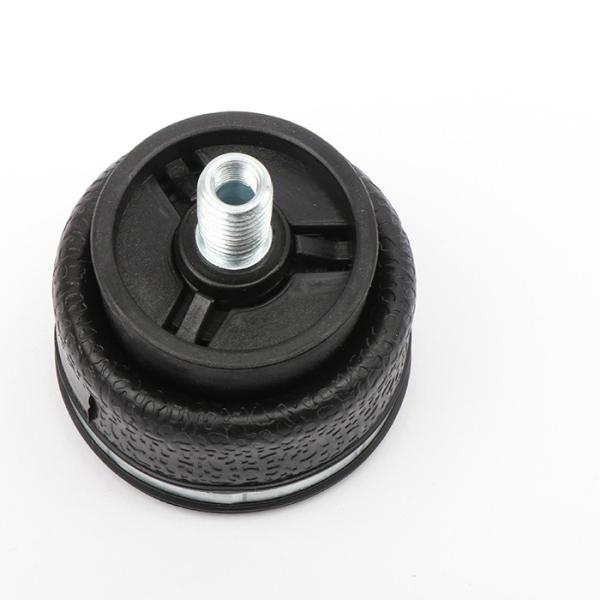

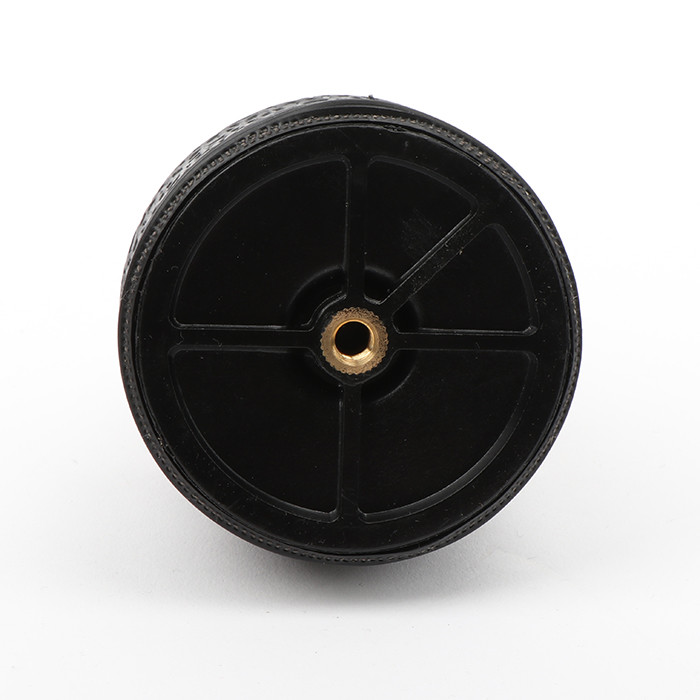

AIRSUSTECH G3013 Cross others OEM
Manufacturer :AIRSUSTECH
Manufacturer Part Number :AIRSUSTECH G3013
Goodyear Part Number :1S3-013
Goodyear Part Number :1S3 013
Goodyear Part Number :1S3013
Piston Number-ASC-06-7-017
Lower installation: .625-11 UNC OUTSIDE / .125 NPTF INSIDE
Min/Max height: 1.5"/3.6"
Piston Number: ASC-06-7-017
Upper installation: 5/16-18 UNC
Firestone W02-358-3000, Firestone W02-358-3001, Prevost 950208
AIRSUSTECH G3013 Technical Parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcX5/16-18unc
Screw Center Distance of Top Cover Plate : in the middle
Bottom Cover Plate Screw (Nut) Tooth : 1pcX5/8-11unc
Screw Center Distance of Bottom Cover Plate : in the middle
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/8 N P.T.F. / 1/4NPTF
Cover Plate
Top Cover Plate Diameter: 74.5 mm
Bottom Cover Plate Diameter: 61.2 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 91.5 mm
Rubber Bellows Natural Diameter :80 mm
The Working Stroke : MAX 91 mm to MIN 38 mm
Maximum Height :91 mm
Minimum Height :38 mm
Compression Height : 53 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :no Pieces of Girdle Hoop
material:2-layer standard line
Air isolator
Maximum diameter @ 100 PSIG (inch)
3.4
Maximum height (inch)
2.9
Maximum stroke (inch)
1.4
Minimum usable height (inches)
1.5
80PSI force at 1 inch stroke (lbs)
450
Maximum thrust for maximum stroke @ 80PSI (pounds)
400
Design height
2.5
Load (at design height): 40 psig (lbs)
210
Load (at design height): 60 psig (pounds)
330
Load (at design height): 80 psig (lbs)
450
Natural frequency (@ 80 psig) (cpm)
220
Percentage of isolation when the mandatory frequency is 800 CPM
91.8
Isolation percentage at forced frequency 1500 CPM
97.8
| 57906001100000 | 20095102 | Y | 1S3-011 | 1S3-011 |
| 1S3-011 | 20116858 | N | 1S3-011 Sleeve Air Spring | 1S3-011 Sleeve Air Spring |
| 57906001100019 | 20095103 | Y | ENIDINE YI-1S3-011 | ENIDINE YI-1S3-011 |
| 57906001100021 | 20304026 | Y | 1S3-011 AIR LIFT 58211 | 1S3-011 AIR LIFT 58211 |
| 57906001100060 | 20845824 | Y | 1S3-011 AA83909 JOHN DEERE | 1S3-011 AA83909 |
| 57906001200000 | 20095104 | Y | 1S3-012 | 1S3-012 |
| 57906001200070 | 20095105 | Y | 1S3-012 WISE XP5724 | 1S3-012 WISE XP5724 |
| 57906001300000 | 20113222 | N | 1S3-013 MINILOBE | 1S3-013 MINILOBE |
| 57906001300001 | 20054274 | Y | 1S3-013 MINI LOBE | 1S3-013 MINI LOBE |
| 1S3-013 | 20116859 | N | 1S3-013 Sleeve Air Spring | 1S3-013 Sleeve Air Spring |
| 57906001300019 | 20113223 | Y | ENIDINE YI-1S3-013 | ENIDINE YI-1S3-013 |
| 1S3-016 | 20269238 | N | 1S3-016 | 1S3-016 |
| 57906001600019 | 20095109 | Y | ENIDINE YI-1S3-016 | ENIDINE YI-1S3-016 |
| 57906002100060 | 20798204 | Y | 1S3-021 AA83937 (2940-386) JOHN DEE | 1S3-021 AA83937 (2940-386) |
| 57906002400000 | 20128029 | Y | B-25234-2 | B-25234-2 |
| 57906002500000 | 20128270 | Y | B-25235-2 | B-25235-2 |
| 57906002600000 | 20128271 | Y | B-25234-1 | B-25234-1 |
| 57906002700000 | 20128272 | Y | B-25235-1 | B-25235-1 |
| 57906002900060 | 20798205 | Y | 1S3-029 AA83938 (2940-388)JOHN D | 1S3-029 AA83938 (2940-388) |
