Manufacturer: Goodyear
Brand name: Goodyear
Goodyear:2B9-202
Goodyear:2B9 202
Goodyear:2B9202
Goodyear bellows number:578-92-3-202
Goodyear bellows number:578923202
Goodyear bellows number:578 92 3 202
Goodyear:2B9-202 Replaces
Firestone Air Springs:W013586900,
Firestone Air Springs:W01-358-6900,
Firestone Air Springs:WO13586900,
Firestone Air Springs:WO1-358-6900
| Goodyear # | Firestone Part # | | Contitech Part # | | Automann Part # | Triangle Part # | |
| 2B9-202 | 6910 | W01-358-6910 | FD 200-19 320 | 64267 | ABSP2B12R-6910 | 4320 | |
| Goodyear # | TRP Part # | Bellow Type | Automann Bellows # | Firestone Bellows # | Goodyear Bellows # | Contitech Bellows # | Triangle Bellows # |
| 2B9-202 | AS69100 | Double | SP2B12R | 20F was 20 | 578-92-3-202 | FD 200-19 | 6325 |
2B9-202 1/4 NPT OS B, bellows type industrial air spring, double swing, 200 cm2 effective area, 19 cm maximum stroke, crimped bead plate, internal thread mounting thread, 1/4 NPT, offset Internal buffer
| Compressed height | 2.95" | series | C |
| | | | |
| Maximum deployment height | 10.8" | lowest temperature | -76°F |
| | | | |
| The maximum diameter | 9.84" | Maximum temperature | 158 degrees F |
| | | | |
| Maximum inflation pressure | 120 psi | Bellows type | Double zigzag |
| | | | |
| Maximum stroke | 7.85" | weight | 8.61 pounds. |
| | | | |
| Inlet type | empire | Internal bumper | Yes it is |
| | | | |
| Air inlet | 1/4" | | |
2B9-202 Goodyear Technical parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
| Goodyear # | Bottom Plate/Piston Type | Top Plate Hole/Stud Qty | Top Plate Dia | Top Plate C to C Dia | Bumper | | | |
| 2B9-200 | 3 | 6.4 | 3.5 | 2 | No | | | |
| Goodyear # | Bottom Plate Hole Stud Qty | Bottom Plate Dia | Bottom Plate C to C Dia | Bottom Plate Part # | Bottom Plate Alignment | Bracket | Min Height | Max Height |
| 2B9-200 | 6.4 | 3.5 | | Parallel | No | 3.2 | 10.8 | |
2B9-202 Cross others OEM
| Goodyear #: | 2B9-202 | 2B9 202 |
| Bellows type: | double | |
| Ultraman Bellows #: | SP2B12R | SP 2B 12R |
| Flint Bellow #: | 20F is 20 | |
| Goodyear Bellows #: | 578-92-3-202 | 578 92 3 202 |
| Contitech bellows #: | FD 200-19 | FD 20019 |
| Triangle bellows #: | 6325 | |
| Base plate / neutron type: | | |
| Number of top plate holes / studs: | 3 | |
| Top plate diameter: | 6.4 inch | 162.56 mm |
| Top plate C to C diameter: | 3.5 inch | 88.9 mm |
| Base plate hole bolt Qyt: | | |
| Base plate diameter: | 6.4 inch | 162.56 mm |
| Base plate C to C diameter: | 3.5 inch | 88.9 mm |
| Base plate part number: | | |
| Base plate alignment: parallel | | |
| Bumper: no | | |
| bracket: | | |
| Minimum height: 3.2 | 3.2 inch | 81.28 mm |
| Maximum height: 10.8 | 10.8 inch | 274.32 mm |

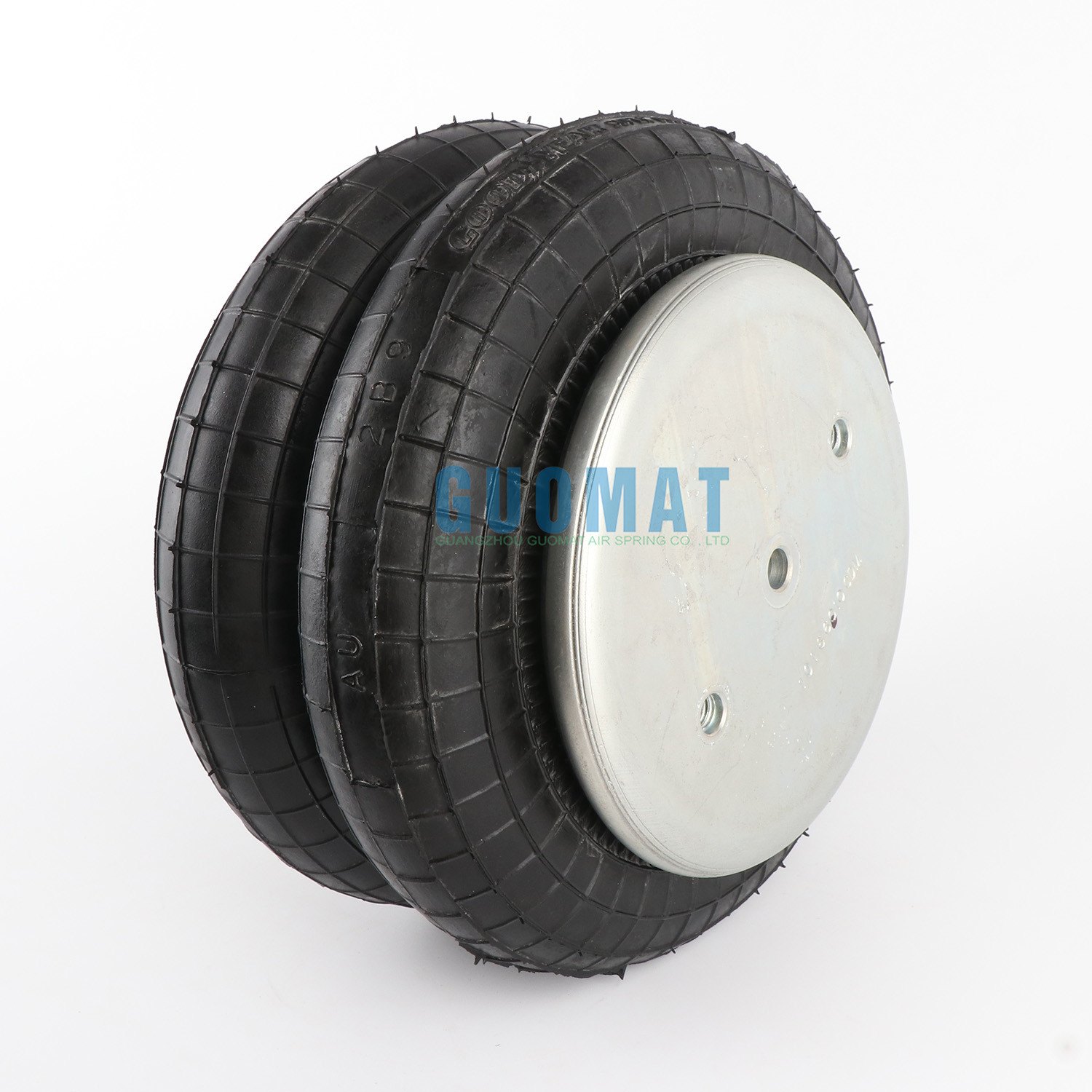

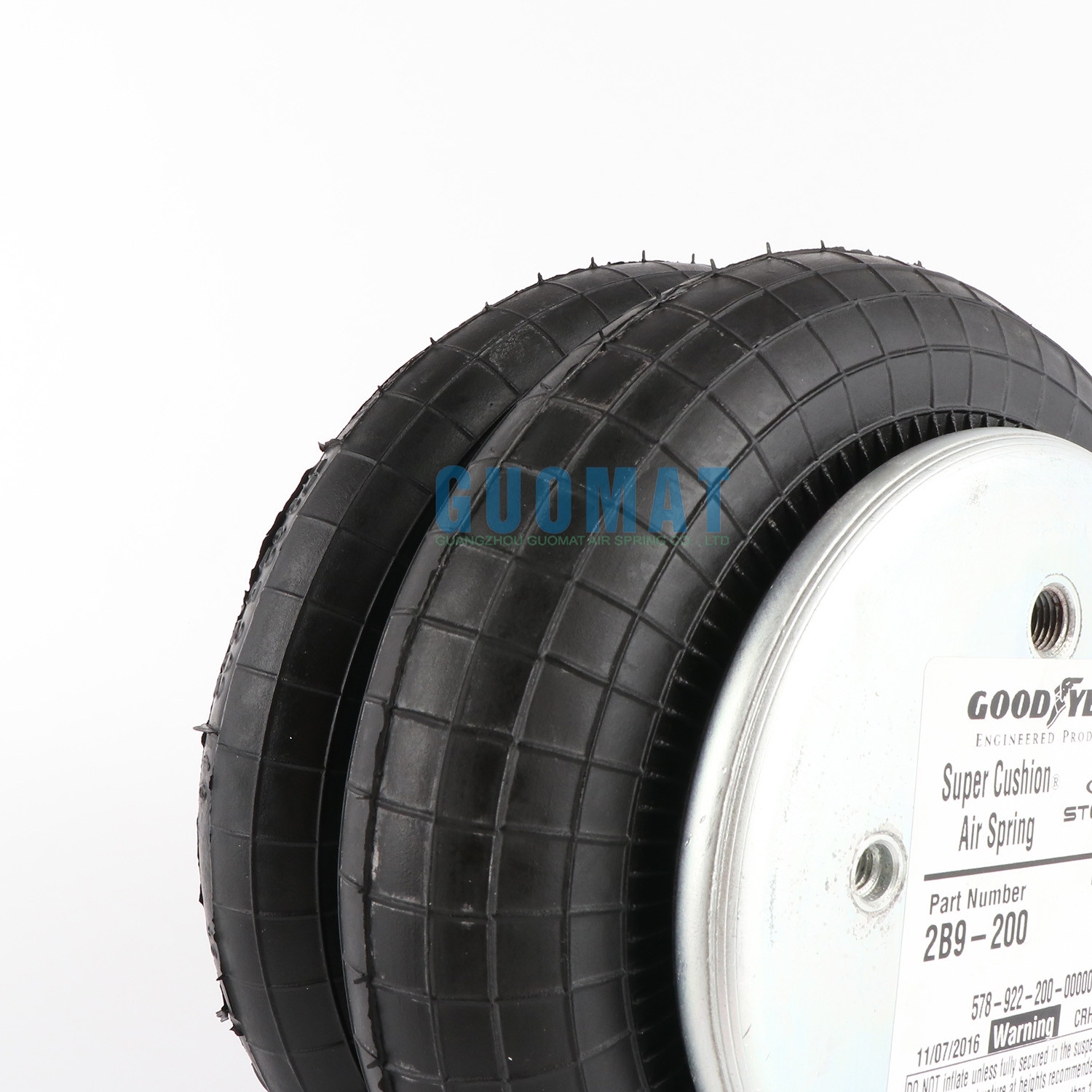

Details pictures of Goodyear Air Spring Original 2b9-202 the same size as 2B9-200:
FAQ
Hong long is the GUOMAT warranty on air suspension parts?
GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.
How long does it take to receive my order?
GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.
Is it possible to return a part if I do not want it?
Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.
| Goodyear Air Spring OE NO. | Goodyear Air Spring OE Bellows NO. | Goodyear order NO. | Bumper or not | Goodyear Air Spring OE NO. |
| AIR SPRING BELLOWS | 891-3301 | 20094351 | Y | AIR SPRING BELLOWS |
| 578913305 CONTI AIR SPRING FLEXMEMB | 57891330500092 | 20810698 | Y | 578913305 CONTI AIR SPRING FLEXMEMB |
| C8125 AIR SPRING FLEX MEMBER | 57891381250092 | 20810279 | Y | C8125 AIR SPRING FLEX MEMBER |
| C8326 AIR SPRING FLEX MEMBER | 57891383260092 | 20810281 | Y | C8326 AIR SPRING FLEX MEMBER |
| C8374 AIR SPRING FLEX MEMBER | 57891383740092 | 20810282 | Y | C8374 AIR SPRING FLEX MEMBER |
| 2B9-200 | 57892220000000 | 20054259 | Y | 2B9-200 |
| 2B9-200 Bellows Air Spring | 2B9-200 | 20094359 | N | 2B9-200 Bellows Air Spring |
| ENIDINE YI-2B9-200 | 57892220000018 | 20094363 | Y | ENIDINE YI-2B9-200 |
| ENIDINE YI-2B9-200 | 57892220000019 | 20094364 | Y | ENIDINE YI-2B9-200 |
| 2B9-200 | 57892220000027 | 20142473 | Y | 2B9-200 |
| 2B9-200 HENDRICKSON B-8768 | 57892220000038 | 20491818 | Y | 2B9-200 HENDRICKSON B-8768 |
| 2B9-200 MDC | 2B9-200 MDC | 20837711 | | 2B9-200 MDC |
| 2B9-201 | 57892220100000 | 20094371 | Y | 2B9-201 |
| 2B9-201 Bellows Air Spring | 2B9-201 | 20035779 | N | 2B9-201 Bellows Air Spring |
| ENIDINE YI-2B9-201 | 57892220100019 | 20094375 | Y | ENIDINE YI-2B9-201 |
| 2B9-204 | 57892220400000 | 20094388 | Y | 2B9-204 |
| 2B9-204 | 57892220400004 | 20116429 | Y | 2B9-204 |
| ENIDINE YI-2B9-204 | 57892220400019 | 20094391 | Y | ENIDINE YI-2B9-204 |
| 2B9-205 | 57892220500000 | 20094392 | Y | 2B9-205 |
| 2B9-205 | 57892220500004 | 20116520 | Y | 2B9-205 |
| ENIDINE YI-2B9-205 | 57892220500019 | 20094393 | Y | ENIDINE YI-2B9-205 |
| 2B9-206 | 57892220600000 | 20094395 | Y | 2B9-206 |
| 2B9-206 Bellows Air Spring | 2B9-206 | 20094396 | N | 2B9-206 Bellows Air Spring |
| 2B9-206 | 57892220630000 | 20099598 | Y | 2B9-206 |
| 2B9-208 | 57892220800000 | 20094409 | Y | 2B9-208 |
| 2B9-208 | 57892220800004 | 20116521 | Y | 2B9-208 |
| 1B9-216 | 57891221600004 | 20175183 | Y | 1B9-216 |
| P 1B9-202 | 57891221700095 | 20805668 | N | P 1B9-202 |
| C 1B9-202 | 57891221800094 | 20810946 | Y | C 1B9-202 |
| C 1B9-207 | 57891221900094 | 20811429 | Y | C 1B9-207 |
| 3B12-335 Bellows Air Spring | 3B12-335 | 20141254 | N | 3B12-335 Bellows Air Spring |
| 3B12-336 HENDRICKSON HEBRON 004645 | 57893233600000 | 20141257 | Y | 3B12-336 HENDRICKSON HEBRON 004645 |
| 3B12-336 HENDRICKSON HEBRON 004645 | 57893233600004 | 20141258 | Y | 3B12-336 HENDRICKSON HEBRON 004645 |
| 3B12-337 | 57893233700000 | 20156098 | Y | 3B12-337 |
| 3B12-337 Bellows Air Spring | 3B12-337 | 20156099 | N | 3B12-337 Bellows Air Spring |
| 3B12-338 | 57893233800000 | 20156259 | Y | 3B12-338 |
