    3B12-308 Goodyear Air Spring Cross Firestone W01-358-8048 For Smelting Equipment

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 3B12-308
    Certification : ISO/TS16949:2009
    Price : 10-49 Pieces / US $99 | 50-99 Pieces / US $89 | 100+ Pieces / US $85
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    3B12-308 Goodyear Air Spring Cross Firestone W01-358-8048 For Smelting Equipment

    3B12-308 Goodyear Air Spring Cross Firestone W01-358-8048 For Smelting Equipment

    3B12-308 Goodyear Cross others OEM:

    Goodyear # Firestone Part # Contitech Part # Automann Part # Triangle Part #
    3B12-308 8006 W01-358-8006 FT 330-29 503 64568 ABSP3B22R-8006 4430
    Goodyear # TRP Part # Bellow Type Automann Bellows # Firestone Bellows # Goodyear Bellows # Contitech Bellows # Triangle Bellows #
    3B12-308 ASP1710 Triple SP3B22R 38D was 38 578-93-3-100 FT 330-29 6334

    Goodyear part number: 3B12-308

    Top plate number: 3208
    Top plate width: 9.00 inches
    Piston number: 3212 or 3183
    Number of Firestone bellows: 38
    Goodyear Bellows Number: 578-93-3-100
    Triangle part number: 4430
    Triangle bellows number: 6334

    3B12-308 Goodyear Air Spring Technical Parameters

    Goodyear # Bellow Type Top Plate Hole/Stud Qty Top Plate Dia Top Plate C to C Dia Bumper
    3B12-308 Triple 2 9 6.2 No
    Goodyear # Bottom Plate Hole Stud Qty Bottom Plate Dia Bottom Plate C to C Dia Bottom Plate Alignment Min Height Max Height
    3B12-308 2 9 6.2 Parallel 4.8 18

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Screw Center Distance of Top Cover Plate : 157.5mm
    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 157.5mm

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

    Cover Plate
    Top Cover Plate Diameter: 231 mm
    Bottom Cover Plate Diameter: 231 mm

    Rubber Bellows
    Rubber Bellows MAX Diameter: 330 mm
    Rubber Bellows Natural Diameter :300 mm
    The Working Stroke : MAX 460 mm to MIN 130 mm
    Maximum Height : 460 mm
    Minimum Height :130 mm
    Compression Height : 330 mm

    Bumper block / Buffer block
    Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :Two Pieces of Girdle Hoop


    Bellows type industrial air spring, triple rotation,
    Effective area 330 square centimeters
    29 cm maximum stroke,
    Crimped bead plate
    internal thread,
    1/4 NPT, offset
    Manufacturer: Goodyear
    Compressed height
    4.33"
    Maximum expansion height
    16.9"
    The maximum diameter
    12.8"
    Maximum inflation pressure
    120 psi
    Maximum stroke
    12.57"
    Air inlet type
    English
    Air inlet
    1/4"
    series
    C
    lowest temperature
    -76°F
    Maximum temperature
    158°F
    Bellows type
    Triple convolution
    Weight: 13 pounds

    Goodyear Air Spring OE NO.

    Goodyear Air Spring

    OE Bellows NO.

    Goodyear order NO. Bumper or not Goodyear Air Spring OE NO.
    3B12-300 57893230000000 20094938 Y 3B12-300
    3B12-300 Bellows Air Spring 3B12-300 20035817 N 3B12-300 Bellows Air Spring
    3B12-301 57893230100000 20094943 Y 3B12-301
    3B12-301 Bellows Air Spring 3B12-301 20094947 N 3B12-301 Bellows Air Spring
    3B12-303 57893230300000 20094948 Y 3B12-303
    3B12-303 Bellows Air Spring 3B12-303 20035819 N 3B12-303 Bellows Air Spring
    3B12-306 57893230400000 20054271 Y 3B12-306
    3B12-306 Bellows Air Spring 3B12-306 20035820 N 3B12-306 Bellows Air Spring
    ENIDINE YI-3B12-304 57893230400019 20094956 Y ENIDINE YI-3B12-304
    3B12-305 57893230500000 20094959 Y 3B12-305
    3B12-305 Bellows Air Spring 3B12-305 20094960 N 3B12-305 Bellows Air Spring
    ENIDINE YI-3B12-305 57893230500019 20094961 Y ENIDINE YI-3B12-305
    3B12-308 57893230800000 20094966 Y 3B12-308
    3B12-308 3B12-308 20099073 N 3B12-308
    ENIDINE YI-3B12-308 57893230800019 20094967 Y ENIDINE YI-3B12-308
    3B12-309 57893230900000 20054272 Y 3B12-309
    3B12-310 57893231000000 20105514 Y 3B12-310
    3B12-310 Bellows Air Spring 3B12-310 20110947 N 3B12-310 Bellows Air Spring
    3B12-311 57893231100000 20094969 Y 3B12-311
    3B12-312 57893231200000 20035821 Y 3B12-312
    3B12-312 Bellows Air Spring 3B12-312 20094970 N 3B12-312 Bellows Air Spring
    3B12-313 57893231300000 20099695 Y 3B12-313
    3B12-313 3B12-313 20307217 N 3B12-313
    ENIDINE YI-3B12-313 57893231300019 20094974 Y ENIDINE YI-3B12-313
    3B12-314 57893231400000 20094975 Y 3B12-314
    3B12-315 57893231500000 20099677 Y 3B12-315
    3B12-315 Bellows Air Spring 3B12-315 20127021 N 3B12-315 Bellows Air Spring
    3B12-316 KIT 57893231600000 20094977 Y 3B12-316 KIT
    3B12-316 KIT 3B12-316 20136005 N 3B12-316 KIT
    3B12-317 57893231700000 20094978 Y 3B12-317
    3B12-319 57893231900000 20109195 Y 3B12-319
    3B12-319 Bellows Air Spring 3B12-319 20109214 N 3B12-319 Bellows Air Spring
    ENIDINE YI-3B12-320 57893232000019 20106776 Y ENIDINE YI-3B12-320
    3B12-321 57893232100000 20112849 Y 3B12-321
    ENIDINE YI-3B12-321 57893232100019 20112990 Y ENIDINE YI-3B12-321
    3B12-322 57893232200000 20118920 Y 3B12-322
    3B12-322 Bellows Air Spring 3B12-322 20118921 N 3B12-322 Bellows Air Spring
    3B12-323 57893232300000 20118922 Y 3B12-323
    3B12-323 Bellows Air Spring 3B12-323 20118923 N 3B12-323 Bellows Air Spring
    3B12-324 57893232400000 20113782 Y 3B12-324
    3B12-324 Bellows Air Spring 3B12-324 20137951 N 3B12-324 Bellows Air Spring
    3B12-325 57893232500000 20118924 Y 3B12-325
    3B12-325 Bellows Air Spring 3B12-325 20118925 N 3B12-325 Bellows Air Spring
    ENIDINE YI-3B12-325 57893232500018 20118926 Y ENIDINE YI-3B12-325
    ENIDINE YI-3B12-325 57893232500019 20118927 Y ENIDINE YI-3B12-325
    3B12-326 57893232600000 20118928 Y 3B12-326
    3B12-326 Bellows Air Spring 3B12-326 20118929 N 3B12-326 Bellows Air Spring
    ENIDINE YI-3B12-326 57893232600018 20118931 Y ENIDINE YI-3B12-326
    ENIDINE YI-3B12-326 57893232600019 20118930 Y ENIDINE YI-3B12-326
    3B12-327 57893232700000 20132717 Y 3B12-327
    3B12-327 3B12-327 20132718 N 3B12-327
    3B12-328 57893232800000 20132490 Y 3B12-328
    3B12-328 Bellows Air Spring 3B12-328 20132491 N 3B12-328 Bellows Air Spring
    3B12-328 WATSON & CHALIN AS0019 57893232800077 20215646 Y 3B12-328 WATSON & CHALIN AS0019
    3B12-329 57893232900000 20132492 Y 3B12-329
    3B12-329 Bellows Air Spring 3B12-329 20132493 N 3B12-329 Bellows Air Spring
    3B12-329 WATSON & CHALIN AS0048-2G 57893232900077 20215647 Y 3B12-329 WATSON & CHALIN AS0048-2G
    3B12-330 57893233000000 20130960 Y 3B12-330
    3B12-330 57893233000004 20130961 Y 3B12-330

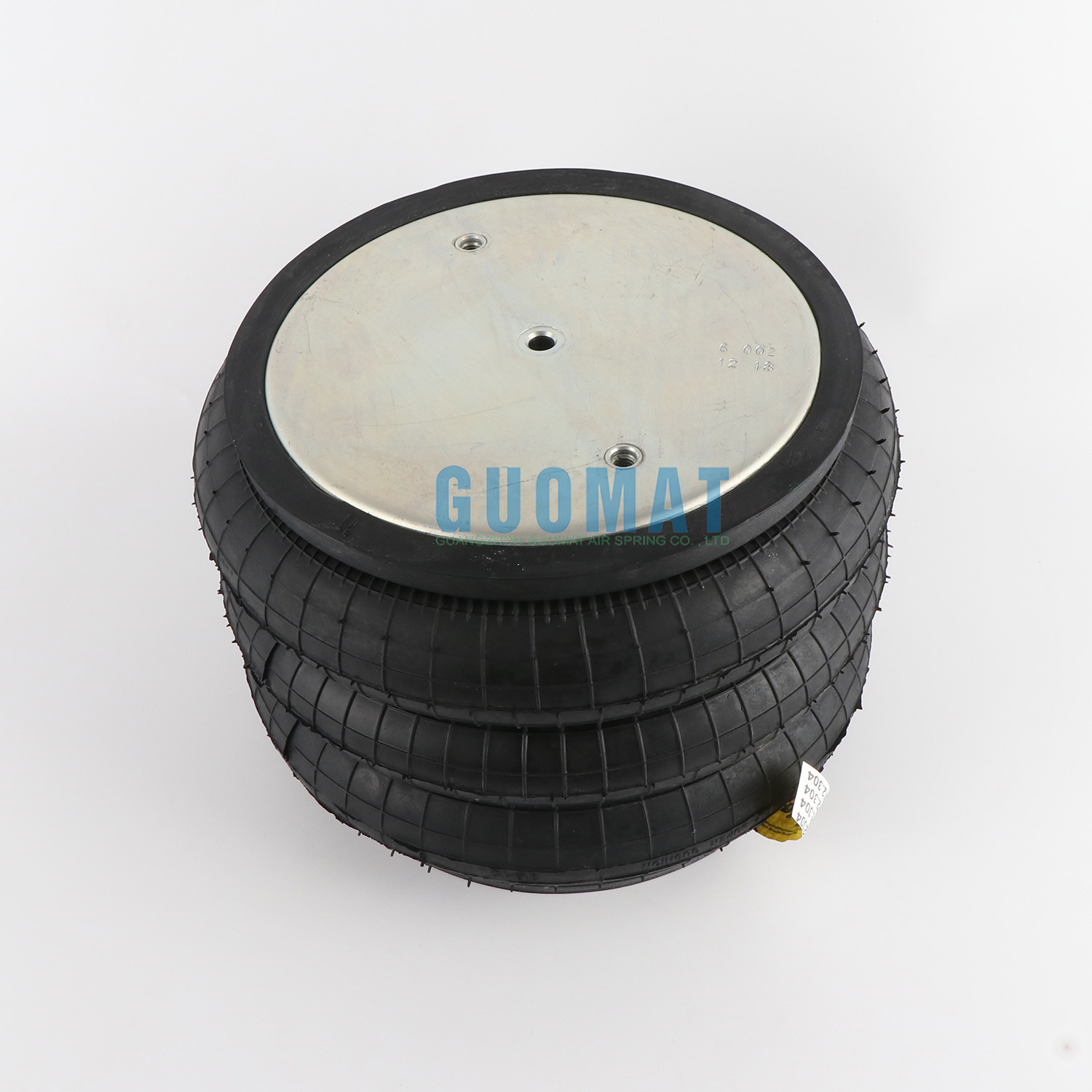

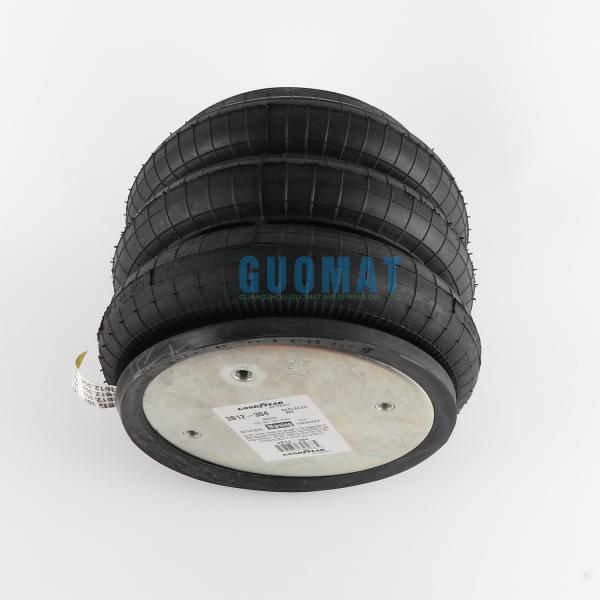

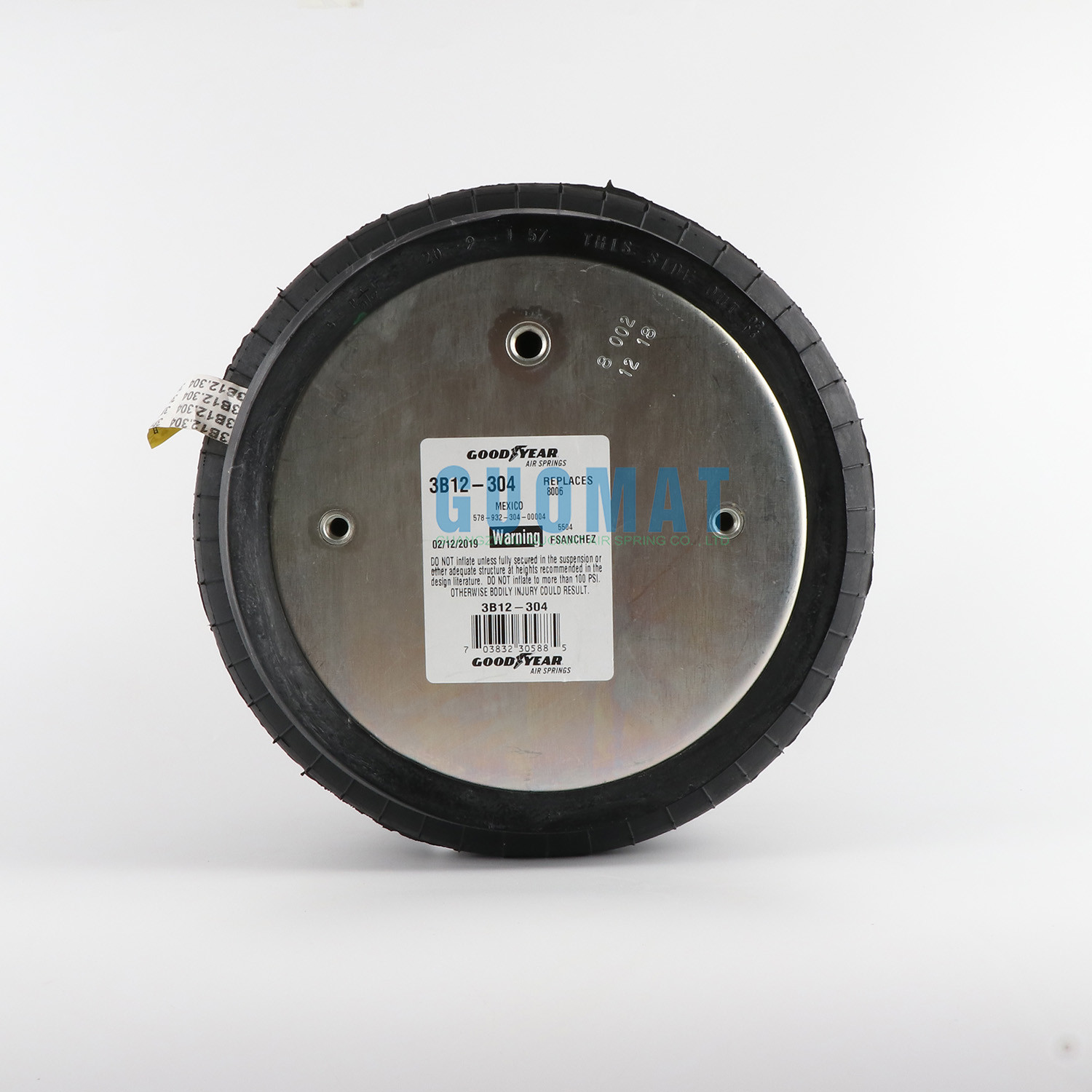

    Details pictures of 3b12-308 Goodyear Air Spring the same as 3b12-304



    3B12-308 Goodyear Air Spring Cross Firestone W01-358-8048 For Smelting Equipment3B12-308 Goodyear Air Spring Cross Firestone W01-358-8048 For Smelting Equipment3B12-308 Goodyear Air Spring Cross Firestone W01-358-8048 For Smelting Equipment

    Bulk product pictures of 3b12-308 Goodyear Air Spring:

    FAQ


    Hong long is the GUOMAT warranty on air suspension parts?

    GUOMAT offers one year warranty for all the air springs and air suspension parts all over the world. Within the warranty period, we will either replace or repair the part. But improper use or installation is not a manufacturer's responsibility .GUOMAT is so confident you will be 100% satisfied with products that it offers you a 30-Day Money Back Guarantee and a 90-Day Return Policy on unused and uninstalled products.

    How long does it take to receive my order?

    GUOMAT ships may take 2-8 work days, depending on what items are ordered and Whether the parts have in stock or not. We always deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can very quickly to deliver the package to you.

    Is it possible to return a part if I do not want it?

    Yes, of course .You can return a part as long as it is less than 30 days from the date of purchase or within 90 days for unused and uninstalled products.
