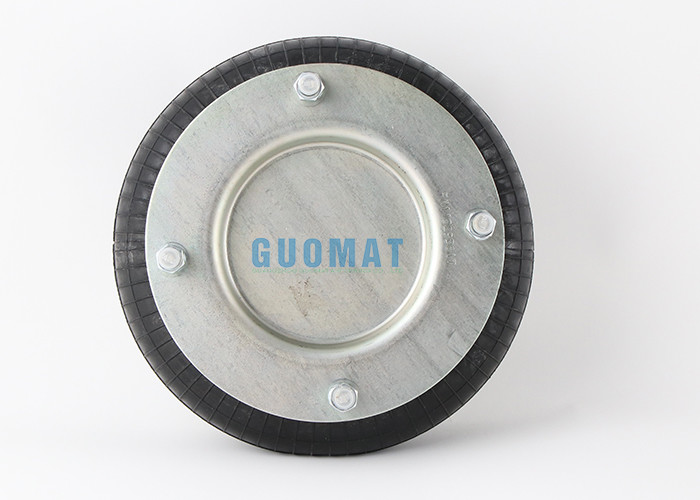

    FS 210-10 Contitech Air Spring Single Convoluted Air Bags For Rubber Vibrating Screen

    Ask Lasest Price
    Brand Name : Contitech
    Model Number : FS 210-10
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    FS 210-10 Contitech Air Spring Single Convoluted Air Bags For Rubber Vibrating Screen

    FS 210-10 Contitech Air Spring Single Convoluted Air Bags For Rubber Vibrating Screen


    FS 210-10 Contitech Air Spring Cross other OEM Original :


    ContiTech (Continental): FS 210-10 DS 67404
    ContiTech (Continental): FS 210-10 1/2 M10
    ContiTech (Continental): FS 210-10 DS 1/2 M10
    ContiTech (Continental): FS 210 -10 DS G1/2
    ContiTech (Continental): FS 210-10 DS G1/2 M10
    ContiTech (Continental): FS 210-10 DS / FS210-10DS / FS21010DS
    ContiTech (Continental) skin bag: FS 210-10 / FS210-10 / FS21010
    Firestone number: W01-R58-4057

    Firestone number: W01 R58 4057 /

    Firestone number: W01R584057
    Firestone style: 10"x1/

    Firestone style: 10"x1 /

    Firestone style: 10x1
    Goodyear: 1B10-350

    Goodyear: 1B10 2350

    Goodyear: 1B102350
    Goodyear Bag No.: 578-91-3-2350 /

    Goodyear Bag No.: 578 91 3 2350/

    Goodyear Bag No.: 5789132350
    Dunlop France: 10"x1 SP2523
    Dunlop UK (Pneuride): A1 1127 00 07

    Dunlop UK (Pneuride):A111270007
    Norgren: M/31101 /

    Norgren:M 31101 /

    Norgren:M31101
    Nominal diameter (inch) x number of turns: 10"x1/ 10"x1 / 10x1
    Parker: 10"x1 9109024
    Gu'an shock (gas spring): YS- -252-1V / YS 252 1V / YS2521V

    Parameter of Contitech Air Spring FD120-17 Cl G3/4:


    Size of FS 210-10 Contitech Air Spring:

    TYPE SERIES / MODELW01R584057
    STYLE10 x 1 steel ECO
    NUMBER OF BALLS 1-fold
    MIN. HEIGHT (MM) 50 mm
    MAX. HEIGHT (MM) 135 mm
    MAX. WORKING HEIGHT (MM) 135 mm
    MAX. LOAD CAPACITY (KN) 16 kN
    INSTALLATION SPACE (MM) 280 mm
    MAX. DIAMETER (MM) 265 mm
    WEIGHT (KG) 3.8 kg
    AIR CONNECTION G 1/2 "


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.25

    Screw Center Distance of Top Cover Plate : 181 mm

    Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X M10X1.25

    Screw Center Distance of Bottom Cover Plate : 181 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2

    Cover Plate

    Top Cover Plate Diameter (Width): 210 mm

    Bottom Cover Plate Diameter (Width): 210 mm


    Rubber Bellows

    Rubber Bellows Natural Diameter : 245 mm

    Design Height: 50mm-135mm

    Maximum Diameter: 270 mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :no Pieces of Girdle Hoop


    Compressed height
    2.01"
    Maximum deployment height
    5.51"
    The maximum diameter
    9.84"
    Maximum inflation pressure
    120 psi
    Maximum stroke
    3.5"
    Inlet type
    Metric
    Air inlet
    1/2"
    series
    D
    lowest temperature
    -76°F
    Maximum temperature
    158 degrees F
    Bellows type
    Single twist
    weight
    9 pounds.



    FS 76-7DS CR 6 x1

    50 175 190 45 55 15,0 9,6 4,8 4 127,0

    FS 138-8 DS 8 x1

    50 230 245 65 80 25,0 15,3 8,6 4 155,5 ­­

    FS 210-10 DS 10 x1

    50 280 300 85 100 33,8 24,4 11,5 4 181,0

    FS 412-10 DS 12 x1

    50 330 350 85 100 51,8 38,3 18,6 4 232,0

    FS 614-13 DS 14 x1

    50 400 425 100 125 77,4 50,2 20,2(2) 4 282,5

    FS 816-15 DS 16 x 1

    50 420 445 125 140 80,8 61,0 25,6(2) 4 282,5


    FS 210-10 Contitech Air Spring Single Convoluted Air Bags For Rubber Vibrating ScreenFS 210-10 Contitech Air Spring Single Convoluted Air Bags For Rubber Vibrating ScreenFS 210-10 Contitech Air Spring Single Convoluted Air Bags For Rubber Vibrating Screen
