    Airsustech 6X2 Industrial Air Springs ContiTech FD 76-14 DS CR G1/2 Double Convoluted Air Bag

    Ask Lasest Price
    Brand Name : Airsustech
    Model Number : 6X2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Airsustech 6X2 Industrial Air Springs ContiTech FD 76-14 DS CR G1/2 Double Convoluted Air Bag

    Airsustech 6X2 Industrial Air Spring ContiTech FD 76-14 DS CR G1/2 Double Convoluted Air Bag


    Airsustech 6X2 Specifications and Detail Technical Parameters


    Nut / Blind NutRubber Bellows
    Top Cover Plate Screw (Nut) Tooth : 4pcs X M8Diameter max at 7 bar:175MM
    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8Stroke of Rubber Bellows:80mm-195m
    Gas Hole / Air inlet / Air FittingBumper block / Buffer block
    Gas Hole / Air inlet : G1/2Without Bumper Block
    Girdle Hoop / Girdle Ring
    Cover PlateWith Girdle Hoop :One Pieces of Girdle Hoop
    Top Cover Plate Diameter (Width): 153.5 mmmax load at 80 mm height and 8 bar:1415 daN
    Bottom Cover Plate Diameter (Width): 153.5 mmMaterial top and bottom plate:Aluminium

    Airsustech 6X2 Cross OEM Reference:


    Airsustech :6X2

    ContiTech: FD 76-14 1/2 M10

    ContiTech: FD 76-14 DS G1/2

    ContiTech: FD 76-14 DS G1/2 CR

    ContiTech: FD 76-14 DS CR G1/2

    ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR

    ContiTech Bellow: FD 76-14 / FD76-14 / FD7614

    Norgren: PM/31062 / PM 31062 / PM31062

    Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2

    Dunlop FR: SP1482

    Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112

    Double Convoluted Air Spring 2B180-115 D185

    Double Convoluted Air Spring 2B180-115 D185

    Replaces These Air Springs (Air Bellows)


    Other kinds of model air bellows:


    Firestone Parts NO.: W01-R58-4070 - (6 x 2 Alu )

    Firestone Parts NO.: W01-R58-4053 - (6 x 2 Steel )

    Firestone Parts NO.: W01-R58-4078 - (6 x1 Alu )

    Firestone Parts NO.: W01-R58-4081 (2 3/4" x3)

    Firestone Parts NO.: W01-R58-4051 Dunlop Style 4,5 " x 2

    Firestone Parts NO.: W01-R58-4052 - (6" x1 steel)

    Firestone Parts NO.: W01-R58-4057 - (10 x1 steel)

    Firestone Parts NO.: W01-R58-4054 - 8x1 Steel

    Firestone Parts NO.: W01-R58-4028 - 8"x1 Epichlorhydrin

    Firestone Parts NO.: W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)

    Firestone Parts NO.: W01-R58-4090 - 8"x2 Butyl

    Firestone Parts NO.: W01-R58-4055 - 8x2 Steel

    Firestone Parts NO.: W01-R58-4060 (12 x1 steel)Firestone Parts NO.: W01-R58-4077 (12 x1 Herclor )

    Firestone Parts NO.: W01-R58-4056 -8"x3 Steel

    Firestone Parts NO.: W01-R58-4062 (12 x3 Steel)

    Firestone Parts NO.: W01-R58-4065 (14 1/2 x3 Steel)

    Firestone Parts NO.: W01-R58-4098 (14 1/2 x1 Herclor)

    Firestone Parts NO.: W01-R58-4097 (14" 1/2 x2 Herclor)

    Firestone Parts NO.: W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)

    Firestone Parts NO.: W01-R58-4059 - (10" x3 steel)

    Spar Part Bellow 8"x2 W01-R58-4045

    Firestone Parts NO.: W01-R58-4064 -14" 1/2 x2

    Firestone Parts NO.: W01-R58-4063 -14 1/2 x1

    Bellow only 8" x 1 -- W01-R58-4085

    Firestone Parts NO.: W01-R58-4048

    W01-R58-4080 - 2 3/4" x 2

    Firestone Parts NO.: W01-R58-4060- 12" x2 steel

    Firestone Parts NO.: W01-R58-4070 - (6 x 2 V2a )

    Firestone Parts NO.: W01-R58-4051E 4,5 x 2 Stainless Steel

    Firestone Parts NO.: W01-R58-4050

    W01-R58-4080 - 2 3/4" x 1

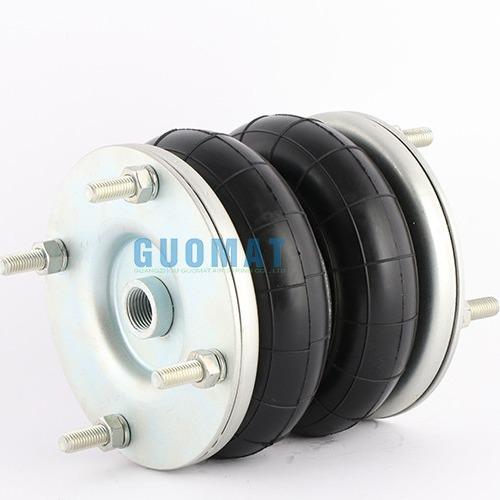

    Details pictures 1 of Airsustech 6X2 Air Spring:

    Airsustech 6X2 Industrial Air Springs ContiTech FD 76-14 DS CR G1/2 Double Convoluted Air Bag

    Details pictures 2 of Airsustech 6X2 Air Spring:


    Airsustech 6X2 Industrial Air Springs ContiTech FD 76-14 DS CR G1/2 Double Convoluted Air BagAirsustech 6X2 Industrial Air Springs ContiTech FD 76-14 DS CR G1/2 Double Convoluted Air Bag
