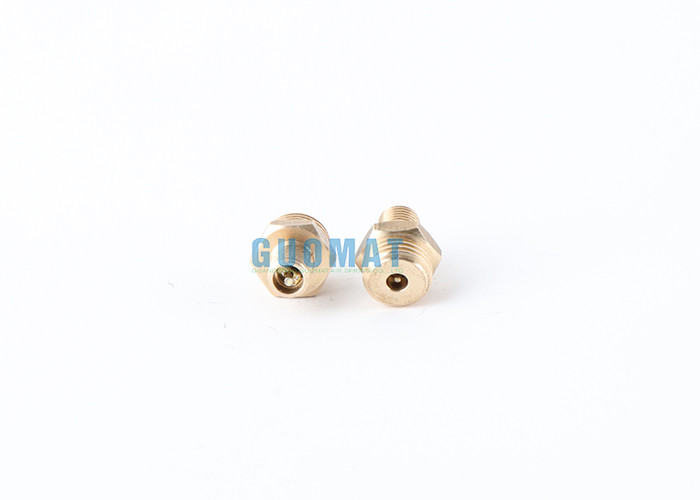

Air Spring Kit G1/8 Pressure Holding Valve For Industrial Air Springs Air Inlet

Specifications

Size code=1/8

Number of teeth per 25.4 (mm) n=28

Pitch p=0.907

Tooth height h=0.581

Arc radius r=0.125

Diameter on the base surfacemajor diameter d=D=9.728

Diameter on the base surfacemedium diameter d2=D2=9.147

Diameter on the base surfacesmall diameter d1=D1=8.566

French valves (English: Presta valve, Sclaver and valve or French valve) are often referred to simply as French mouths and are mostly used on road bikes. Also this kind of valve can use in the air spring.

This type of valve consists of an externally threaded copper body, a valve screw that holds the valve, a valve cover, and a nut that fixes the valve on the rim.

The biggest feature of the French mouth is just the opposite of the American mouth, and its air core cannot be removed. However, some pistols can have their cores. The purpose is to inject inner tube repairing agents. However, the number of such rare French mouths is rather rare. For different applications, the length of the brass body will change; its 6mm aperture is also smaller than the American mouth (the body mouth of the American mouth is 8mm). Because the nut is fixed between the bottom of the mouth of the French mouth and the rim, it helps to strengthen the bicycle rim with a narrower width, because the most vulnerable place of this type of rim is often in the valve hole .

Another advantage of a French mouthpiece is its light weight and its ability to fine-tune its speed and control air pressure with precision. Before inflating, you must loosen the top valve screw to inflate. The mouth pump of the French mouth is different from the American mouth, but the mouth of the French mouth can be locked with an adapter and the pump of the American mouth can be used.

The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects

❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate

❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
