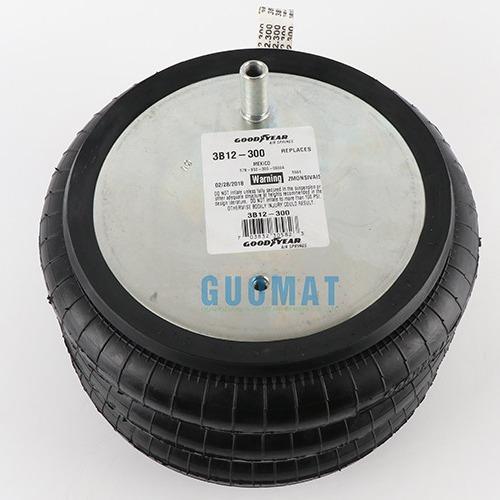

3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift from wholesalers

    Buy cheap 3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift from wholesalers
    • Buy cheap 3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift from wholesalers
    • Buy cheap 3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift from wholesalers
    • Buy cheap 3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift from wholesalers

    3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 3B12-300
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift

    Goodyear Air Springs 3B12-300 Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift


    Description of 3B12-300 Goodyear :


    3B12-300 this kind of air spring is produced by goodyear,we imported it from goodyear factory in Mexico.

    3B12-300 Goodyear air spring. Super-Cushion® air springs bring new high productivity and long life to your industrial equipment , lifting equipment ,Platform Lift ,Scissor lift and so on. 3B12-300 Bellows air springs provide a constant level of traction and provide trouble-free service.


    The 3B12-300 Goodyear air spring rubber airbag can protect the cargo and provide horizontal transportation and long-term service. 3B12-300 Rubber airbag air springs provide quiet, cushioned driving, and because of less vibration, they have a longer service life than steel springs. 3B12-300 enables industrial vibration equipment to reduce vibration and noise pollution. In addition, 3B12-300 goods have better shock and vibration resistance.


    3B12-300 Goodyear Technical parameters


    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC

    Top Cover Plate Screw (Nut) Tooth : 1 pcs X Stud - 3/4-16

    Screw Center Distance of Top Cover Plate : 140 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm


    Cover Plate

    Top Cover Plate Diameter: 228.6 mm

    Bottom Cover Plate Diameter: 228.6 mm


    Rubber Bellows

    Rubber Bellows MAX Diameter: 330 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 120 mm to MAX 457 mm

    Maximum Height : 457 mm

    Minimum Height :120 mm

    Stroke Height : 179mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Roof hole/stud: 2
    Floor hole/stud: 2
    Top plate diameter: 9
    Base plate diameter: 9
    Collapse height: 5.1


    Manufacturer: Goodyear
    Brand name: Goodyear
    Product weight: 7.5 kilograms
    Package size: 33 x 33 x 22 cm
    Model: 3B12-300


    2B12-300 Goodyear Cross OEM


    Goodyear Parts NO.:2B12-300 ;
    Goodyear Parts NO.:2B12 300;
    Goodyear Parts NO.:2B12300;
    Goodyear Flexmember Parts NO.:578933100
    Goodyear Flexmember Parts NO.:578 93 3 100
    Goodyear Flexmember Parts NO.:578-93-3-100

    3B12-300 Goodyear Cross other OEM:
    Firestone Parts NO.:W01-358-8008Triangle spring: 4431Dallas Spring: AS8008
    Triangle spring: 4469Midland / Haldex: CS312300
    Firestone Parts NO.::W01 358 8008Firestone: 8008Euclidean/Meritor Aftermarket: E-FS8008
    Firestone: 8025Euclidean/Meritor Aftermarket: E-FS8025
    Firestone Parts NO.::W013588008By E-Z: 8030155Euclid / Meritor Aftermarket: FS8008
    Firestone Parts NO.:W01-358-8025Neway: 57008008Euclid / Meritor Aftermarket: FS8025
    Reedwell: 1003588008CKangdi Technology: FT330-29431
    Firestone Parts NO.::W01 358 8025batco: 10-98008Kangdi Technology: FT330-29469
    Firestone Parts NO.::W013588025UCF / Impex: AB-3B12-300BWP: M-3553
    T.W. Distribution: AB8008Leland: SC2130
    Flexible members: 578-93-3-100Ultraman: ABSP3B22R-8008
    Goodyear Trim: 3B12300Watson & Chalin: AS0019


    3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift3B12-300 Goodyear Air Spring Triple Bellow 578-93-3-100 Contitech FT 330-29 431 For Platform Lift

    578922300000005789223000000020094506Y2B12-3002B12-300
    578922300000042B12-30020094507N2B12-300 Bellows Air Spring2B12-300 Bellows Air Spring
    578922300000195789223000001920094511YENIDINE YI-2B12-300ENIDINE YI-2B12-300
    578922304000005789223040000020054262Y2B12-3042B12-304
    578922304000042B12-30420116525N2B12-304 Bellows Air Spring2B12-304 Bellows Air Spring
    578922305000005789223050000020094524Y2B12-3052B12-305
    578922305000042B12-30520035787N2B12-305 Bellows Air Spring2B12-305 Bellows Air Spring
    578922305000195789223050001920094528YENIDINE YI-2B12-305ENIDINE YI-2B12-305
    578922307000005789223070000020054263Y2B12-3072B12-307
    578922307000042B12-30720035788N2B12-307 Bellows Air Spring2B12-307 Bellows Air Spring
    578922309000005789223090000020054264Y2B12-3092B12-309
    578922309000042B12-30920094552N2B12-309 Bellows Air Spring2B12-309 Bellows Air Spring
    578922309000195789223090001920094556YENIDINE YI-2B12-309ENIDINE YI-2B12-309
    578922312000005789223120000020094568Y2B12-3122B12-312
    578922312000385789223120003820491819Y2B12-312 HENDRICKSON B-13452B12-312 HENDRICKSON B-1345
    578922313000005789223130000020094570Y2B12-3132B12-313
    578922313000042B12-31320035790N2B12-313 Bellows Air Spring2B12-313 Bellows Air Spring
    578922317000005789223170000020094585Y2B12-3172B12-317
    578922317000042B12-31720126195N2B12-317 Bellows Air Spring2B12-317 Bellows Air Spring
    578922318000005789223180000020094589Y2B12-3182B12-318
    578922318000042B12-31820094586N2B12-318 Bellows Air Spring2B12-318 Bellows Air Spring
    578922318000195789223180001920133029YENIDINE YI-2B12-318ENIDINE YI-2B12-318
    578922319000042B12-31920094597N2B12-319 Bellows Air Spring2B12-319 Bellows Air Spring
    578922320000005789223200000020094600Y2B12-3202B12-320
    578922320000042B12-32020035793N2B12-320 Bellows Air Spring2B12-320 Bellows Air Spring
    578922324000005789223240000020094614Y2B12-3242B12-324
    578922324000042B12-32420094615N2B12-324 Bellows Air Spring2B12-324 Bellows Air Spring
    578922324000385789223240003820491891Y2B12-324 HENDRICKSON B-62422B12-324 HENDRICKSON B-6242
    578922325000005789223250000020054265Y2B12-325 SCANIA 14079242B12-325 SCANIA 1407924
    578922325000045789223250000420473663Y2B12-325 RP2B12-325 RP
    578922326000005789223260000020094624Y2B12-3262B12-326
    578922327000005789223270000020094626Y2B12-3272B12-327
    578922333000945789223330009420806166YC 2B12-305C 2B12-305
