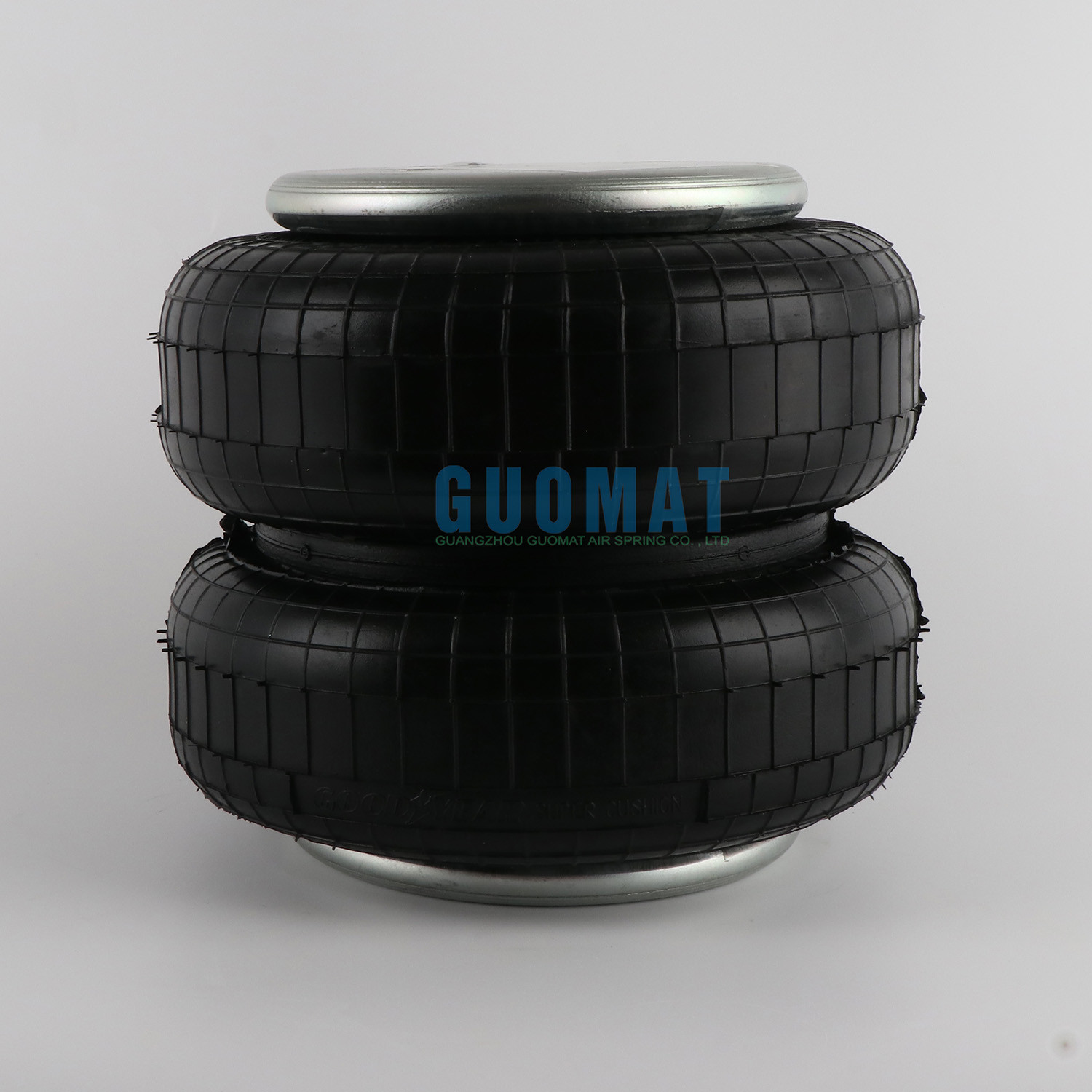

    Firestone W01-M58-6183 Goodyear Air Spring 2B9-273 Bellows 578923202 For Roller Tensioning

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 2B9-273
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-M58-6183 Goodyear Air Spring 2B9-273 Bellows 578923202 For Roller Tensioning

    Firestone W01-M58-6183 Replaces By Goodyear Air Spring 2B9-273 Bellows 578923202 For Roller Tensioning

    Specifications of Goodyear Air Spring 2B9-273

    Maximum diameter @ 7 Bar (mm)264Design height254 mm
    Maximum height76 mmLoad (at design height): 40 psig (lbs)6.2
    Maximum stroke203 mmLoad (at design height): 60 psig (lbs)10.9
    Minimum usable height279 mmLoad (at design height): 80 psig (lbs)15.6
    Force at 1 inch (lb) stroke @ 80PSI16.1Natural frequency (@80 psig) (cpm)1.6
    Force at a stroke of 3 inches (lbs) @ 80PSI12.4Isolation percentage at mandatory frequency 400 CPM93.9
    Force at maximum stroke @ 80PSI (pounds)8.9Isolation percentage at mandatory frequency 800 CPM98.5
    material2-layer standard lineIsolation percentage at mandatory frequency 1500 CPM99.6
    Port offset of blind hole nut centerline89 mmBlind nut center73 mm

    OEM Original Equipment Manufacturer:



    2B9-273 Goodyear Specifications and Technical Data

    Goodyear: 2B9-273; 2B9 273; 12B9273
    Goodyear Flex No.: 578-92-3- 202;57892 3; 578923202

    Firestone:W01-M58-6183

    ContiTech:FD 200-25 CI G 1/4

    bellows type industrial air spring,

    double scroll,

    effective area 200cm square,

    maximum stroke 25cm,

    crimping pressure plate,

    internal thread, G1/4 BSPP, offset
    Manufacturer: Goodyear
    Maximum inflation pressure
    120 psi
    Air inlet type
    Metric
    Air inlet
    1/4"
    series
    C
    Bellows type
    Double convolution
    weight
    7.76 lbs
    Manufacturer Part Number: 2B9-273


    Technical Data:


    Top cover diameter: 6.31 inches / 160 mm
    Number of bottom pistons: 3090
    Bottom cover diameter: 6.31 inches / 160 mm
    Screw center distance: 89 mm
    The distance between the nuts is 44.5 mm
    Top cover screw (nut) teeth: 2pcsX M8
    Bottom cover screw (nut) teeth: 2pcsX M8
    Rubber bellows MAX diameter: 251 mm
    Rubber bellows natural diameter 224 mm
    Working stroke: up to 260 mm to MIN 75 mm
    Air vent / air inlet: 1/4 NPT


    How to Calculation For Pneumatics, Such as

    • Mass To Be Lifted 2000 M (Kg)
    • Desired Stroke 190 S Min (Mm)
    • Number Of Air Springs 4 N
    • Minimum Installation Height 190 H Min (Mm)
    • Minimum Installation Diameter 500 D (Mm)
    • Air Pressure 6 P (Bar)

    Vibration isolation - dynamic characteristic values
    Design height H: recommended 210mm, minimum 195mm

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Force (Load) [kN]

    5.2

    7.1

    9

    10.7

    12.4

    14.5

    Spring rate [N/mm]

    79.5

    103

    126.5

    150

    173.5

    197

    5.9

    Natural frequency [Hz]

    2.0

    1.9

    1.9

    1.9

    1.9

    1.9


    Pneumatic application - static characteristic values
    Force F [kN]

    Pressure p [bar]

    3

    4

    5

    6

    7

    8

    Vol. V [l]

    Height H [mm]

    230

    4.21

    5.7

    7.2

    8.73

    10.3

    12

    6.4

    200

    5.8

    7.78

    9.74

    11.7

    13.8

    15.9

    5.7

    170

    6.96

    9.3

    11.7

    14.1

    16.5

    19

    5

    140

    7.86

    10.5

    13.2

    15.8

    18.5

    21.3

    4.1

    110

    8.52

    11.4

    14.2

    17.1

    19.9

    22.9

    3.4

    80

    9.07

    12

    15

    18

    21

    24.1

    2.5
