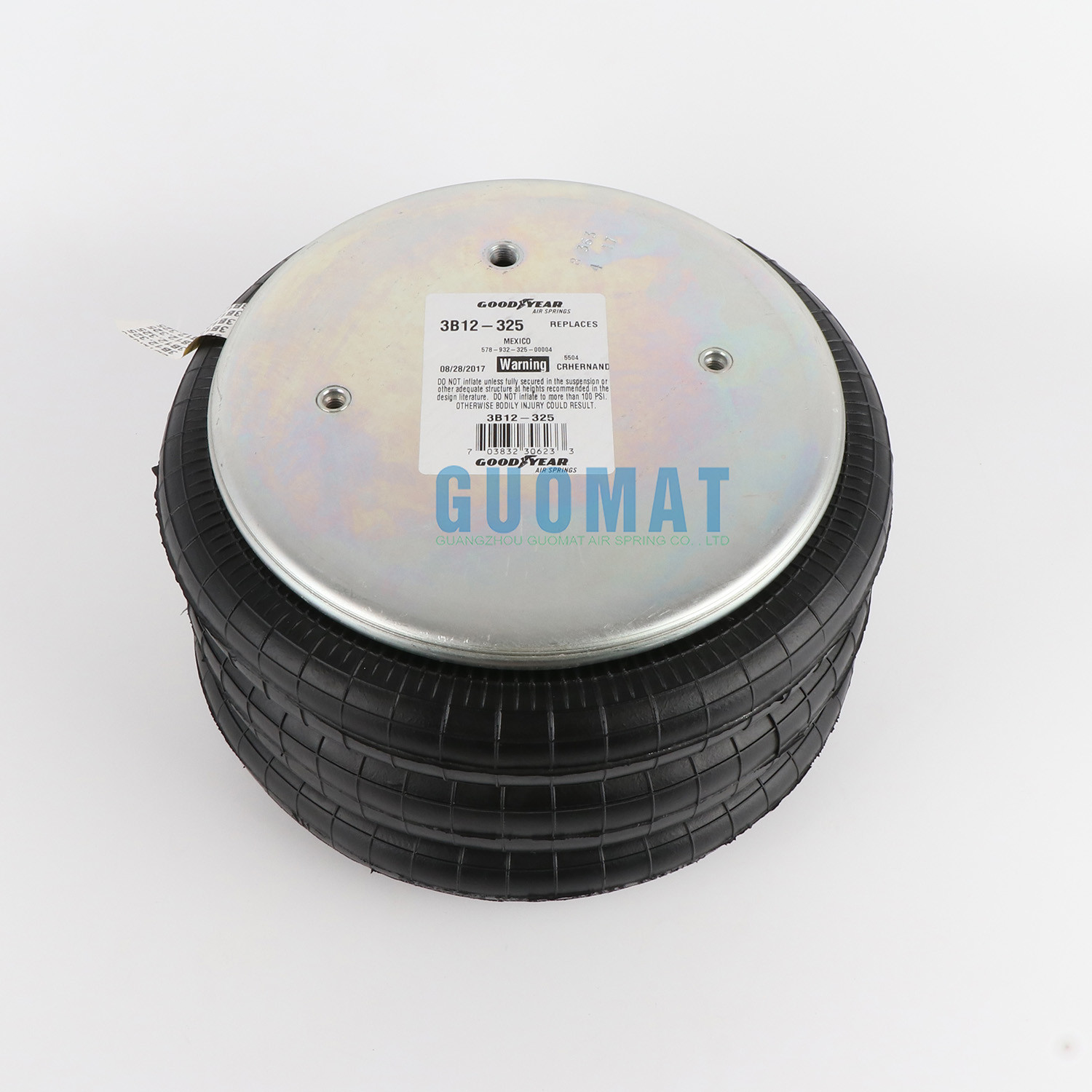

    3B12-325 578-93-3-103 Goodyear Air Spring Firestone W01-358-8048 Air Bags For Impact Absorbtion

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 3B12-325
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    3B12-325 578-93-3-103 Goodyear Air Spring Firestone W01-358-8048 Air Bags For Impact Absorbtion

    3B12-325 Goodyear 578-93-3-103 Air Spring Firestone W01-358-8048 Air Bags For Impact Absorbtion

    3B12-325 Goodyear Technical parameters

    Maximum diameter @ 100 PSIG (inch) 13.1 Design height 13.5
    Maximum height (inch) 15.7 Load (at design height): 40 psig (lbs) 2319
    Maximum stroke (inch) 10.9 Load (at design height): 60 psig (lbs) 3631
    Minimum usable height (inches) 4.8 Load (at design height): 80 psig (lbs) 5017
    Force at 1 inch (lb) stroke @ 80PSI 8030 Natural frequency (@80 psig) (cpm) 77
    Force at a stroke of 3 inches (lbs) @ 80PSI 7340 Isolation percentage at mandatory frequency 400 CPM 95.9
    Force at maximum stroke @ 80PSI (pounds) 4080 Isolation percentage at mandatory frequency 800 CPM 99
    material 2-layer standard line Isolation percentage at mandatory frequency 1500 CPM 99.7
    Port offset of blind hole nut centerline (inches) 2.88 Blind nut center (inch) 6.2

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 157.5 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 157.5 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 73 mm

    Cover Plate

    Top Cover Plate Diameter: 228.6 mm

    Bottom Cover Plate Diameter: 228.6 mm

    Rubber Bellows

    Rubber Bellows MAX Diameter: 330 mm

    Rubber Bellows Natural Diameter : 300 mm

    The Working Stroke : MIN 120 mm to MAX 457 mm

    Maximum Height : 457 mm

    Minimum Height :120 mm

    Stroke Height : 179mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop

    Goodyear 3B12-325 Cross others OEM

    Flexmember 578 93 2 325;
    Flexmember 578-93-2-325;
    Flexmember 578932325

    Goodyear Parts NO.: 3B12-325;

    Goodyear Flexmember Parts NO.: 578-93-3-103 ;
    Goodyear Parts NO.:3B12 325;

    Goodyear Flexmember Parts NO.:578 93 3 103;
    Goodyear Parts NO.:3B12325
    Goodyear Flexmember Parts NO.:578933103
    Firestone Parts NO.: W01-358-8048;
    Firestone Parts NO.: W01 358 8048;
    Firestone Parts NO.: W013588048
    Contitech Parts NO.: FT 430-32 CI 1/4 NPT;
    Contitech Parts NO.:FT 430 32 CI 1/4 NPT;
    Contitech Parts NO.:FT430 32 CI 1/4 NPT;

    Number of top plate holes / studs: 2
    Top plate diameter: 9
    Top plate C to C diameter: 6.2 inch
    Base plate hole bolt Qyt: 2
    Base plate diameter: 9 inch
    Diameter of base plates C to C: 6.2 inch
    Base plate part number:
    Base plate alignment: parallel
    Bumper: no
    bracket:
    Minimum height: 4.8 inch
    Maximum height: 18 inch

    Other kinds of goodyear air springs:

    Goodyear Air Spring OE NO. Goodyear Air Spring OE Bellows NO. Goodyear order NO. Bumper or not Goodyear Air Spring OE NO.
    3B12-321 57893232100000 20112849 Y 3B12-321
    ENIDINE YI-3B12-321 57893232100019 20112990 Y ENIDINE YI-3B12-321
    3B12-322 57893232200000 20118920 Y 3B12-322
    3B12-322 Bellows Air Spring 3B12-322 20118921 N 3B12-322 Bellows Air Spring
    3B12-323 57893232300000 20118922 Y 3B12-323
    3B12-323 Bellows Air Spring 3B12-323 20118923 N 3B12-323 Bellows Air Spring
    3B12-324 57893232400000 20113782 Y 3B12-324
    3B12-324 Bellows Air Spring 3B12-324 20137951 N 3B12-324 Bellows Air Spring
    3B12-325 57893232500000 20118924 Y 3B12-325
    3B12-325 Bellows Air Spring 3B12-325 20118925 N 3B12-325 Bellows Air Spring
    ENIDINE YI-3B12-325 57893232500018 20118926 Y ENIDINE YI-3B12-325
    ENIDINE YI-3B12-325 57893232500019 20118927 Y ENIDINE YI-3B12-325
    3B12-326 57893232600000 20118928 Y 3B12-326
    3B12-326 Bellows Air Spring 3B12-326 20118929 N 3B12-326 Bellows Air Spring
    ENIDINE YI-3B12-326 57893232600018 20118931 Y ENIDINE YI-3B12-326
    ENIDINE YI-3B12-326 57893232600019 20118930 Y ENIDINE YI-3B12-326
    3B12-327 57893232700000 20132717 Y 3B12-327
    3B12-327 3B12-327 20132718 N 3B12-327
    3B12-328 57893232800000 20132490 Y 3B12-328
    3B12-328 Bellows Air Spring 3B12-328 20132491 N 3B12-328 Bellows Air Spring
    3B12-328 WATSON & CHALIN AS0019 57893232800077 20215646 Y 3B12-328 WATSON & CHALIN AS0019
    3B12-329 57893232900000 20132492 Y 3B12-329
    3B12-329 Bellows Air Spring 3B12-329 20132493 N 3B12-329 Bellows Air Spring
    3B12-329 WATSON & CHALIN AS0048-2G 57893232900077 20215647 Y 3B12-329 WATSON & CHALIN AS0048-2G
    3B12-330 57893233000000 20130960 Y 3B12-330
    3B12-330 57893233000004 20130961 Y 3B12-330
    3B12-334 57893233400000 20156850 Y 3B12-334
    3B12-334 3B12-334 20156851 N 3B12-334
    3B12-334 FOR MDC 57893233400055 20551236 Y 3B12-334 FOR MDC
    3B12-335 57893233500000 20141253 Y 3B12-335
    3B12-335 Bellows Air Spring 3B12-335 20141254 N 3B12-335 Bellows Air Spring
    3B12-336 HENDRICKSON HEBRON 004645 57893233600000 20141257 Y 3B12-336 HENDRICKSON HEBRON 004645
    3B12-336 HENDRICKSON HEBRON 004645 57893233600004 20141258 Y 3B12-336 HENDRICKSON HEBRON 004645
    3B12-337 57893233700000 20156098 Y 3B12-337
    3B12-337 Bellows Air Spring 3B12-337 20156099 N 3B12-337 Bellows Air Spring
    3B12-338 57893233800000 20156259 Y 3B12-338
