1B8-560 Goodyear AIR SPRING Cross OEM:

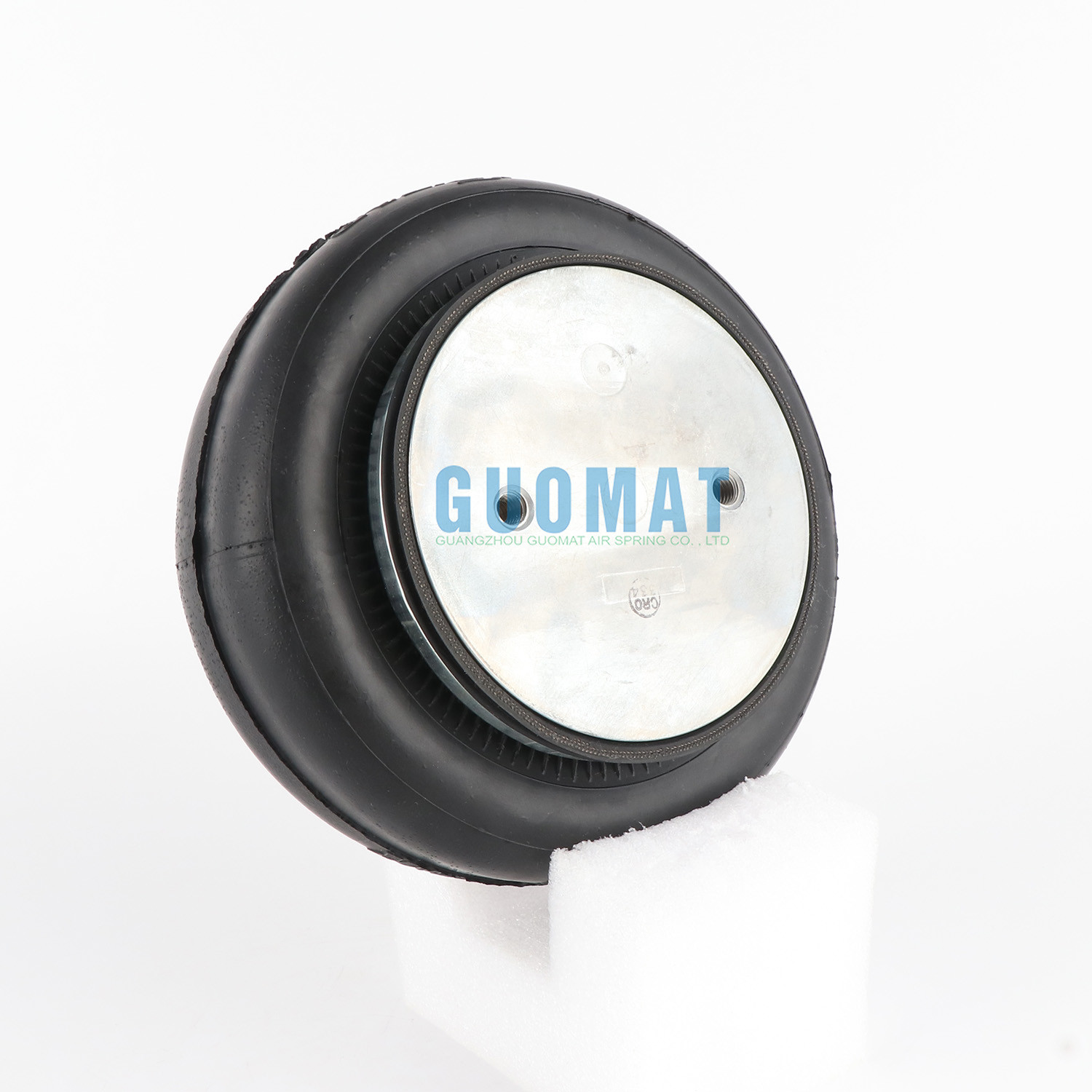

SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-560

refet to Firestone Wo1-358-7598; 116B1116B-1
refet to Firestone W01-358-7598, W013587598, W01-358-7598,

refet to Contitech FS 120-12 CI 1/4 NPT

76289, FS120-12CI1/4NPTCA
Comparison: W013587598, W01-358-7598, WO13587598, WO1-358-7598

About Goodyear air springs:

Goodyear air springs are highly durable, sophisticated and cost-effective for a variety of drive and vibration isolation applications. Goodyear air springs feature a time-tested design that combines fabric-reinforced cord or natural rubber flexible member construction with corrosion-resistant end iron plate cover retainers to provide superior quality and performance. As corrective actuators, Goodyear air springs can provide linear or angular motion.

Goodyear offers a variety of air spring and air shock absorber types to suit your actuation or isolation needs. Single, double and triple convolution bellows, rolling cam and sleeve types are available in a variety of sizes, and end retainer styles need to fit your specific installation.

These air springs (air shock absorbers) offer a favorable stroke-to-compression height ratio compared to cylinder or steel springs, and they can accept various drive media such as air, water, nitrogen or other liquids. As isolators, Goodyear air springs can effectively reduce the adverse effects of vibration. They can both isolate vibrations and adjust the load height. Allows for consistent vibration isolation under different loads as the air pressure varies.

Goodyear 1B8-560 Specifications and Technical Data

Nut/blind nut

Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fitting
Air hole/air inlet: 1 / 4-18NPTF
Screw center distance between air hole and nut: 35 mm

Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm

Rubber bellows
Maximum diameter of rubber bellows: 240 mm
Natural diameter of rubber bellows: 225 mm
Working stroke: minimum 60 mm to maximum 180 mm
Maximum height: 180 mm
Minimum height: 50 mm
Stroke height: 120mm

Bumper block/bumper block
No bumper block

Belt loop/Belt loop
With belt loop: There is no belt loop

Airmount / Airstroke
(2) 2.75 center distance
3 / 8-16UNC, 1/4 "NPT AIR INLET
Air Springs from ITT Enidine Inc.
Single Convolute Bellow Air Spring YI-1B8-560

Maximum stroke: 3.20 inches
System natural frequency: 2.33 Hz
Height range: 4 to 6-1 / 2 inches
100 psi diameter: 9.4 inches
Spring style: single-turn curved surface type
End plate diameter: 5 inches
Force at 100 psi maximum stroke: 1600 lbs
Center distance between tapped holes: 2-3 / 4 inches
Load range at 100 psi: 1900 to 3300 pounds
Air port thread standard: UNC
Bumper Type: No
Air port thread diameter: 1/4 inch
Air port thread type: 1/4 UNC
