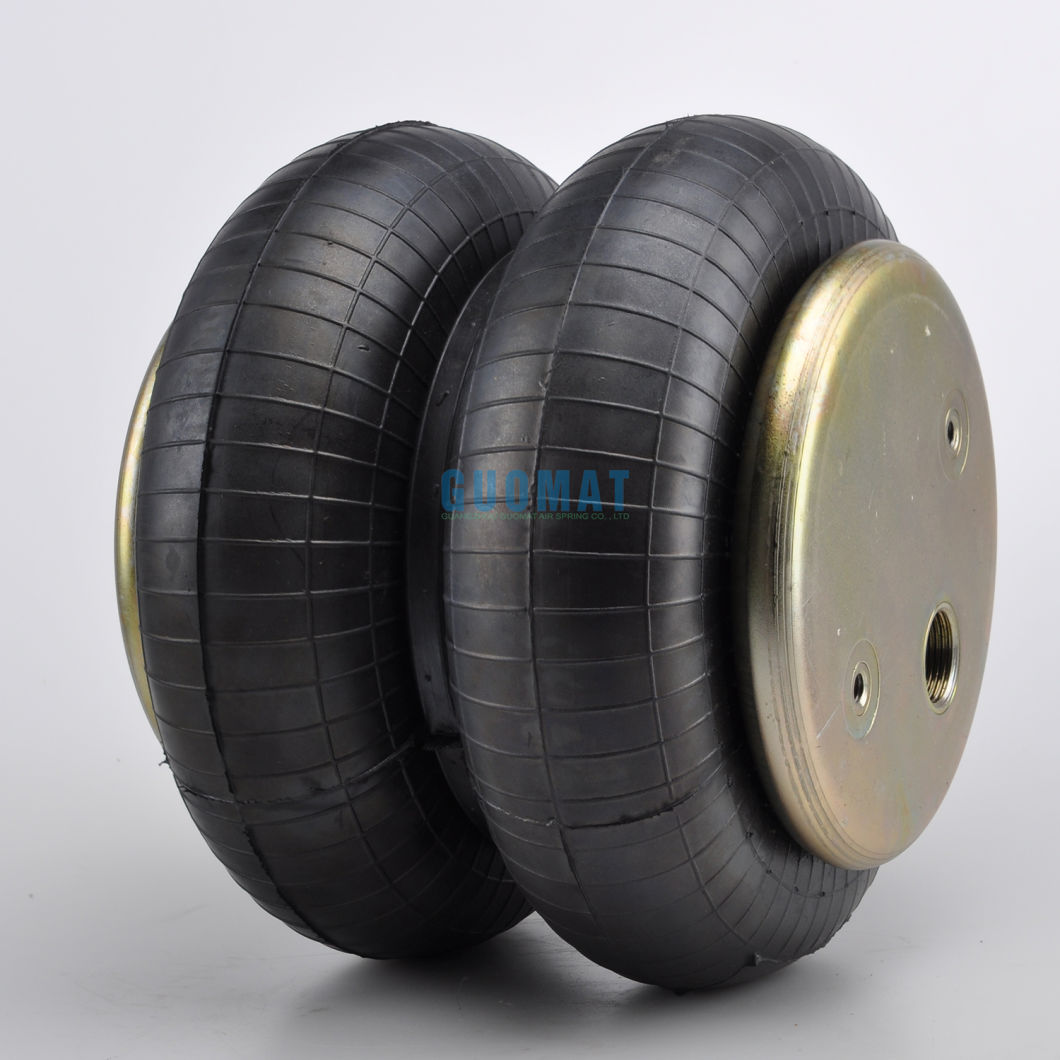

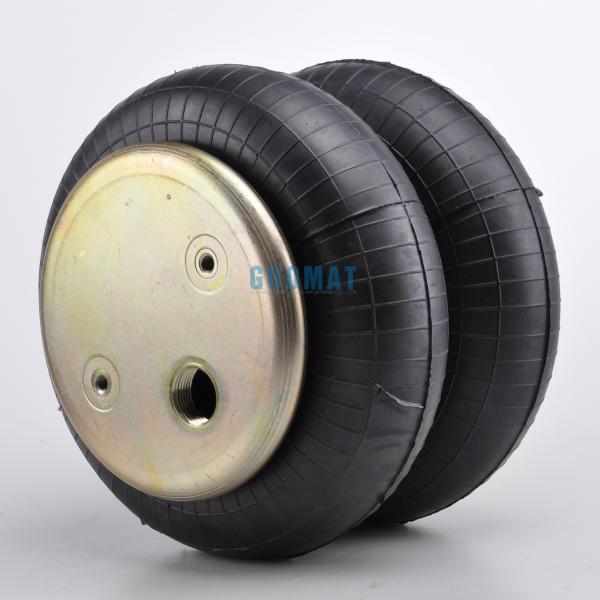

    FD200-19319 Contitech Air Bags W013586900 Air Spring Actuator 16Unc

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B6900
    • Product Details
    • Company Profile

    FD200-19319 Contitech Air Bags W013586900 Air Spring Actuator 16Unc

    Fd 200-19 319 Contitech Air Spring W013586900 Air Spring Actuator with 3/4 NPT Air Inlet


    OEM Original Equipment Manufacturer:

    BELLOW NumbersCOMPLETE Numbers
    CONTITECH FD 20019 S / 895 N
    CONTITECH FD20019S / 895 N
    Firestone : W01-358-6900
    Firestone : W01 358 6900
    Firestone : W013586900
    FIRESTONE FLEX 20Contitech : FD 200-19 320
    Contitech : FD 200 19 320
    Contitech : FD200 19 320
    FIRESTONE W01-358-0138
    FIRESTONE W01 358 0138
    FIRESTONE W013580138
    Goodyear : 2B9-200
    Goodyear :2B9 200
    Goodyear : 2B9-202
    Goodyear : 2B9-216
    095-0009Hendrickson : S8768/458433
    GOODYEAR 2B 9-200: 578423202
    578923202Triangle: 6325
    Triangle: 4320
    PHOENIX 2B 12R
    PHOENIX 2B12R
    Dayton : 3546910
    PIRELLI T20 86600Leland : Sc2011
    AIRKRAFT 114001Navistar : 554783C1
    Dina : A812719/AZ812719
    SAF Holland : 57006910
    Trailers De : 133128
    Brake & Wheel : M3501
    Ridewell : 1003586910C
    Tuthill : 1371
    Watson&Chalin : AS-0001/AS-0156G



    Specifications and Technical Data of W01-358-6900

    Firestone part number: W01-358-6900 / W013586900 / W01 358 6900
    Compressed height: 3.12
    Number of top plates: 3079
    Top cover diameter: 6.31 inches / 160 mm
    Number of bottom pistons: 3090
    Bottom cover diameter: 6.31 inches / 160 mm
    Screw center distance: 89 mm
    The distance between the nuts is 44.5 mm
    Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
    Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
    Rubber bellows MAX diameter: 251 mm
    Rubber bellows natural diameter 224 mm
    Working stroke: up to 260 mm to MIN 75 mm
    Air vent / air inlet: 3/4 NPTF
    Firestone Corrugated Tube Number: 20
    Goodyear part number: 2B9-200 / 2B9200 / 2B9 200
    Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202
    Number of grids: 1371
    Hendrickson Trailer No.: S-8768
    Hendrickson Truck Number: 45843-3
    Ridewell number: 1003586910C
    Triangle part number: 4320
    Triangle bellows number: 6325
    Watson&Chalin#:AS-0001

    Description Assembly Order No.
    Blind nuts, 1/4 NPT W01-358-6910
    Blind nuts, 1/4 NPT, bumper W01-358-6911
    Blind nuts, 3/4 NPT W01-358-6900
    Blind nuts, 3/4 NPT, bumper W01-358-6901
    Countersunk steel bead rings,
    13/4 bolts, nuts, washers W01-358-6923
    Rubber bellows only W01-358-0138


    The composition of convoluted air springs

    Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
    Waist ring: Stable part skins to prevent deformation
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
    Flexible bellows: The main part, can lock the air and flexible activities up and down
    Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside


    How to Calculation For Pneumatics, Such as

    • Mass To Be Lifted 2000 M (Kg)
    • Desired Stroke 190 S Min (Mm)
    • Number Of Air Springs 4 N
    • Minimum Installation Height 190 H Min (Mm)
    • Minimum Installation Diameter 500 D (Mm)
    • Air Pressure 6 P (Bar)

    Fd 200-19 319 Contitech Air Spring W013586900 Air Spring Actuator with 3/4 NPT Air Inlet Rubber Bellows 578923202
    Fd 200-19 319 Contitech Air Spring W013586900 Air Spring Actuator with 3/4 NPT Air Inlet Rubber Bellows 578923202
    Fd 200-19 319 Contitech Air Spring W013586900 Air Spring Actuator with 3/4 NPT Air Inlet Rubber Bellows 578923202

    Other kinds of conitech air springs:


    FS 120-9 3/4 M8FD 200-19 450FD 330-22 500FD 40-10
    FS 120-9 1/4 M8FD 200-19 448FD 330-22 313FD 70-13
    FS 200-10 3/4 M8FD 200-19 506FD 330-22 337FD 120-17
    FS 200-10 4FD 200-19 510FD 330-22 318FD 120-17
    FS 330-11 474FD 200-22 524FD 330-22 346FD 120-17
    FS 330-11FD 200-19 P04FD 330-22 364FD 120-17
    FS 330-11 468FD 120-20FD 330-22 365FD 200-22 510
    FS 330-14FD 120-20 509FD 330-22 366FD 200-22 706
    FS330-11 647FD 120-20 509FD 330-22 367FT330-29 546
    FS 40-6 1/8 M8FD 200-25FD 330-22 331FT330-29 546
    FS120-10FD 200-25 427FD 330-22 368FT330-29 547
    FS 70-7 1/4 M8FD 200-25 454FD 330-22 363FT330-29 430
    FD200-19 504FD 200-25FD 330-22 327FT330-29 431
    FD200-19FD 200-19FD 330-22 343FT330-29 432
    FD 200-19 724FD 200-25 453FD 330-22 334FT330-29 433
    FD 200-19 539FD 200-25 426FD 330-30-371FT330-29 469
    FD 200-19 505FD 200-25 427FD 331-26-514FT330-29 466
    FD 200-19 319FD 200-25 463FD 331-26-541FT330-29 498
    FD 200-19 310FD 200-25 429FD 331-26-480FT412-323
    FD 200-19 315FD 200-25 507FD 530-35 545FT210-32
    FD 200-19 362FD 200-25 511FD 530-35 543FD 330-22 364
    FD 200-19 320FD 200-25 717FD 530-35 530
    FD 200-19 504FD 530-22 321FD 530-35 545
    FD 200-19 452FD 330-22 363FD 530-35 720
    FD 200-19 499FD 330-22 472FD 120-17 509
    FD 200-19 315FD 330-22 471FD 40-10
