    FD70-13 Contitech Air Bellows M8 2B7070 Industrial Air Bags G1/4

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949, ISO9001
    Delivery Time : 3-8 Working Days
    Model Number : 2B7070
    • Product Details
    • Company Profile

    FD70-13 Contitech Air Bellows M8 2B7070 Industrial Air Bags G1/4

    Fd70-13 Contitech Air Spring Industrial Air Bags Single Convoluted For Vibrating Screen


    OEM COMPLETE Number
    FD 70-13 1/4 M8
    fd 70-13 contitech
    fd 70-13 1/4 m8
    fd 70-13
    fd 70 13
    fd 70-13 ci
    contitech fd 70-13 ci
    continental fd 70-13 ci
    Firestone Style :25(255-1.5)
    Firestone No.:W01-M58-6105
    Manufacturer Original-part no.
    Model Gigant 196027

    Firestone No.:W01 M58 6105

    Firestone No.:W01M586105

    AIRSUSTECH:2B7070


    Fd 70-13 Specifications and Detail Technical Parameters


    Specifications

    Weight 1,4 kg

    G1/4: max. 25 Nm

    M8: max. 25 Nm


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

    Screw Center Distance of Top Cover Plate : 44.5 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

    Screw Center Distance of Bottom Cover Plate : 44.5 mm

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/4

    Cover Plate

    Top Cover Plate Diameter (Width): 105 mm

    Bottom Cover Plate Diameter (Width): 105 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter : 146 mm

    Rubber Bellows MAX Diameter : 165 mm

    Installation Space Diameter : 180 mm

    Rubber Bellows Natural Height : 162 mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    Technical dat
    Weight :1.6kg
    Design height :152mm
    Deflection(Hight min) :65mm
    Deflection(Hight max) :175mm
    Working stroke :110mm
    Loading cap.at 3.0bar :2.88KN
    Loading cap.at 7.0bar :7.25KN


    CONTITECH PART NO.FIRESTONE PAGE PART NO.CONTITECH PART NO.FIRESTONE PAGE PART NO.
    FD 120-17 3/4 M8W01-358-7325FD 412-18 P01W01-R58-4073
    FD 138-18 1/2 M10W01-R58- 4055FD 412-18SWO1-R58- 4044
    FD 138-18SW01-R58 4045FD 614-26 12 M10W01-R58 4064
    FD 200-19 1/4 M8W01-M58-7679FS 138-8W01-R58 4054
    FD 200-19 713W01-358-7795FS 330-11 474W01-358 -7008
    FD 200-19 PO2W01-M58-7756FS 44-10W01-R58-4051
    FD 200-19 P04W01-M58 -7894FS 44-5W01-R58 4050
    FD 200-19SW01-095. 0009FS44-15W01-R58-4035
    FD 200-22 1/4 M10W01-M58-7888FT 138-26WO1-R58- 4056
    FD 200-25 1/4 M10W01-M58 -6891FT 210-32 1/2 M10WO1-R58 4059
    FD 200-25 1/4 M8W01-M58-6183FT 330-29 790W01-358 -8042
    FD 210-22 1/2 M10W01-R58-4058FT 412-32 12 M10W01-R58- 4062
    FD 330-22 1/1 M8W01-358-7180FT 412-32 P01W01-R58- 4037
    FD 330-22 318W01-358-7403FT 614-36 1/2 M10W01-R58- 4065
    FD 330-22 M12X1.5 M8W01-M58 -6851
    FD 412-18 1/2 M10W01-R58- 4061

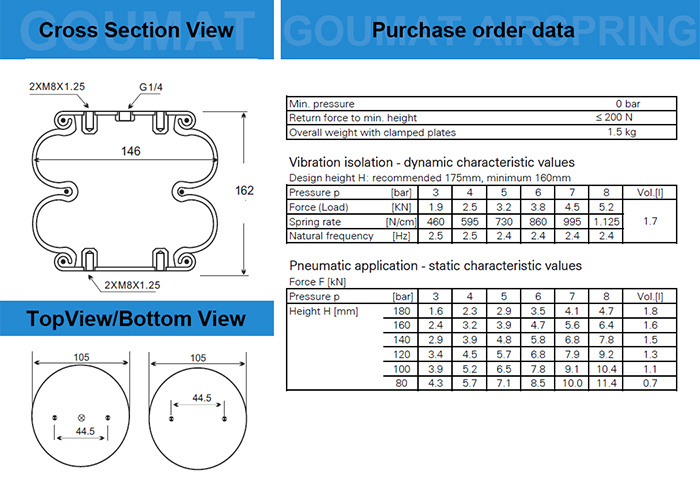

    The drawing and data of AIRSUSTECH 2B7070 air spring:


    Fd70-13 Contitech Air Spring Industrial Air Bags Single Convoluted Air Spring for Vibrating Screen

    Fd70-13 Contitech Air Spring Industrial Air Bags Single Convoluted Air Spring for Vibrating Screen
    Fd70-13 Contitech Air Spring Industrial Air Bags Single Convoluted Air Spring for Vibrating Screen
    Fd70-13 Contitech Air Spring Industrial Air Bags Single Convoluted Air Spring for Vibrating Screen
