    160mm Double Convoluted Air Spring W01-358-6910 Contitech Air Spring FD200-19

    Ask Lasest Price
    Supply Ability : 1000pcs/week
    Payment Terms : T/T, Western Union,Paypal or Others
    Brand Name : AIRSUSTECH
    Certification : ISO/TS16949:2009
    Delivery Time : 3-8 Working Days
    Model Number : 2B6910
    • Product Details
    • Company Profile

    160mm Double Convoluted Air Spring W01-358-6910 Contitech Air Spring FD200-19

    160mm Double Convoluted Air Spring W01-358-6910 Contitech Air Spring FD200-19



    Specifications and Technical Data of 2B6910

    Compressed Height: 3.12 / 79mm
    Top Cover Plate Diameter: 6.31 inches / 160mm
    Bottom Cover Plate Diameter: 6.31 inches / 160mm
    Screw Center Distance : 89 mm
    Distance Gas Hole Between Nut 44.5 mm
    Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
    Rubber Bellows MAX Diameter: 251 mm
    Rubber Bellows Natural Diameter 224 mm
    The Working Stroke : MAX 260 mm to MIN 75 mm
    Gas Hole / Air inlet : 1/4 NPTF
    Firestone Bellows Number:20
    Goodyear Part Number:2B9-201/ 2B9201 / 2B9 201
    Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
    OEM Original Equipment Manufacturer:

    ReferenceOEM
    GUOMAT NO.2B6910
    FirestoneW01-358-6910 / W013586910/ W01 358 6910
    ContitechFD 200-19 310 / FD 200 19 310 / FD 20019 310
    Goodyear2B9-201 / 2B9 201 / 2B9201
    TaurusKF218-6902
    Granning4848
    HendricksonS2630
    R&STruck1027505
    Ridewell1003586902C
    Suspensions2000-42
    Watson&ChalinAS-0002


    The composition of convoluted air springs

    Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
    Waist ring: Stable part skins to prevent deformation
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
    Flexible bellows: The main part, can lock the air and flexible activities up and down
    Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
    The connotation of screw hole: fixed as the installation of air spring in car or equipment
    Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside
    Description Assembly Order No.
    Blind nuts, 1/4 NPT W01-358-6910
    Blind nuts, 1/4 NPT, bumper W01-358-6911
    Blind nuts, 3/4 NPT W01-358-6900
    Blind nuts, 3/4 NPT, bumper W01-358-6901
    Countersunk steel bead rings,
    13/4 bolts, nuts, washers W01-358-6923
    Rubber bellows only W01-358-0138

    How to Calculation For Pneumatics, Such as

    • Mass To Be Lifted 2000 M (Kg)
    • Desired Stroke 190 S Min (Mm)
    • Number Of Air Springs 4 N
    • Minimum Installation Height 190 H Min (Mm)
    • Minimum Installation Diameter 500 D (Mm)
    • Air Pressure 6 P (Bar)


    The drawing and data of GUOMAT 2B6910 air spring:


    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring

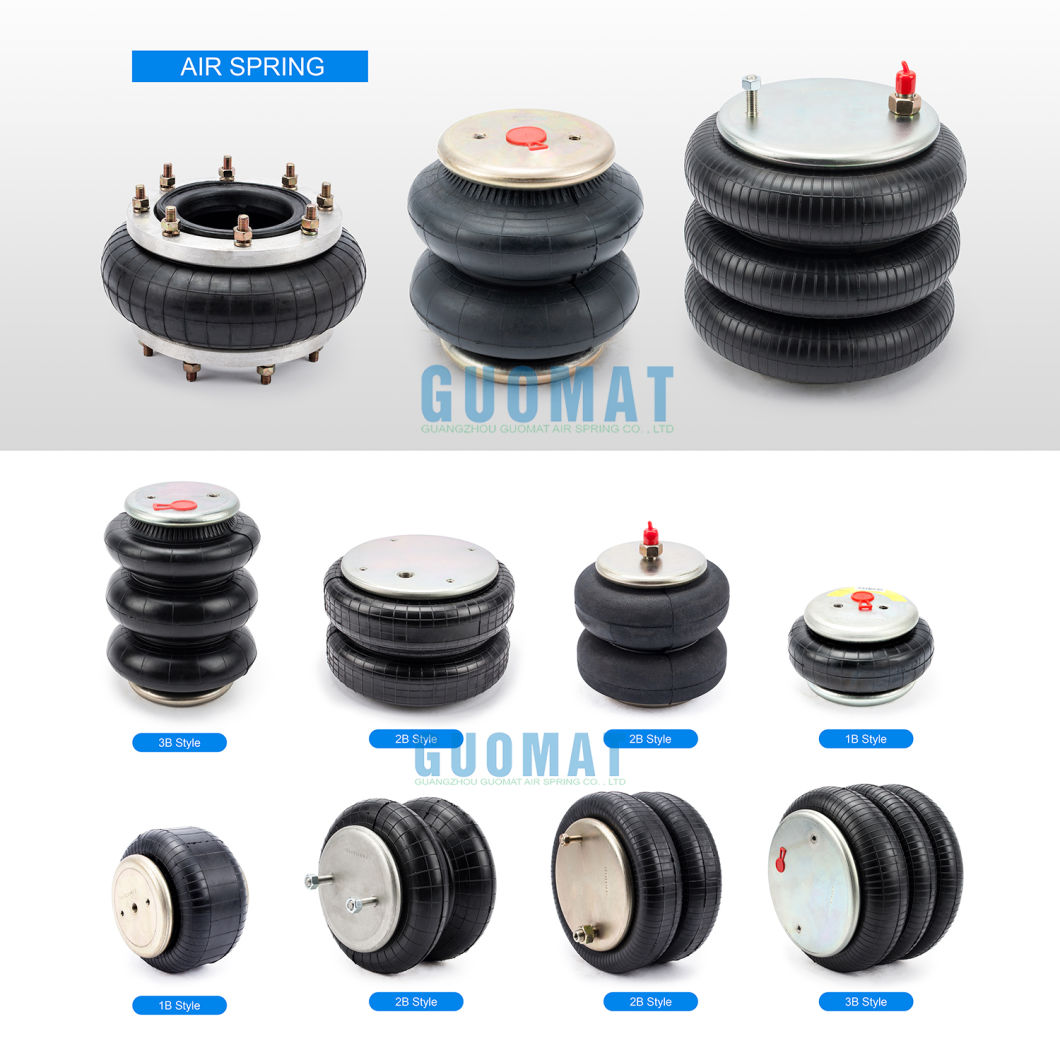

    Other kinds of GUOMAT NO.
    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring

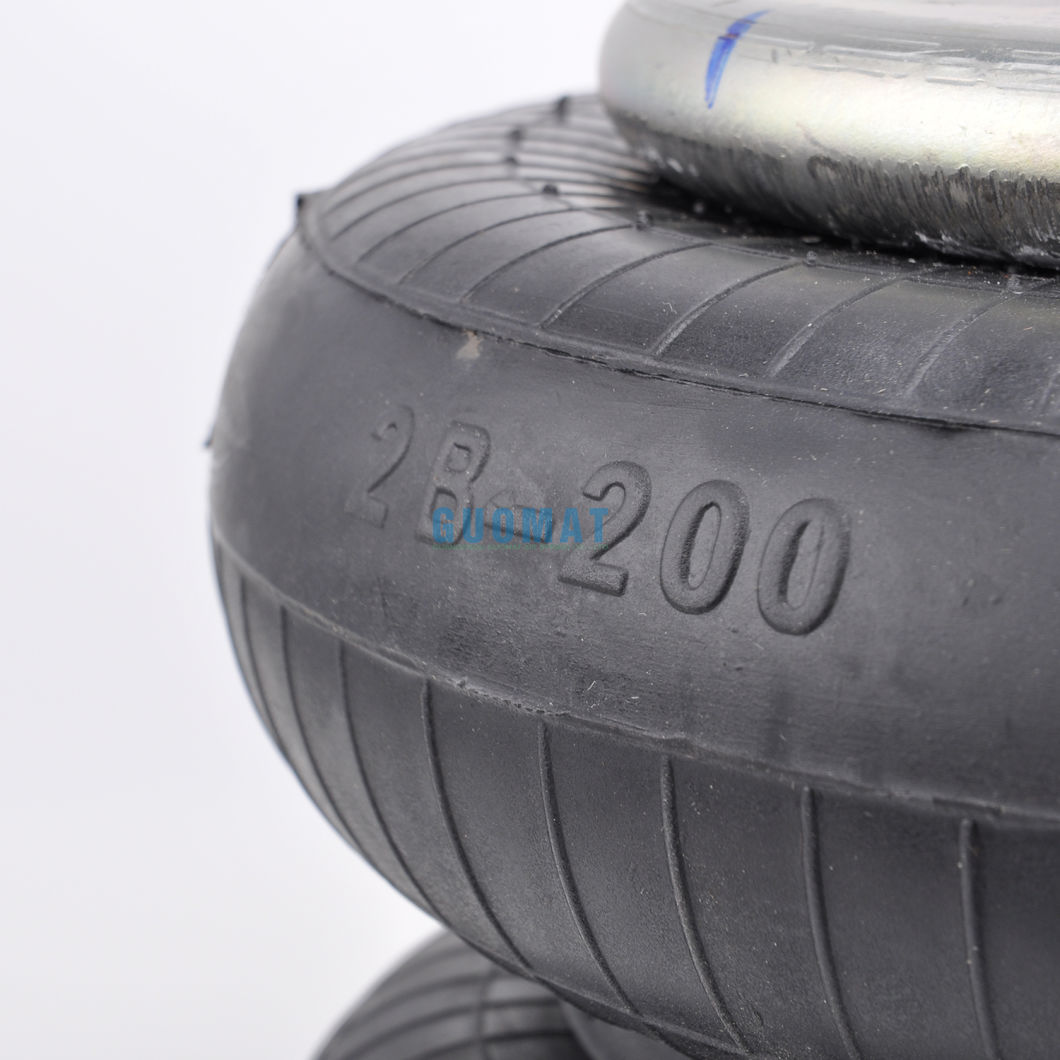

    Details pictures of air spring 2B6910:
    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring
    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring
    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring
    GUOMAT air spring production line:
    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring
    GUOMAT 2018 Shanghai Frankfurt Auto Show:
    Fd200-19 Contitech W013586910 Firestone Double Convoluted Air Bags Contitech Air Spring Industrial Air Spring
