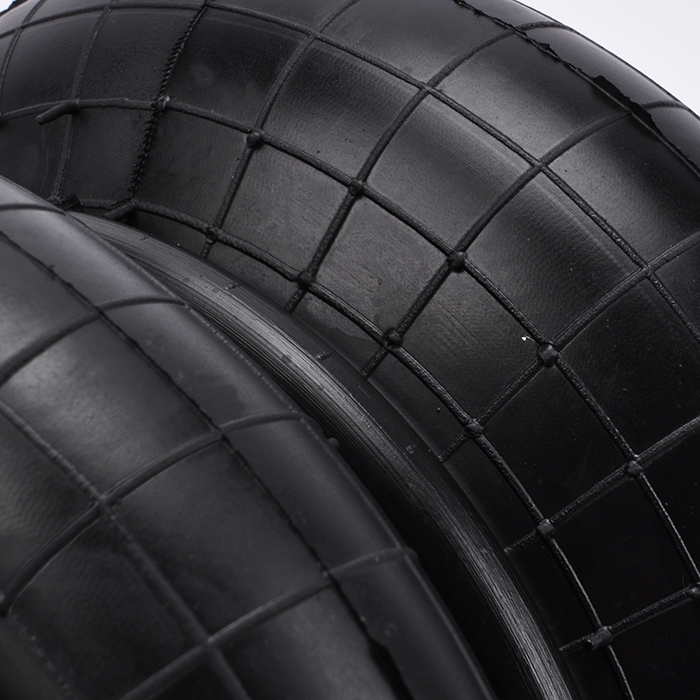

    2B 220 Air Spring Bellows 8NPT Double Convoluted Air Bag 2B5231

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B5231
    Certification : ISO/TS16949, ISO9001
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    2B 220 Air Spring Bellows 8NPT Double Convoluted Air Bag 2B5231

    Air Spring Bellows 2B5231 Industrial Spring Rubber Bellows No. 2B 220


    2B5231Cross others OEM


    OEM References NumbersReferences Numbers

    GUOMAT :2B5231
    Firestone : W01-358-5231

    Triangle : 6332/4453
    Contitech : FD 200-25 453Leland : Sc2072
    Contitech :: 161336SAF Holland : 57006927
    Goodyear : 2B9-218Tuthill Technology : 1290601
    Goodyear : 578923206/2Reyco : 12906-01


    Airspring Supplier: ContiTech
    Reference: 161336
    Competitor / Supplier Number: FD20025453
    Airspring Supplier: Goodyear
    Reference: 578923206
    Competitor / Supplier Number: 2B9218
    Airspring Supplier: Triangle
    Reference: 6332
    Competitor / Supplier Number: 4453
    Suspension Supplier: Leland
    Competitor / Supplier Number: SC2072
    Suspension Supplier: SAF Holland
    Competitor / Supplier Number: 57006927
    Suspension Supplier: Tuthill Technology
    FSIP OEM: W017556927
    Suspension Supplier: Tuthill Technology
    Competitor / Supplier Number: 1290601
    Firestone trimmed: w013586927


    GUOMAT 2B5231 Technical parameters

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/8-16UNC
    Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF
    Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate
    Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
    Screw Center Distance of Bottom Cover Plate : 86 mm

    Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

    Cover Plate
    Top Cover Plate Diameter: 160 mm / 6.31 inches
    Bottom Cover Plate Diameter: 160 mm / 6.31 inches

    Rubber Bellows
    Rubber Bellows MAX Diameter: 235 mm
    Rubber Bellows Natural Diameter :205 mm
    The Working Stroke : MAX 280 mm to MIN 85 mm
    Maximum Height : 280 mm
    Minimum Height :85 mm / 3.3inches
    Stroke Height : 195mm

    Bumper block / Buffer block
    With Bumper Block Or Without Bumper Block

    Girdle Hoop / Girdle Ring
    With Girdle Hoop :One Pieces of Girdle Hoop


    Details Technical data at the below photo
    Vibration isolation - dynamic characteristic values

    Design height H: recommended 10 inch, minimum 9.06 inch

    Pressure p [psi]

    40

    60

    80

    100

    120

    Vol. V [in.3]

    Force (Load) [lbf]

    1230

    1890

    2540

    3190

    3840

    Spring rate [lbf/in.]

    389

    552

    741

    932

    1080

    538

    Natural frequency [Hz]

    1.8

    1.8

    1.7

    1.7

    1.7



    Pneumatic application - static characteristic values Force F [kN]

    Force F [lbf]

    Pressure p [psi]

    40

    6
    0

    80

    100

    120

    Vol. V [in.3]

    Height H [in.]

    11.0

    948

    1470

    2000

    2550

    3110

    560

    10.0

    1180

    1780

    2430

    3060

    3720

    540

    9.0

    1370

    2070

    2780

    3510

    4240

    510

    8.0

    1530

    2280

    3070

    3850

    4640

    470

    7.0

    1670

    2490

    3340

    4200

    5030

    440

    6.0

    1790

    2680

    3570

    4470

    5360

    400

    5.0

    1880

    2800

    3750

    4700

    5570

    350

    4.0

    1960

    2910

    3910

    4900

    5750

    300


    The drawing and data of GUOMAT 2B5231 air spring:


    2B 220 Air Spring Bellows 8NPT Double Convoluted Air Bag 2B5231

    2B 220 Air Spring Bellows 8NPT Double Convoluted Air Bag 2B52312B 220 Air Spring Bellows 8NPT Double Convoluted Air Bag 2B5231
