    M/31142 Convoluted Air Spring 310mm Norgren Air Bellows Double

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B14-1/2"
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    M/31142 Convoluted Air Spring 310mm Norgren Air Bellows Double

    M/31142 Norgren Convoluted Air Spring Nominal Diameter 14 1/2" x 2 Double Convolutions


    AIRSUSTECH 2B14-1/2" size Replace Norgren M/31142 :


    Nut/ Blind Nut


    Top cover screw (nut) teeth: 4x M10
    Top cover screw center distance: 282 mm
    Bottom cover screw (nut) teeth: 4x M10
    Bottom cover screw center distance: 282 mm

    air hole / air inlet / air connector
    Air vent / air inlet: G1 / 2

    cover plate


    Top cover diameter (width): 310MM
    Bottom cover diameter (width): 310MM

    Rubber bellows


    Rubber bellows MAX diameter: 340 mm
    Working stroke: 75MM- 290 MM
    Maximum height: 290MM
    Minimum height (compression height): 75 mm
    Stroke height: 265 mm
    bumper block / buffer block
    No Bumper Block
    Twisted waist/waist ring
    Belt hoop: a band loop


    AIRSUSTECH 2B14-1/2" Data Replace Norgren M/31142 :


    Manufacturer brand:AIRSUSTECH

    AIRSUSTECH Part NO.:2B 14-1/2"

    14-1/2"AIRSPRING

    Range: M / 31000

    Medium: compressed air
    Port size: G1 / 2
    Operation mode: single action
    Working pressure: 0 ... 8 bar
    Operating temperature: -40 ... 70°C
    Stroke length: 265 mm
    Theoretical power: 61950 N
    Material-Nuts and Screws: Zinc-Chromium Alloy Steel
    Certification-REACH: available on request
    Certification-RoHS compliant: available on request
    Certification-WEEE: NonWEEE
    Classification-eClass 11: 51010390
    Classification-HS Code: 84123100
    Classification-HTS code: 8412310000
    Classification-UNSPCS code: 31251504
    Classification-ISO
    Size-Diameter: 400.0 mm
    Size-height: 125.0 mm
    Size-weight: 8.300 kg
    Size-Unit of Measurement: EA
    Performance-shelf life: 10 years
    Performance-shelf life: 5 years

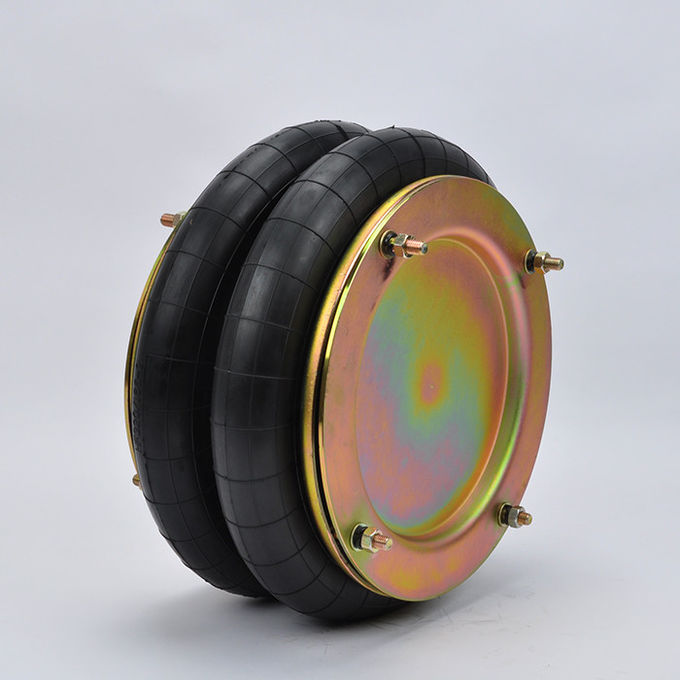

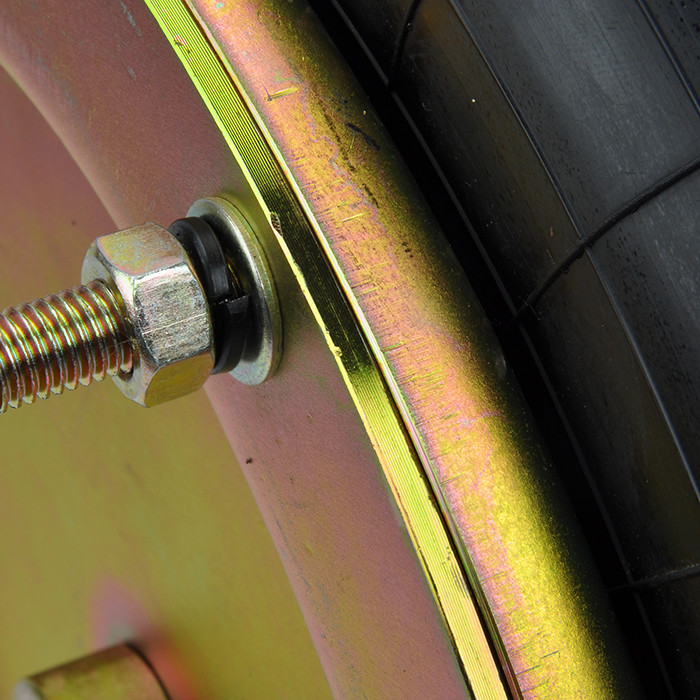

    The photos AIRSUSTECH 2B14-1/2" Replace Norgren M/31142 :


    M/31142 Convoluted Air Spring 310mm Norgren Air Bellows Double


    M/31142 Convoluted Air Spring 310mm Norgren Air Bellows DoubleM/31142 Convoluted Air Spring 310mm Norgren Air Bellows Double
