    M/31162 Double Convoluted Air Spring Bellows Norgren Reduce Vibration

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B16X2
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    M/31162 Double Convoluted Air Spring Bellows Norgren Reduce Vibration

    Convoluted Air Spring Norgren M/31162 Air Bellow 16" Biameter 315mm Stroke Air Inlet G1 / 2


    AIRSUSTECH 2B16X2 Data Replace Norgren M/31162:


    Manufacturer brand:AIRSUSTECH

    AIRSUSTECH Part NO.:2B 16X2

    16X2 AIRSPRING
    LOBES: 2
    ø MAX: 430
    STATIC HEIGHT: 180 MM
    TOTAL STROKE: 243 MM
    MAX ANGLE: 15º
    MAX AXIAL OFFSET: 10 mm
    øC: 283
    ø SPACE ENVELOPES: 445 MM
    LOAD IN daN: 9
    MAX WORK PRESSURE: 8 BAR
    BURST PRESSURE: 25 BAR
    WEIGHT: 6.12 LBS

    DIMENSIONS: 16" X 16" X 4"


    Other quick details of AIRSUSTECH 2B16X2 Replace Norgren M/31162:


    Range: M / 31000

    Material-Nuts and Screws: Zinc-Chromium Alloy Steel

    Medium: compressed air
    Port size: G1 / 2
    Operation mode: single action
    Working pressure: 0 ... 8 bar
    Operating temperature: -40 ... 70°C
    Stroke length: 315 mm
    Theoretical power: 65250 N
    Certification-REACH: available on request
    Certification-RoHS compliant: available on request
    Certification -: ISO
    Classification-eClass 11: 51010390
    Classification-HS Code: 84123100
    Classification-HTS code: 8412310000
    Classification-UNSPCS code: 31251504
    Classification-China ECCN: EAR99
    Size-Diameter: 435.0 mm
    Size-height: 125.0 mm
    Size-weight: 7.600 kg
    Size-Unit of Measurement: EA
    Performance-shelf life: 5 years


    AIRSUSTECH 2B16X2 size Replace Norgren M/31162


    Nut/ Blind Nut


    Top cover screw (nut) teeth: 4x M10
    Top cover screw center distance: 282 mm
    Bottom cover screw (nut) teeth: 4x M10
    Bottom cover screw center distance: 282 mm

    air hole / air inlet / air connector
    Air vent / air inlet: G1 / 2

    cover plate


    Top cover diameter (width): 310MM
    Bottom cover diameter (width): 310MM

    Rubber bellows


    Rubber bellows MAX diameter: 430 mm
    Working stroke: 77 MM- 320 MM
    Maximum height: 320 MM
    Minimum height (compression height): 77 mm
    Stroke height: 155 mm
    bumper block / buffer block
    No Bumper Block
    Twisted waist/waist ring
    Belt hoop: a band loop


    The drawing of AIRSUSTECH 2B16X2 Replace Norgren M/31162:


    M/31162 Double Convoluted Air Spring Bellows Norgren Reduce Vibration

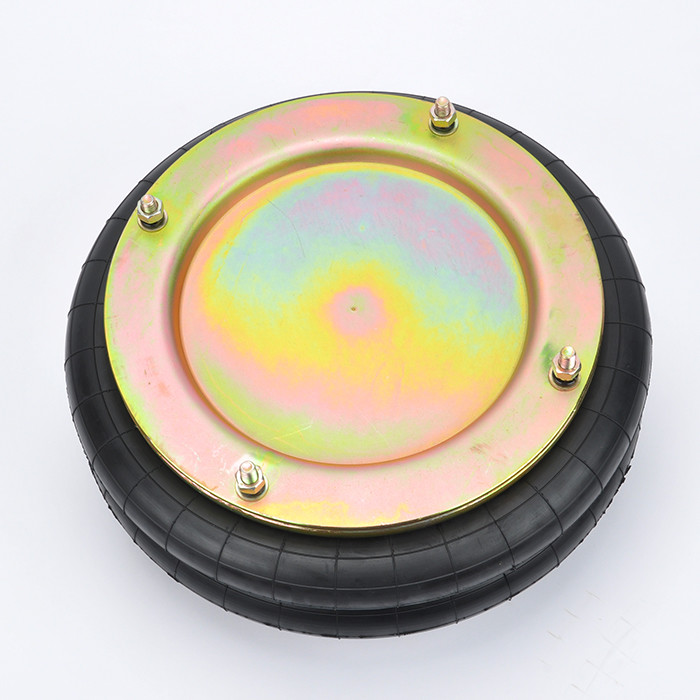

    The photos AIRSUSTECH 2B16X2 Replace Norgren M/31162:

    M/31162 Double Convoluted Air Spring Bellows Norgren Reduce VibrationM/31162 Double Convoluted Air Spring Bellows Norgren Reduce Vibration
